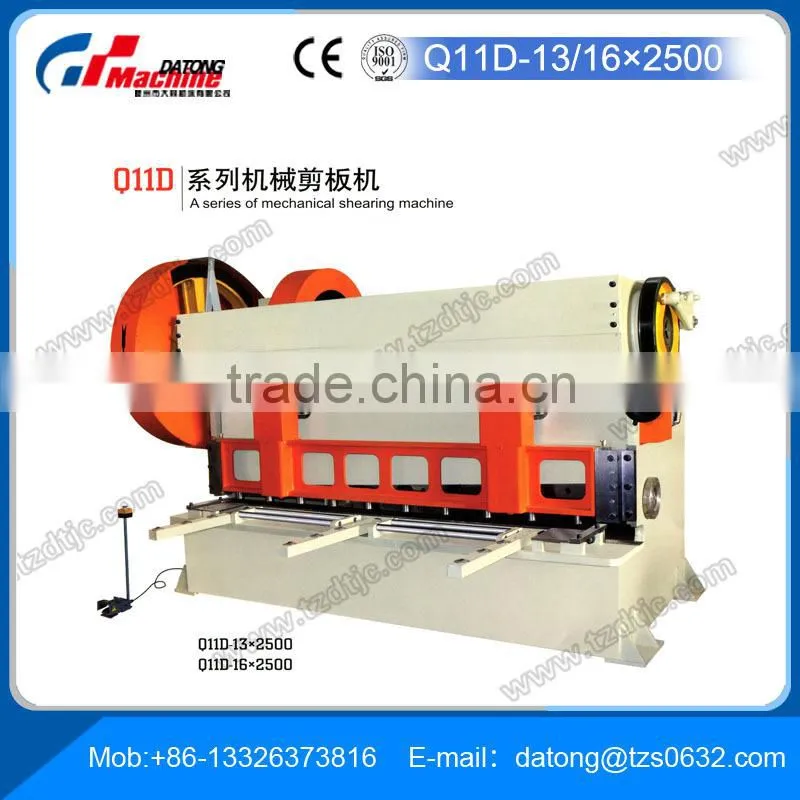

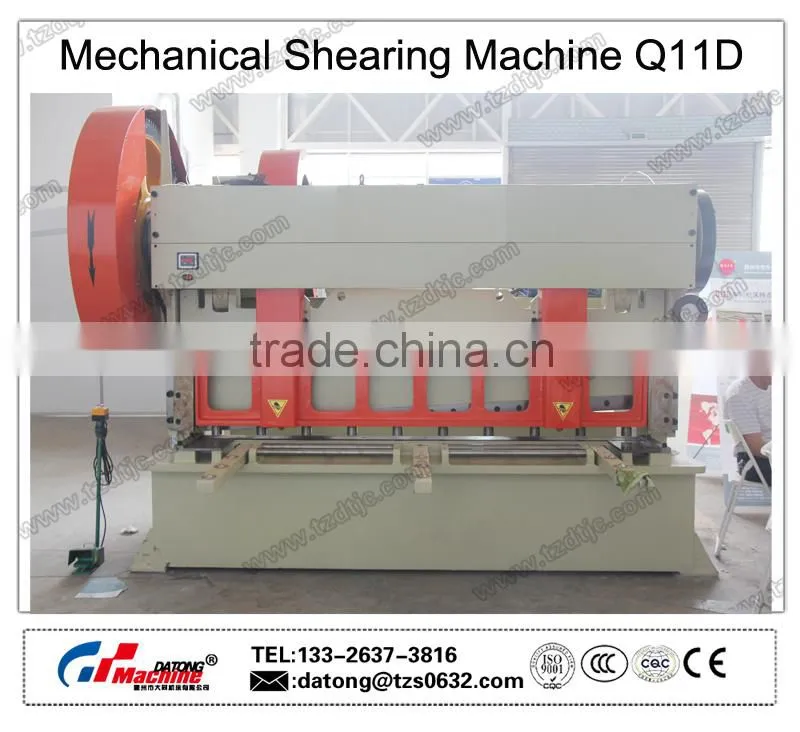

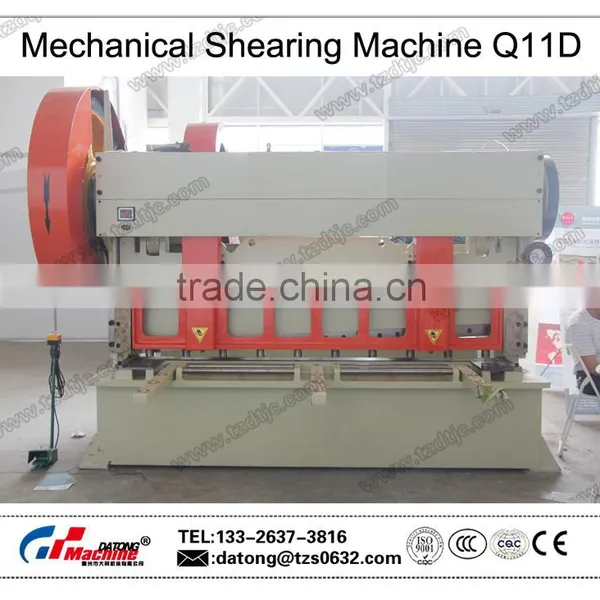

Mechanical Sheet Metal Shearing Machine Q11D-16*2500

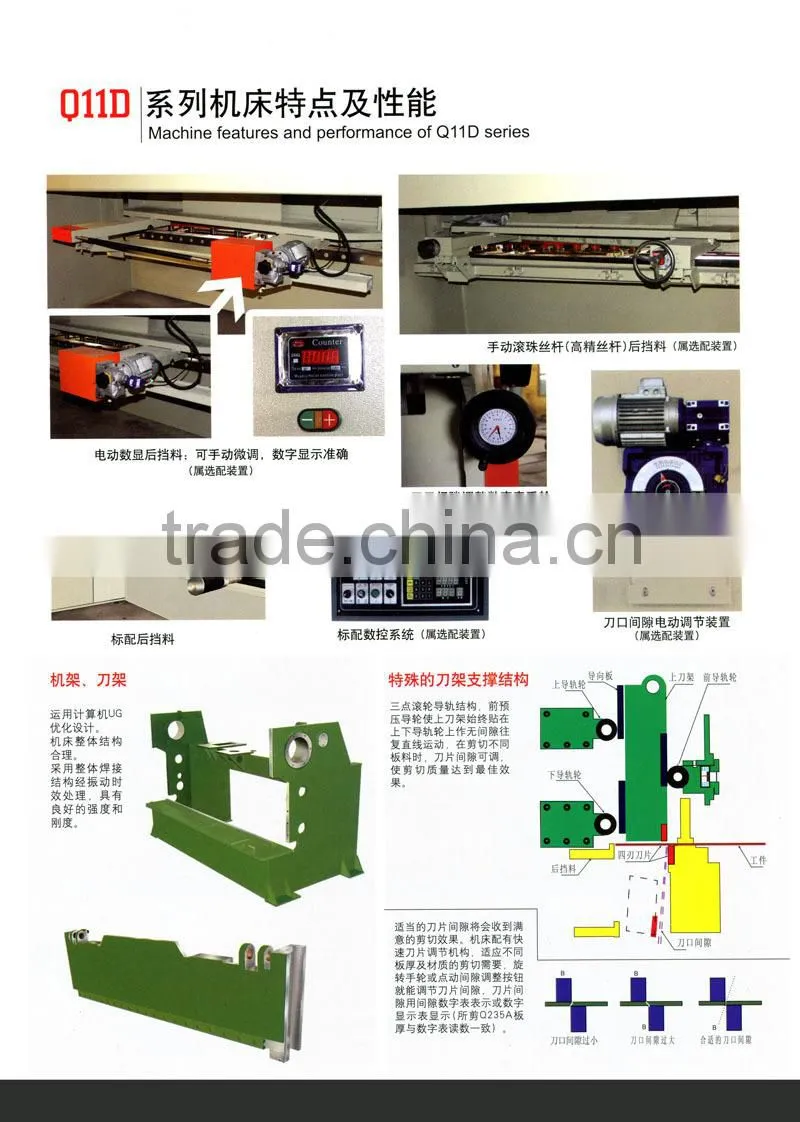

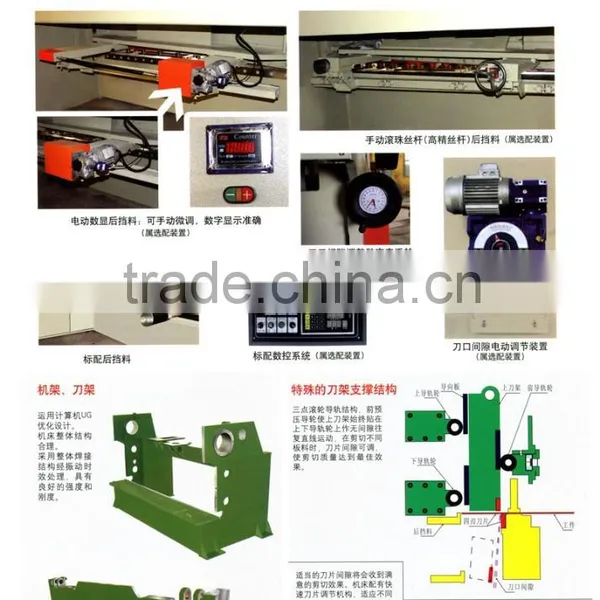

Features:
1. With a blade gap adjustment mechanism fast,reeduce labor intensity, high efficiency.
2. Transmission centralized lubrication, self-lubricating bearings to increase the lubrication cycle, long service life.
3. High reliability and resistant to pressure, anti-wear.
Specifications:
| Model | Q11D-13×2500 | Q11D-16×2500 |
| Max. Shearing thickness (mm) | 13 | 16 |
| Max. Shearing width (mm) | 2500 | 2500 |
| Sheet material strength (Mpa) | Less than or equal to 500 | Less than or equal to500 |
| Shearing angle ( º ) | 3 º | 3 º |
| No. Of stroke (min-1) | 28 | 28 |
| Flywheel speed (r/min) | 970 | 970 |
| Distance between columns (mm) | 2540 | 2540 |
| Back gauge (mm) | 600 | 600 |
| Length of blades (mm) | 2540 | 2540 |
| Motor power (kw) | 15 | 18.5 |
| Dimension (mm) | 3600*2000*2500 | 3600*2000*2500 |
| Weight (kg) | 10300 | 10800 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
