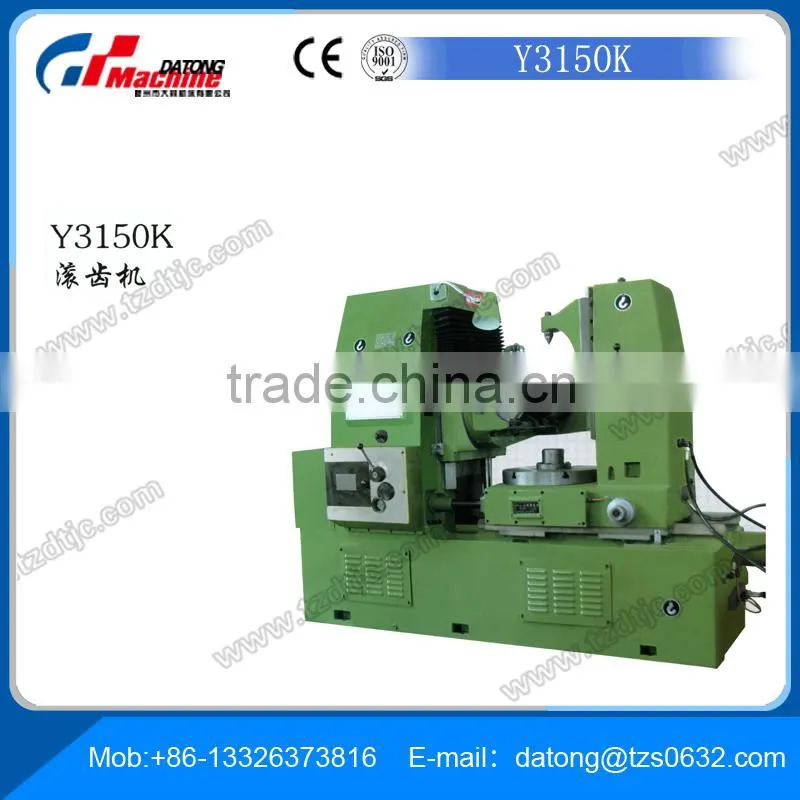

Help CenterSale Factory Y3150K Gear Hobbing Machine
Related Products
-
Sale Factory Y3180E Gear Hobbing MachineUS$ 1,000 - 10,000MOQ: 1 Set -
Sale Factory Y38-1G Gear Hobbing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Sale Factory Y3150 Gear Hobbing MachineUS$ 7,000 - 8,000MOQ: 1 Set
-
Gear Hobbing Machine for SaleUS$ 1,000 - 10,000MOQ: 1 Set
-
Supply Gear Cutting Gear Hobbing Slotting MachineUS$ 1,000 - 10,000MOQ: 1 Set
Y3150K Y3180K Y31125K Gear Hobbing Machine
Parameter:
Model |
Y3150K |
Y3180K |
Y31125K |
|
Max. work piece dia. (with/without work stay) |
500mm |
620/800mm |
1000/1250mm |
|
Max. module (steel/cast iron) |
8mm |
8/10mm |
16/18mm |
Max. width of teeth |
250mm |
300m |
450mm |
Max. hob dia/length |
160/160mm |
180/175mm |
245/220mm |
Dia. of worktable |
510mm |
625mm |
950mm |
Spindle speed/steps |
40-250rpm/9 |
40-250rpm/9 |
16-125rpm/7 |
Max. hob shift axial |
55mm |
55mm |
100mm |
Main motor |
5.5kw/1500rmp |
5.5kw/1500rmp |
11kw/1500rmp |
|
Taper of hob arbor fitting |
Morse No. 5 |
Morse No. 5 |
Morse No. 5 |
Distance from hob axis to worktable surface |
235-535mm |
240-590mm |
200-700mm |
Center distance between hob and worktable |
20-330mm |
50-550mm |
100-750mm |
|
Distance between tailstock end face to worktable surface |
380-850mm |
400-720mm |
500-900mm |
Worktable bore diameter |
80mm |
80mm |
155mm |
|
Max. hob swiveling angle |
240° |
240° |
±60° |
Dia. of hob arbors dia. |
22 27 32mm |
22 27 32 40mm |
27 32 40 50mm |
Work arbor dia. |
30mm |
35mm |
60mm |
Overall size |
2450x1272x1790mm |
2600x1400x1940mm |
3616x2040x2450mm |
G.W./N.W. |
5300/4500kg |
3300/5700kg |
14750/13000kg |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
