Mobile Concrete Batching Plant Price,YHZS35 Ready Mixed Plant

FOB Price

US$ 1 - 28,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Henan, China	Brand Name	YUJIE
Model Number	YHZS35	Power(W)	45kw
Dimension(LWH)	19.8m8.2m8.5m	Weight	Configuration
Certification	CE ISO SGS	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

mobile concrete batching plant price,YHZS35 ready mixed plant

Product Description

Breif introduction

1. Horizontal twinshaft compulsory mixer has the strong mixing ability with uniform mixing and hig

production output. The admixtures are widely mixed by the shafts.

2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts

3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy

materials. The wear resistance of the mixing paddles saves time and cost to replace. at the same time, improves the machines durability and reliability.

4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;

5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators.

6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

Main parameters of YHZS35 Concrete Batch Plant

Model	HZS35
Rated Productivity	35m3/h
Main Mixer	JS750
Power of Main Mixer	30KW
Max. Aggregate Diameter	80mm
Delivery Capacity	0.75m3
Feeding Mode	Lift Hopper
Batching Unit	PLD1200
Measuring Scope & Accuracy of Aggregate	2200Kg ±2%
Measuring Scope & Accuracy of Cement	450Kg ±1%
Measuring Scope & Accuracy of Water (by flow meter)	200Kg ±1%
Additive Weighing Precision	30Kg ±1%
Discharging Height	3.8 m
Outline Dimension(at work) (L X W X H)	19.8m×8.2m×8.5m
General Power	60.0KW
Total Weight	15000Kg
Control Mode	Semi-automatic batching, manual operation
Cement Silos(for customers’ choice)	According to customers’ demands, 50T or 100T cement silos can be used.
Screw Conveyor(for customer’s choice)	Each cement silo needs one φ219 screw conveyor.

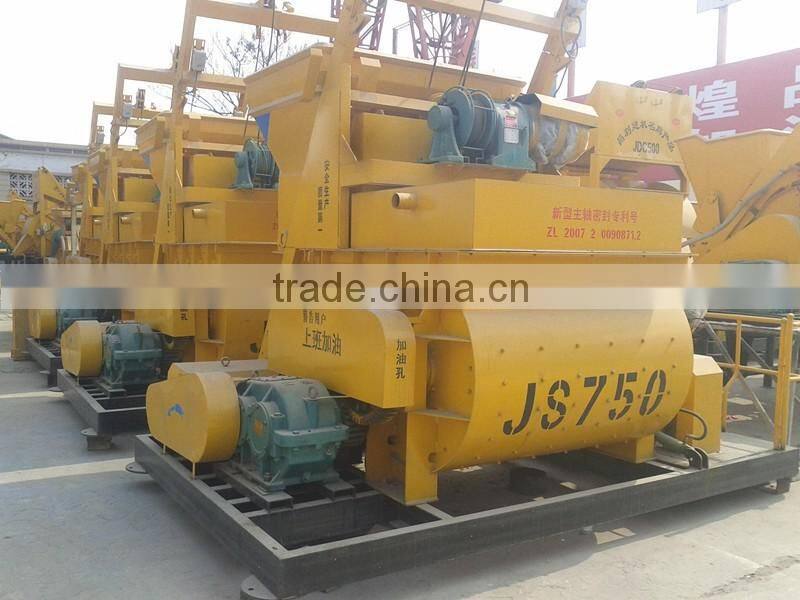

Mixing system

Batching system

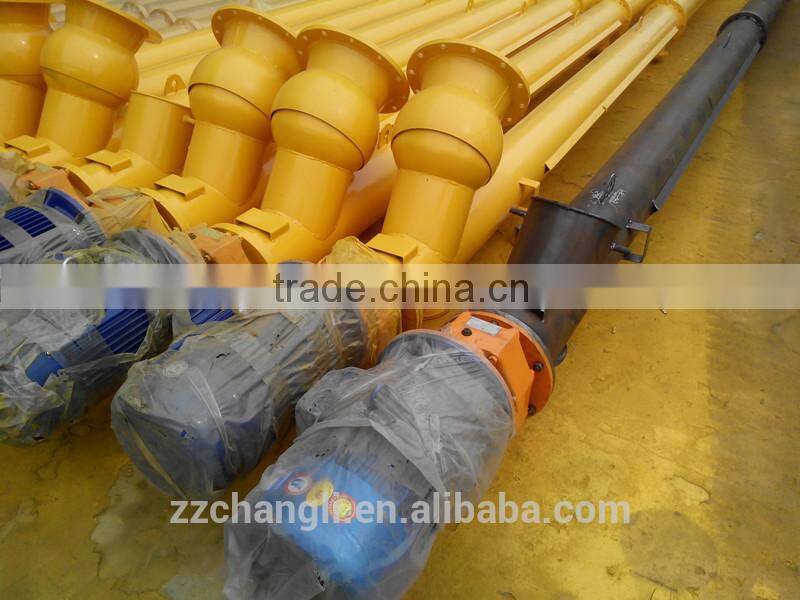

Cement silo and screw conveyor

Control system
