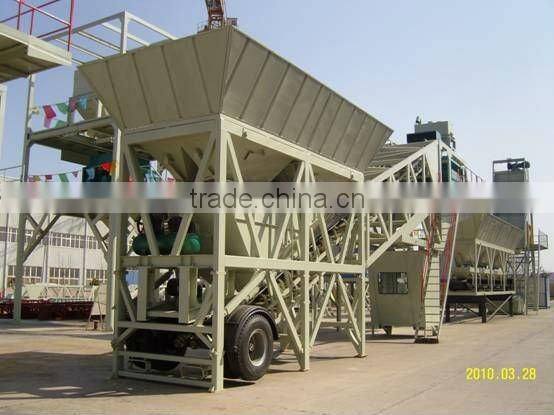

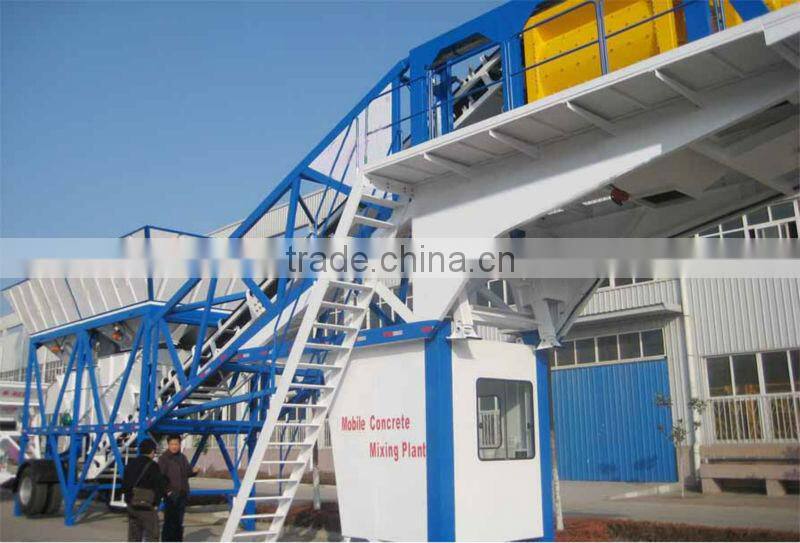

mobile mini concrete batching plant,25m3h ready mixed plant
Lafarge group supplier
34 years product experience
Crystal Wang
Tel:008617839909811
*****************************************
1. General Information of HZS25(25m3/h) Concrete Batching Plant
2. Power: 380V, 50HZ, 3 Phase;

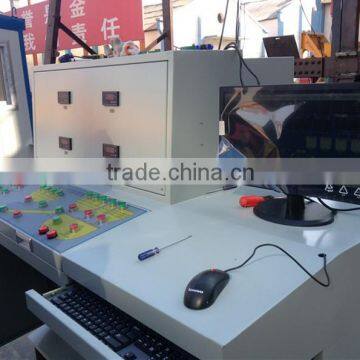

3. Control mode: Panel control
4. Main components: PLD800 with 3 storage bins; JS500 concrete mixer (0.5m3); cement, water and additive weighing system; control system; one set of 50T detachable cement silo; one set of φ219mm*8M*11kw screw conveyor;
5. Container needed: Three 40HQ;
6. Production Lead time: Around 20 days
7. Auxiliary equipments we supply: wheel loader; concrete mixing truck; concrete pump
Model | HZS25 |
Rated Productivity | 25m3/h |
Main Mixer | JS500 (0.5m3) |
Power of Main Mixer | 18.5KW |
Max. Aggregate Diameter | 80mm |
Delivery Capacity | 0.5m3 |
Feeding Mode | Lift Hopper |
Batching Unit | PLD800 |
Measuring Scope & Accuracy of Aggregate | 1500Kg ±2% |
Measuring Scope & Accuracy of Cement | 300Kg ±1% |
Measuring Scope & Accuracy of Water(by flow meter) | 200Kg ±1% |
Discharging Height | 3.8 m |
Outline Dimension(Operational State)(L*W*H) | 14.5m *5.6m *5.9m |
General Power | 45.0KW (380V,50HZ) |
Total Weight | 7700Kg |
Control Mode | Centralized control |
Cement Silos | 1*50T |
Screw Conveyor | 1*φ219 screw conveyor |
More photos
