Home > Products > Concrete Mixing Plant > Ready Mix Concrete Plant for Sale,HZS50 Hopper Lift Concrete Batch Plant
Ready Mix Concrete Plant for Sale,HZS50 Hopper Lift Concrete Batch Plant
- qingdao
- T/T Money Gram Credit Card
You May Like
-
CE Certificated HZS25 -HZS240stationary Concrete Batching Plant Cememt Mixing Machine With Capacity From 25 M3/h to 420m3/h
-
Fixed Concrete Batching Plant 90m3/h for Sale
-
Plant Cement Concrete Batching Plant HZS50, Skip Hoist Concrete Batch Plant in Malaysia
-
Small Concrete Batching Plant, Cheaper Cement Mixing Plant in India
-
CE,BV HZS25 -HZS240 Mobile/stationary Concrete Batching Plant Cememt Mixing Machine With Capacity From 25 M3/h to 420m3/h
-
Mobile Portable Concrete Batching Plant 60m3/h,belt Type Concrete Batching Plant YHZS60
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | YUJIE | |
| Model Number | HZS50 | Power(W) | 110kw | |
| Dimension(L*W*H) | 33.8m*14.8m*10.8m | Weight | Configuration | |
| Certification | GBT/19001-2008/ISO9001:2008 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

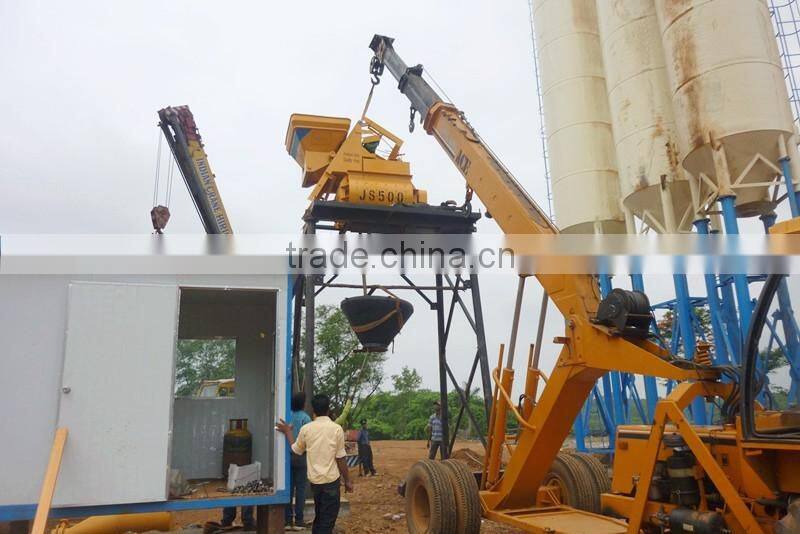

ready mix concrete plant for sale,HZS50 hopper lift concrete batch plant
Introduce of HZS50 concrete mixing batching plant :
1.it can produce various kinds of concrete including quaking concrete and hard concrete.
2.With high production efficiency.
3.widely used in large and medium scale building works, roads works, bridges works and concrete products prefabrication plants .
4.The main machine of this series uses JS series double shaft compulsory mixer.
Main Parts of concrete mixing batching plant :
1.Concrete Mixer: JS1000 (including the steel support).
2.Batching machine: PLD1600.
3.Water supply system: Spray mode, composed of water tank & water pump.
4.Conveyor system.
5.Measurement system: measure the aggregate, cement, water, liquid additive.
Main Technical Parameters of concrete mixing batching plant :
Model | HZS50 |
Rated Productivity | 50m3/h |
Main Mixer | JS1000 |
Max. Aggregate Diameter | 80mm |
Capacity of Aggregate Bin | 3×13m3 |
Aggregate Conveying Mode | Lift Hopper |
Aggregate Weighing Precision | 3000Kg ±2% |
Cement Weighing Precision | 600Kg ±1% |
Fly Ash Weighing Precision | 400Kg ±1% |
Water Weighing Precision | 400Kg ±1% |
Additive Weighing Precision | 50Kg ±1% |
General Power | 85Kw |
Total Weight | 40T |
Outline dimension (L*W*H) | 33.8m×14.8m×10.8m |
Discharging Height | 3.8 m |
Control Mode | Semi-automatic batching, manual operation |
Powder Silos (for customers choice) | The capacity and number of silos as well as the configuration of silo accessories vary with customers’ demands. |
Screw Conveyors (for customers choice) | Usually, φ273mm screw conveyors are used. |
Sketch of HZS 50
