Home > Products > Concrete Mixing Plant > modular concrete batching plant 25m3/h,mobile mini concrete plant with CE ISO certification

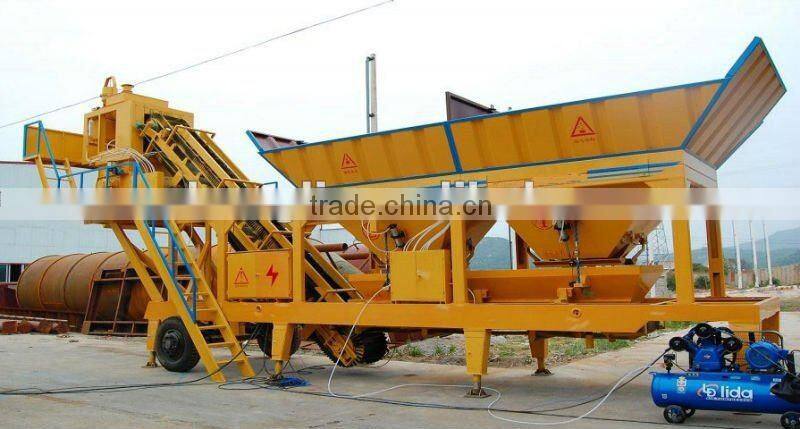

modular concrete batching plant 25m3/h,mobile mini concrete plant with CE ISO certification
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
precast concrete plants HZS25 for sale,automatic concrete batch plant with bv certification
-
dry mix concrete plant hzs25, automatic mini concrete batching plant with high quality 25m3/h
-
Wet concrete batching plant for sale,two mixer efficiency concrete batching plant 60m3/h with belt type
-
mobile concrete batching plant for sale,ready mixed concrete batching plant 35m3/h
-
ready mixed concrete plant for sale,HZS35 concrete batching plant with full automatic control in sri lanka
-
Factory Price HZS50-50M3/H Mobile Concrete Batching Plant Price
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | YUJIE | |
| Model Number | YHZS25 | Power(W) | 37kw | |
| Dimension(L*W*H) | 11m*4m*20 m | Weight | 15T | |
| Certification | CE ISO SGS | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
modular concrete batching plant 25m3/h,mobile mini concrete plant with CE ISO certification
Brief Introduction
It is highly reliable with easy operation and transportation. It is capable of mixing dry hardness, half dry hardness, plastic concrete. It is simple in operation, mobile in site-transfer and excellent in reliability, can also be moved anywhere and it is ready for using when settle down.
Main Technical Parameter :
Model | YHZS25 |
Rated Productivity | 25m3/h |
Main Mixer | JS500 |
Batching Unit | PLD800 |
Max. Aggregate Diameter | 80mm |
Capacity of Aggregate Bin | 2×8m3 |
Aggregate Measuring and Conveying Mode | Belt Conveyer |
Measuring Scope & Accuracy of Aggregate | 1000Kg ±2% |
Measuring Scope & Accuracy of Cement | 300Kg ±1% |
Measuring Scope & Accuracy of Water | 150Kg ±1% |
Measuring Scope & Accuracy of Additives | 50Kg ±1% |
Transportation Mode | Pulled by a truck chassis |
Discharging Height | 3.8 m |
More photos about YHZS25
Mixing system
Batching system
Control system
Weighing system
Our certification
Q1. How long do you think your concrete mixer can stand up?
A1. The mixing blades can mix 30000 sessions and the lining board can stand up for 50000 sessions.
Q2. How many motors for PLD800 Batching Machine? How much power for each?
A2. For PLD800-III, there are four motors in total at 4KW each.
Q3. Do you manufacture detachable / bolted type 50 ton cement silos? How much grade/tensile for the bolts?
A3. Yes we do. The bolts grade/tensile is 8.8.
