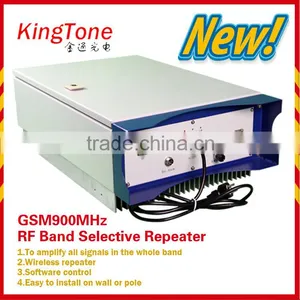

1km Cover Range Gsm Range Extender Signal Repeater 5 Watt Cellular Booster

Lined with foam in thick box; 1 unit/ ctn;

1km cover range gsm range extender signal repeater 5 watt cellular booster

 Main features

1. Monitor software can be upgrade locally or remotely;

2. Large dynamic range, low power consumption, little noise figure;

3. Large adjustment range of power and gain, high precision of stepped gain;

4. Convenient debugging;

5. Protect from over voltage, current and temperature;

6. Backup batteries function;

7. High isolation from uplink to downlink;

8. High stability and high reliability, MTBF ?100, 000 hours;

9. Perfect local and remote network monitoring function.

Main functions

1. Auto Shut-Down

2. Protect from over output power

3. Main modules self-test and alarm

4. Open-door alarm

5. ALC function

6. Display output figures

7. Software set up gain, power and channel

 Specification

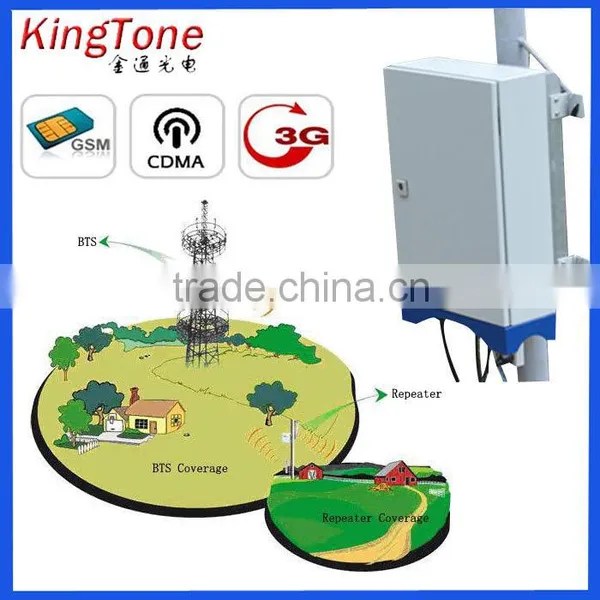

Application range

1. Blind areas;

2. Confined areas such as underground, tunnel and indoor distribution system;

3. Low traffic areas such as Suburbs and villigages;

4. Shadow areas.

1km cover range gsm range extender signal repeater 5 watt cellular booster with duplexer Installation:

1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70dBm.

2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.

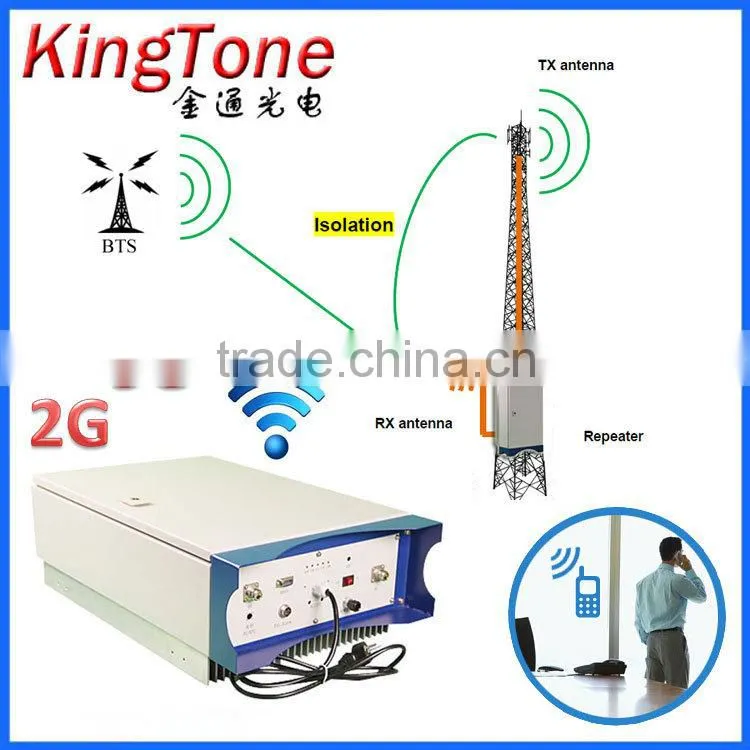

3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 40 meters at least, with a barrier and not in a same horizontal line.

4. Packed the outdoor connector by waterproof glue, otherwise that will reduce the signal cover area.
