GSM cell phone repeater 900

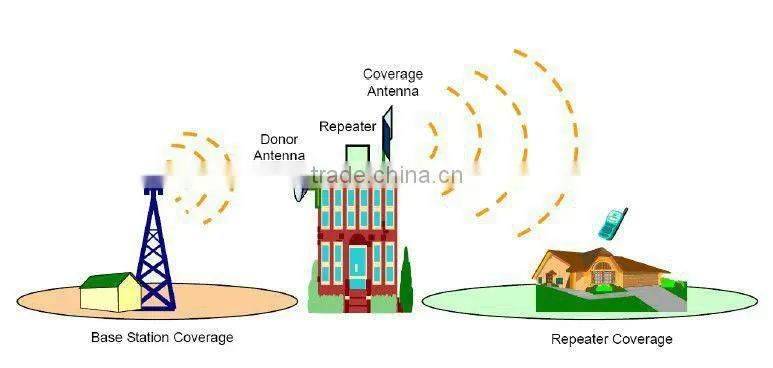

Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
GSM cell phone repeater 900 Features:
Kingtone Outdoor Wireless Cell Phone GSM Repeater:
1,It is a high power repeater for GSM applications;
2,It can be applied as an outdoor solution;
3,The GSM Repeater is a cost-effective repeater that will reduce the overall cost of signal coverage extension without the need of implementing more BTS sites;
4,LED light working & signal condition indicators;
GSM cell phone repeater 900 Typical Applications:
Kingtone Outdoor Wireless Cell Phone GSM Repeater are widely used in the places below:
Railway Tube Scenery spot
Campus Hospital Oil field
Road Sea-route Town
Rural area Airport Venue
GSM cell phone repeater 900 Technical Specifications:
Items |
GSM900MHz Band Selective Repeater |
||
Frequency Range |
Uplink |
890-915MHz |
|
Downlink |
935-960MHz |
||
Output Power |
Uplink |
Min +23dBm- +33dBm |
|
Downlink |
Min. +30dBm- +43dBm |
||
Working Bandwidth |
Various bandwidth is available upon request |
||
Gain |
Min. 90dB |
||
AGC Control Range |
Min 40dB (+/-2dB) |
||
Gain Control Range |
31dB (1dB Step) |
||
VSWR |
< 1.5 |
||
Ripple in Band |
Max +/-1.5dB |
||
Inter modulation attenuation |
≤-45dBc ♦; ≤-36dBc ♦ |
||
|
Spurious Emissions |
9KHz-1GHz |
Max -36dBm |
|
1GHz-12.75GHz |
Max -30dBm |
||
RF Connector |
N-type Female |
||
I/O Impedance |
50 ohm |
||
Noise Figure |
Max 5dB |
||
Group Time Delay |
Max 5µS |
||
Temperature Range |
-25 degree Celsius to +55 degree Celsius |
||
Relative Humidity |
Max 95% |
||
MTBF |
Min. 100,000 hrs |
||
Power Supply |
DC -48V / AC220V/110V (+/-15%), 50Hz/60Hz |
||
UPS Backup Power Supply (Optional) |
6 hours / 8 hours |
||
NMS Monitor Function(Optional) |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc. |
||
Remote Control Module(Optional) |
RS232 + Wireless Modem + Chargeable Li-ion Battery |
||
2walt 5walt 10walt 20walt outdoor gsm 900 cell phone repeater GSM cell phone repeater
2walt 5walt 10walt 20walt outdoor gsm 900 cell phone repeater GSM cell phone repeater
2walt 5walt 10walt 20walt outdoor gsm 900 cell phone repeater GSM cell phone repeater
2walt 5walt 10walt 20walt outdoor gsm 900 cell phone repeater GSM cell phone repeater
2walt 5walt 10walt 20walt outdoor gsm 900 cell phone repeater GSM cell phone repeater
2walt 5walt 10walt 20walt outdoor gsm 900 cell phone repeater GSM cell phone repeater
2walt 5walt 10walt 20walt outdoor gsm 900 cell phone repeater GSM cell phone repeater
2walt 5walt 10walt 20walt outdoor gsm 900 cell phone repeater GSM cell phone repeater
Frequency range list for our repeaters :
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our repeater support above frequency range .
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?
Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.
Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.
Kingtone repeater can be deployed even without access to the roof or outside.
Welcome to OEM From China ,For more information:
Photos of our Our Company :
Welcome to our website : for more updated information .
All frequency we support .
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
|
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd
Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China.
|
|
Tell: 86 595 28857991 Fax: 86 595 22155502 Mobile:86 13506927982 skype: cary.cao4 Web: ; |
