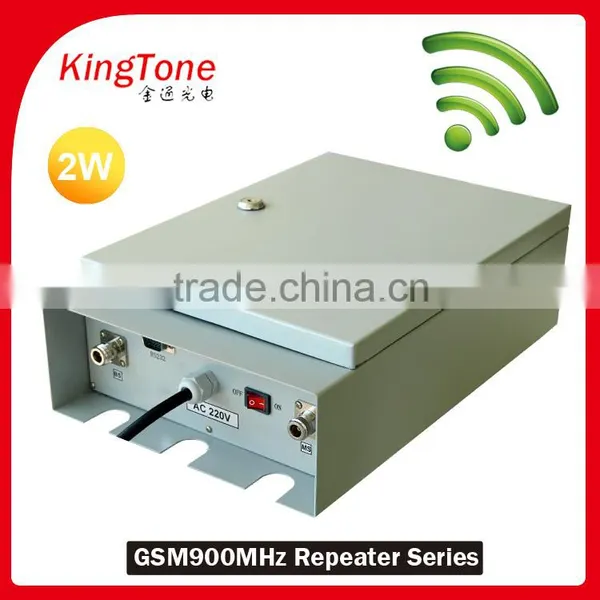

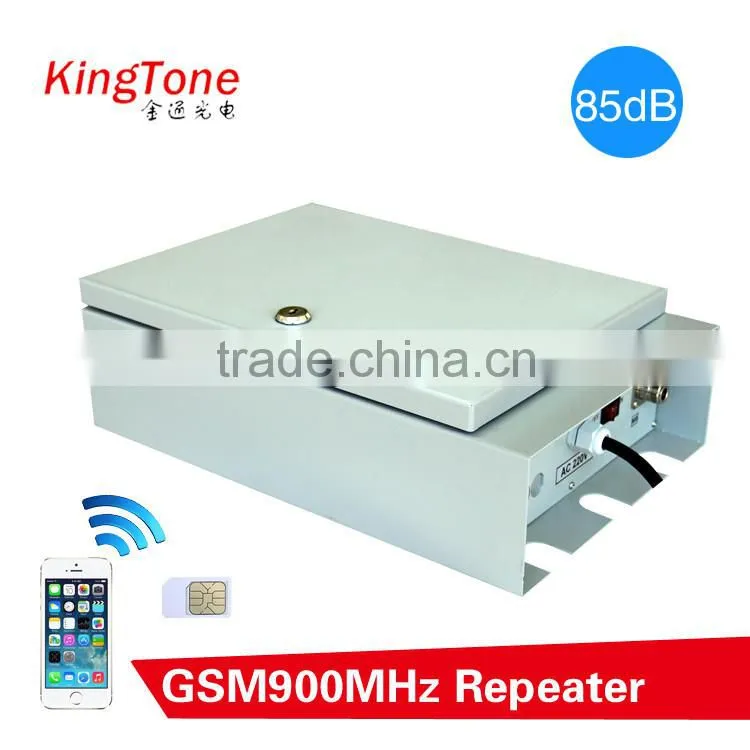

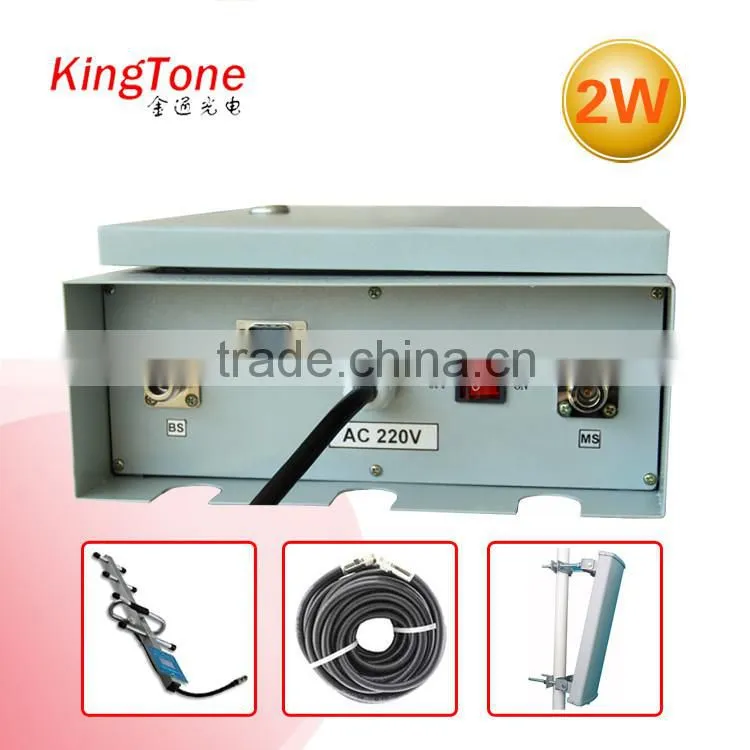

2G 3G Home GSM 900 Mhz Amplifier RF Signal Repeater Booster
Features:
1, Application in entire edifice indoor-used or large area outdoor coverage.
2, Cover about 10000~ 50000 m² without block or obstruct.
3, High linear design, low interference to BTS.

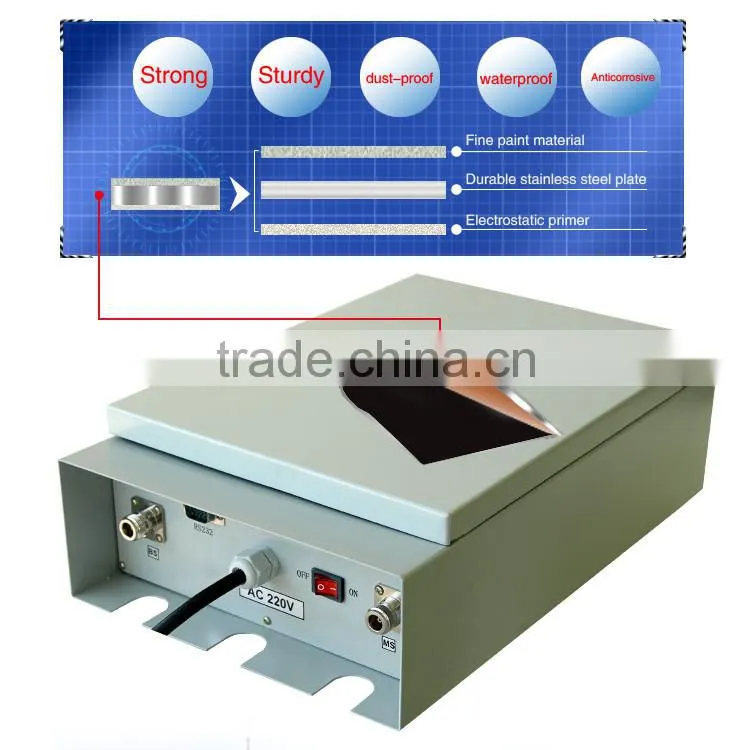

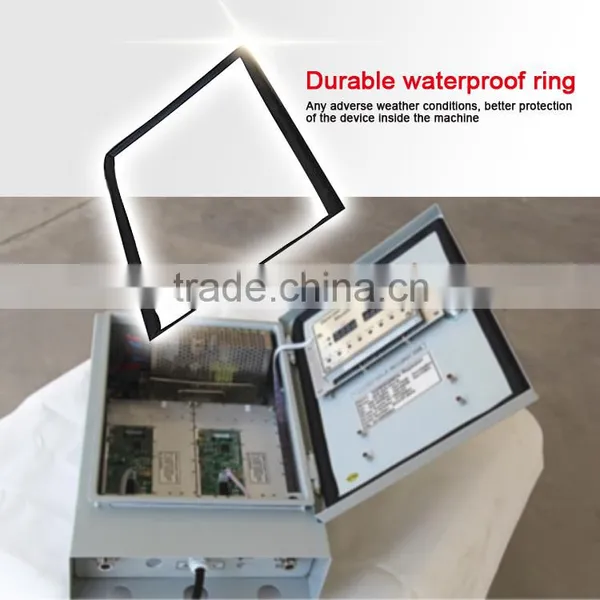

4,High efficient fasion radiator, high-performance waterproof chassis, application in outdoor.
5,ALC function designed.
6,Manual gain control function.
Typical Application:
2G 3G Home GSM 900 Mhz Amplifier RF Signal Repeater Booster to expand signal coverage of signal blind areas where signal is weak or unavailable.
1. Small building indoor covertage
2. High building covertage
3. Tunnel covertage
4. Subway covertage
5. Vehical covertage
6.basement room coverage
Technical Specification:
Items |
Testing Condition |
Specification |
||
Uplink |
Downlink |
|||
Working Frequency(MHz) |
Nominal Frequency |
890 – 915MHz |
935 - 960MHz |
|
Gain(dB) |
Nominal Output Power-5dB |
80 |
85 |
|
Output Power (dBm) |
GSM modulating signal |
33 |
33 |
|
ALC (dBm) |
Input Signal add 20dB |
Po≤±1 |
||
Noise Figure (dB) |
Working in-band(Max. Gain) |
≤5 |
||
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤3 |
||
Frequency Tolerance (ppm) |
Nominal Output Power |
≤0.05 |
||
Time Delay (us) |
Working in-band |
≤5 |
||
Peak Phase Error(°) |
Working in-band |
≤20 |
||
RMS Phase Error (°) |
Working in-band |
≤5 |
||
Gain Adjustment Step (dB) |
Nominal Output Power -5dB |
1dB |
||
Gain Adjustment Range(dB) |
Nominal Output Power -5dB |
≥30 |
||
Gain Adjustable Linear(dB) |
10dB |
Nominal Output Power -5dB |
±1.0 |
|
20dB |
Nominal Output Power -5dB |
±1.0 |
||
30dB |
Nominal Output Power -5dB |
±1.5 |
||
Inter-modulation Attenuation (dBc) |
Working in-band |
≤-45 |
||
Spurious Emission(dBm) |
9kHz-1GHz |
BW:30KHz |
≤-36 |
≤-36 |
1GHz-12.75GHz |
BW:30KHz |
≤-30 |
≤-30 |
|
VSWR |

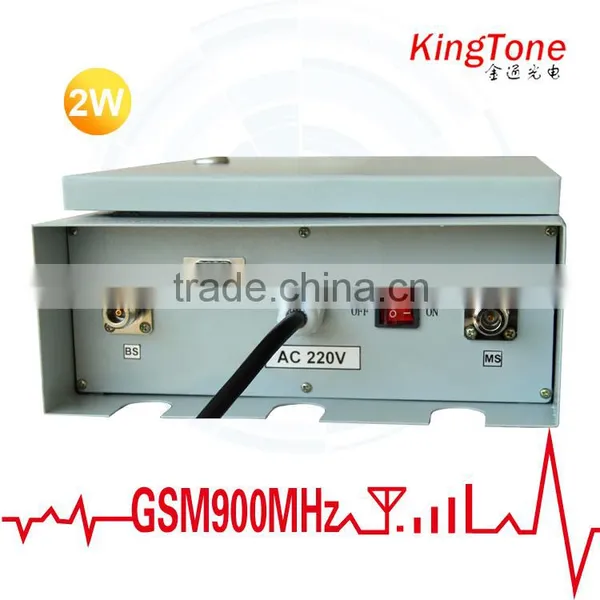

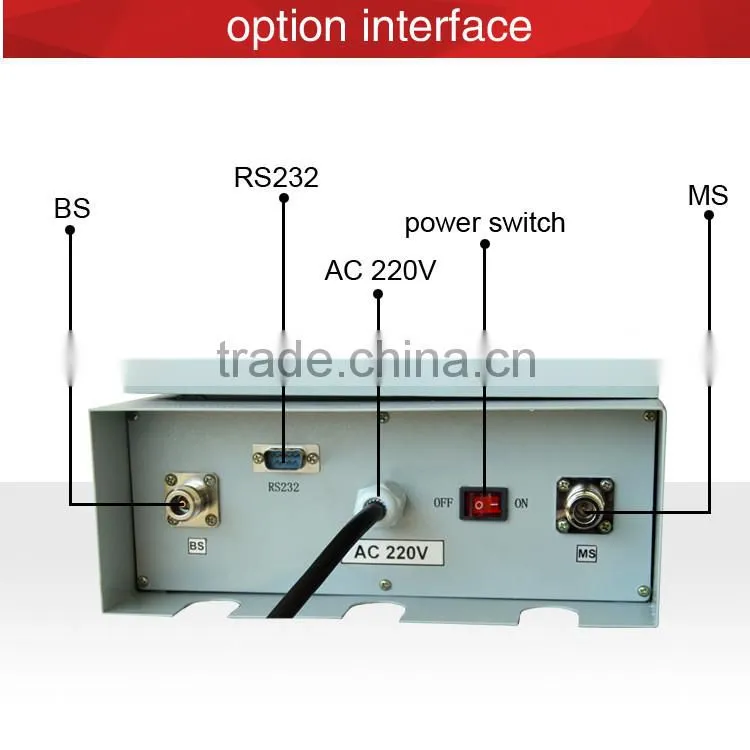

BS/MS Port |
1.5 |
||
1) AC power cord EU standard/ US standard/ UK standard 1PCS
2) Installation kit 1PCS
3) User manual 1PCS
Recommended Accessories
1) Donor antenna: Outdoor Panel Antenna ( 12dBi, 824-960Mhz )
2) Service antenna: Omni Ceiling Antenna ( 3dBi,824-960MHz)
3) 1/2" RF cable with connecter ( Cable length optional)
4) Splitter, coupler
Each 1pc into 1 carton,padded with safety foam;
2W Approx.: 44x24x34cm,weight approx.:10kgs;
5W approx.:61*41*29cm,weight approx.: 25kgs;
10W approx.:67*47*32cm,weight approx.: 26kgs;
20W approx.:75*52*32cm,weight approx.: 32kgs;
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, Fedex and EMS.
UPS,DHL,FEDEX: 3-7 WORKING DAYS TO MOST COUNTRY
EMS: 7-10 WORKING DAYS TO MOST COUNTRY
Our present manufacturing service:
GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE and other Repeater, including:
1. Single band Repeater
2. Dual Band Repeater
3. Tri band Repeater
4. Optic Fiber Repeater
5. Wide Band Repeater
6. Channel Selective Repeater
7. ICS Repeater
Signal System |
Frequency Range |
Output Power |
GSM900MHz Repeater |
Uplink:890-915MHz Downlink:935-960MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
DCS1800MHz Repeater |
Uplink:1710-1785MHz Downlink:1805-1880MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
GSM850MHz Repeater |
Uplink:824-849MHz Downlink: 869-894MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
CDMA450MHz Repeater |
Uplink:450-457.5MHz Downlink:460-467.5MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
CDMA800MHz Repeater |
Uplink:824-849MHz Downlink:869-894MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
PCS1900MHz Repeater |
Uplink:1880-1890MHz Downlink:1960-1970MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
3G 850MHz Repeater |
Uplink: 824-849MHz Downlink:869-894MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
UMTS2100MHz |
Uplink:1920-1980MHz Downlink:2110-2170MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
GSM900/1800MHZ |
890-915MHz/935-960MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
1710-1785MHz/1805-1880MHz |
|
Anna Yao
|
|
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd
Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China.
|
|
Tell: +86 595 28857992 Fax: +86 595 22155502 Whatsapp: +86 13178207380 skype: anna.yao696 Web: |
For more details of 2G 3G Home GSM 900 Mhz Amplifier RF Signal Repeater Booster,welcome you to contact us now!
If you'd like this product, click below and send your inquiry, we will back you the price list in 24hours!
