a.our machinery professional for any kind of industrial useful:
Including : industrial packing , medical ,food packing ,agriculture and soon
b.including : thicker bag ,double color , roll bag ,sheet roller and so on
c.material : HDPE , LDPE ,LLDPE , BIO/BIX type , recycle material
d.this machine working size :900mm
Product Description

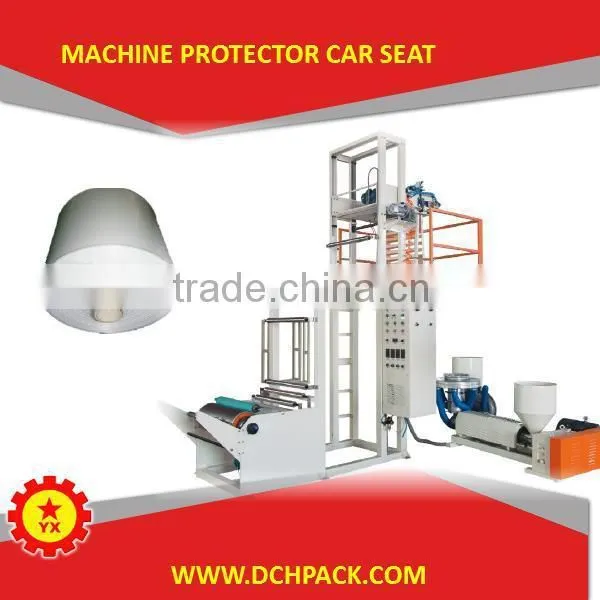

STEP ONE.FILM MACHINE DESCRIPTION
Model |
TBSY-900 |
Screw diameter |
55mm |
L/D |
28:1 |
Barrel & Screw |
38CrMoAl,hardening and tempering,deal with Nitride |
Temp control |
Digital meter |
Die head |
45 steel forge piece ,two sets |
Blower |
1 set |
Cooling |
Cooling fan |
Gear box |
High strength hard teeth retarder with high lubrication |
Extruder motor |
11KW |
Film width |
300-850mm |
Single-face Thickness |
LDPE:0.01-0.020mm,HDPE:0.08-0.05mm |
Output |
15-60kg/h |
Speed control |
Inverter |
Rewind control |
Torque motor |
Total Power |
25Kw |
Weight |
4500kg |
Dimension (L×W×H)mm |
4800x2800x4300 |
Option parts
NO |
PART |
OPTION (if you need please “V”) |
OPTION (if you need please “V”) |
||
1 |
Extruder motor |
China top brand |
|
foreign brand |
|
2 |
Inverter |
China top brand |
|
foreign brand |
|
3 |
Heating meter |
China top brand |
|
foreign brand |
|
4 |
Contactor |
China top brand |
|
foreign brand |
|
5 |
Air cylinder |
China top brand |
|
foreign brand |
|
6 |
Mold center |
HDPE |
|
LDPE |
|
7 |
Blow ring |
One layer |
|
rotary double layer |
|
8 |
Filter change |
Manual |
|
auto change |
|
9 |
Take up unit |
need |
|
No need |
|
10 |
Take up unit |
Manual |
|
air cylinder |
|
11 |
Embossing roller |
need |
|
No need |
|
12 |
Rewind |
One roller |
|
Two roller |
|
13 |
Rewind cylinder |
Steel |
|
Air cylinder type |
|
14 |
Gusset unit |
Need |
|
No need |
|

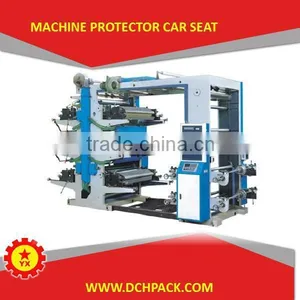

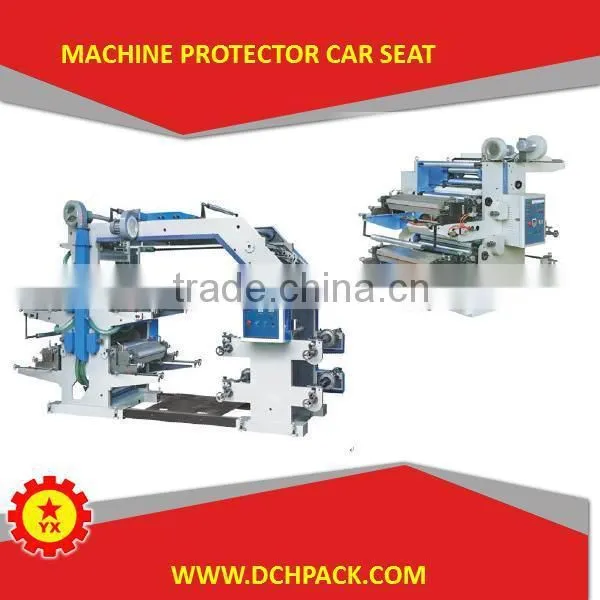

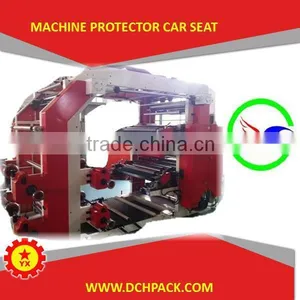

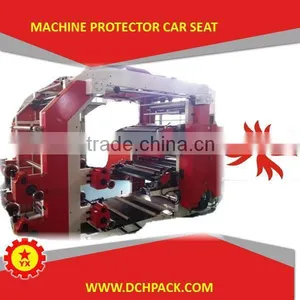

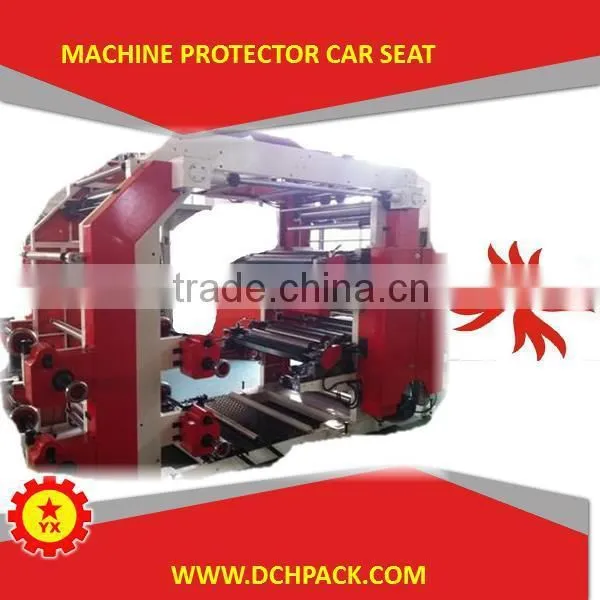

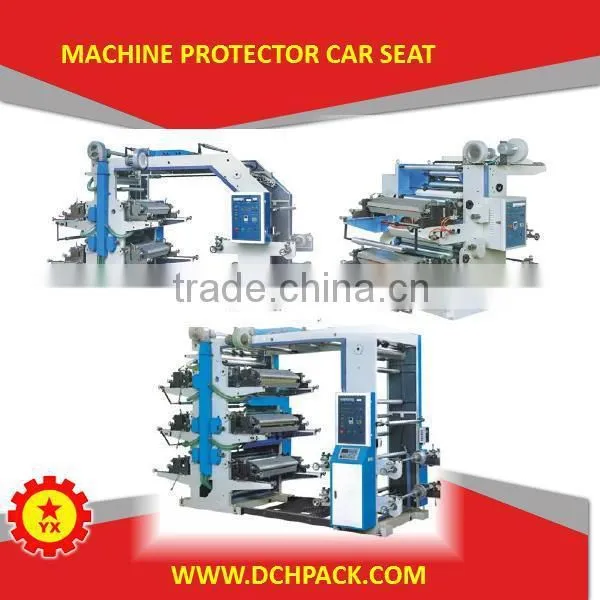

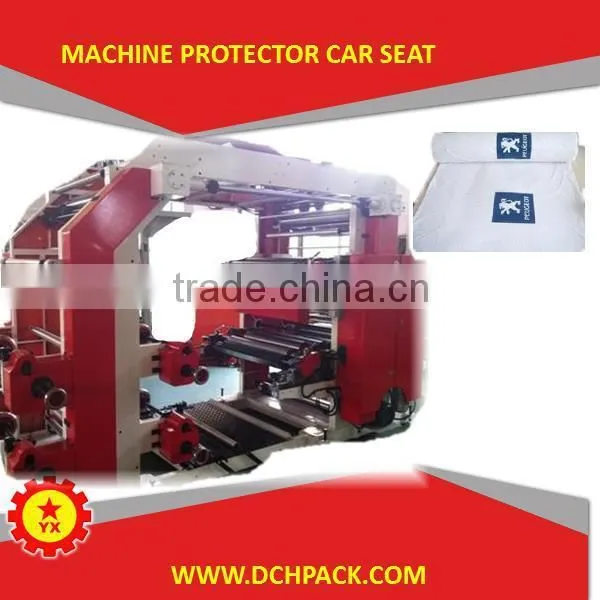

STEP TWO :PRITNING MACHINE FOR SEAT COVER MACHINERY DESCRIPTION
MACHINERY STRUCTURE
No |
Part |
Description |
Remark |
|
UNWIND UNIT | ||||
1 |
Unwind roller |
Pneumatic roller |
|
|
2 |
Unwind diameter |
600mm |
|
|
3 |
Unwind tension |
Tension auto control |
|
|
4 |
Unwind edge control |
EPC system |
|
|
PRINT UNIT | ||||
5 |
Print type |
Flexo |
|
|
6 |
Print ink |
Water type |
|
|
7 |
Ink mix unit |
Including |
|
|
8 |
Ink dryer |
Heating |
|
|
9 |
Print steel roller size |
150-500mm |
|
|
REWIND | ||||
10 |
Rewind roller |
Pneumatic roller |
|
|
11 |
Rewind type |
Double roller |
|
|
12 |
Count meter |
Count the running length |
|
|
13 |
Tension |
Auto tension control |
|
|
14 |
Rewind diameter |
600mm |
|
|
MACHINERY ELECTRIC KEY PARTS BRAND
NO |
NAME |
BRAND |
1 |
TEMP METER |
JAPAN |
2 |
INVERTER |
TAIWAN |
3 |
CONTACTOR |
JAPAN |

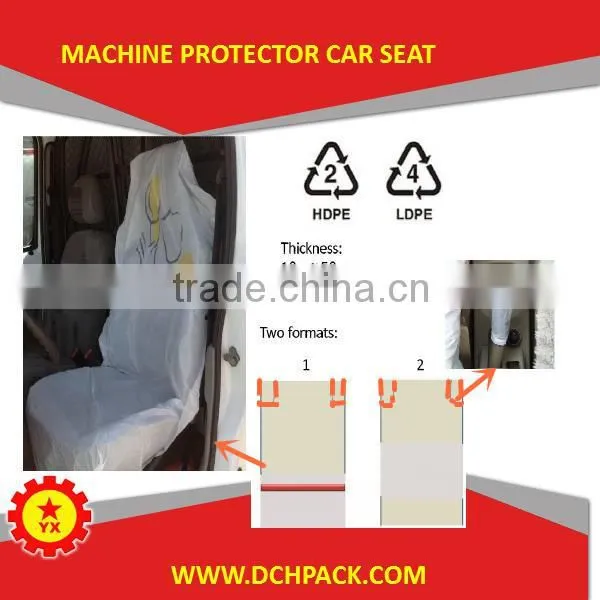

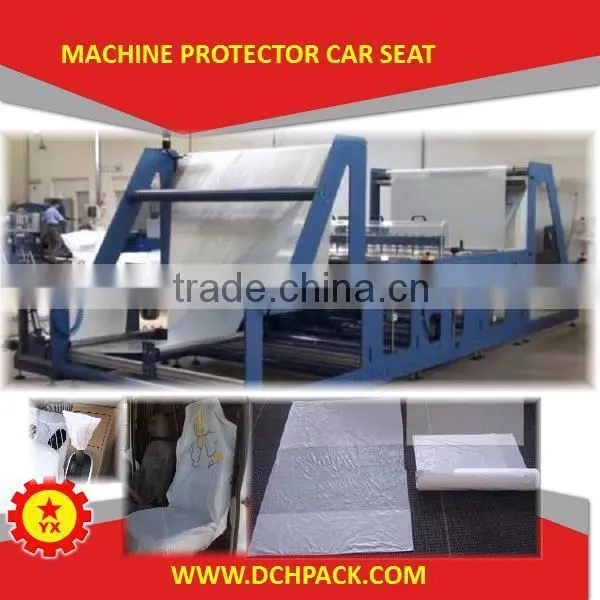

STEP THREE :SEALING MACHINE FOR SEAT COVER MACHINERY DESCRIPTION
TBE-1500 COVER CAR SEAT AUTOMATIC MACHINE TECHNICAL PARAMETER :
A |
Model |
TBE-1500 |
1 |
Max length of bag |
250-2000mm |
2 |
Max width of bag |
1500mm(sleeve unit 1600mm) |
3 |
Thickness of film |
0.01-0.05mm(HDPE , LDPE , LLDPE ) |
4 |
Speed of line |
30-90pcs/min |
5 |
Power |
17kw |
6 |
Weight |
7000kg |
7 |
Machinery Size (main part) |
7000x2000x2050mm |
8 |
Rewind unit size |
2000x1300x2000mm |
MACHINERY STRUCTURE
NO |
FEATURES |
1 |
With pneumatic disc brake , electronically controlled by local cell and promortional valve,eith pneumatic expansion shaft |
2 |
Automatic web guiding device for roll alignment with photocell especially suitable for transparent films |
3 |
Touch screen |
4 |
Possibility to work in manual,semiautomatic and automatic modes |
5 |
Fully programmable: welding time , press force ,breaks and delays |
6 |
Auto counting system based on converters |
7 |
Working on clean and printed foils |
8 |
Film sleeve,half-sleeve |
9 |
Security systems information about lack of the foil |
10 |
Security systems informing about lack of the power supply |
11 |
Electrostatic charges removal system |
12 |
Safety switches on detachable panels |
13 |
Epc control material running |
14 |
Heating with electric temperature controlled |
15 |
Photocell tracks the printing material |
16 |
Servo motor |
MACHINERY ELECTRIC KEY PARTS BRAND
NO |
NAME |
BRAND |
1 |
PLC |
JAPAN |
2 |
TEMP METER |
JAPAN |
3 |
INVERTER |
TAIWAN |
4 |
CONTACTOR |
JAPAN |
Our Services
NO |
NAME |
1 |
Supply printed film (up to requested ) |
2 |
Printing machine possible flexo or rotogravure type |
3 |
Color print possible one side or both sides |
4 |
Supply installation ,training |
5 |
Supply guarantee |
6 |
Supply any difference power type electric parts |
7 |
Supply CE certificate |
LINE A
