Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Brake Boosters Air Pump

Brake Boosters Air Pump

Name: Brake Boosters Air Pump
Brand: TOPSFLO
SKU: 122014537
Availability: InStock

US$ 88 - 90 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

TOPSFLO

Model Number:

TM30A-D

Contact Supplier Request Quote Chat Now

Changsha TOPSFLO Micro Pump Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name TOPSFLO

Model Number TM30A-D

Theory Vacuum Pump

Structure Diaphragm Pump

Usage Air Pump

Power Electric

Standard or Nonstandard Standard

Fuel Other, DC power, Battery

Pressure High Pressure

Application Other, Gas transferring and evacuating

brake boosters air pump

You may interest product....

Specification

Model	Pressure Pump	Vacuum Pump	Rated Voltage	No-load Current	Max Pressure	Max Vacuum	Max Flow
	(Item Number)	(Item Number)	(Vdc)	(A)	(KPa)	(KPa)	(L/min)
TM30A-C	TM30A-C12-P12004	TM30A-C12-V7004	6 /12 / 24	0.4/0.24/0.15	120	-70	4.5
TM30A-D	TM30A-D12-P12004 (outside controller)	TM30A-D12-V7004 ( outside controller)	6 /12 / 24	0.4/0.24/0.15	120	-70	4
" P " means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional.
Pump Weight:250g; Pump Size:80mm31mm58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm
Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM
Motor type and code:"C":Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D": Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions.

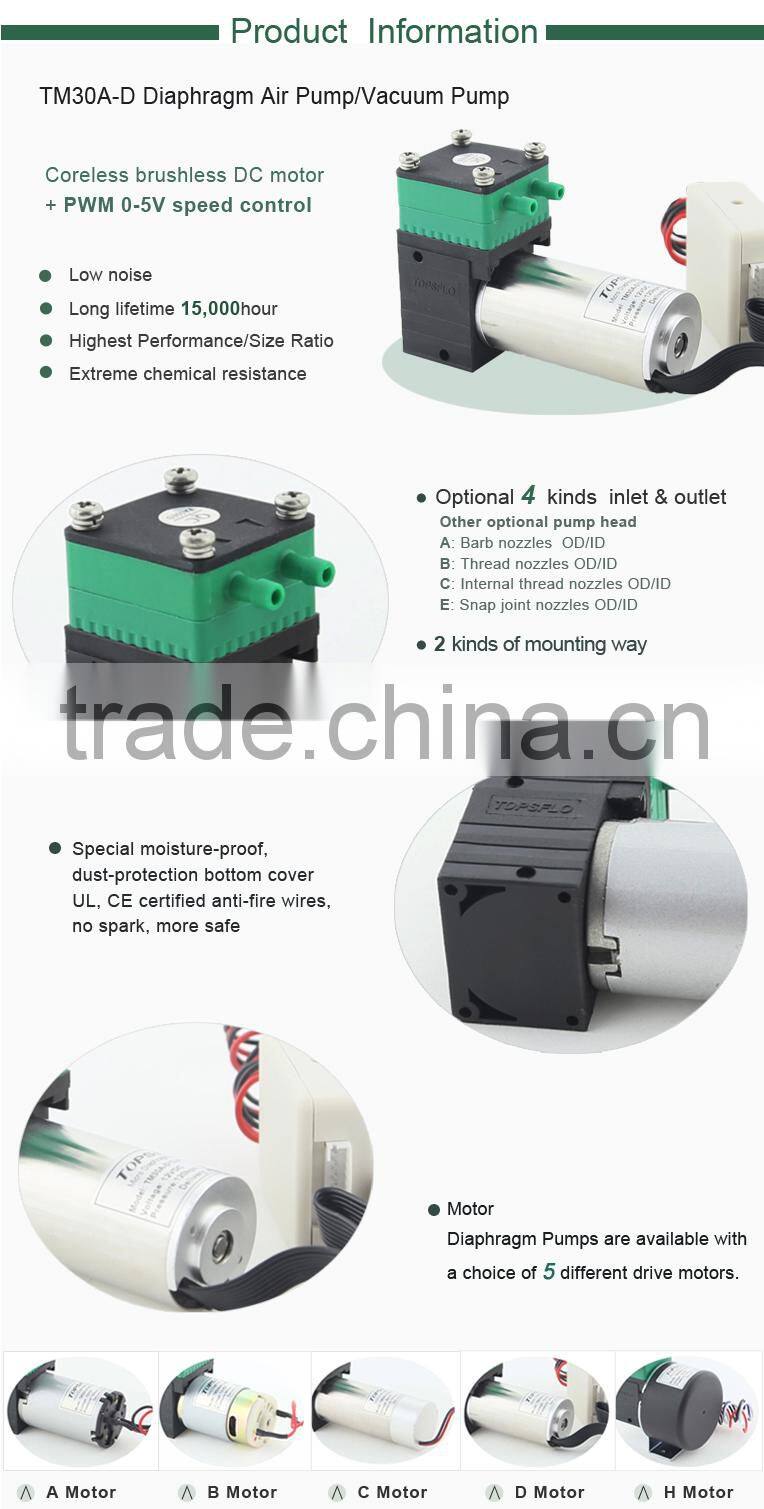

Product Information

A- Premium duty brush DC motor

lifetime 3,000hours,longer endurance lifetime than other normal DC membrane pump

B- Economical brush DC motor

lifetime:1,500hours

C- Coreless Brushless DC Motor

A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours

D- Coreless Brushless DC motor with outer controller

With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work

H- Brushless DC Motor

Long lifetime 10000hour

Wetted material options:

Optional membrane materials: EPDM for normal air PTFE for corrosive air,like acid, alkali air, ozone etc.
Optional valve materials: EPDM for normal air FPM for corrosive air, like acid, alkali, ozone,etc.

Feature:

1.Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.

2.Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.

3.Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.

4.Uncontaminated flow
no contamination of the media due to oil-free operation

5.Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor

6.High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head

7.Extreme chemical resistance
The use of chemically resistant materials optional such as FFPM,PTFE,FPM or other material combinations for the parts which allows the corrosive gas to be pumped.

8.Optimal solution for your application

a wide standard range of materials, motors , voltages configurates multiple components system selected

Application

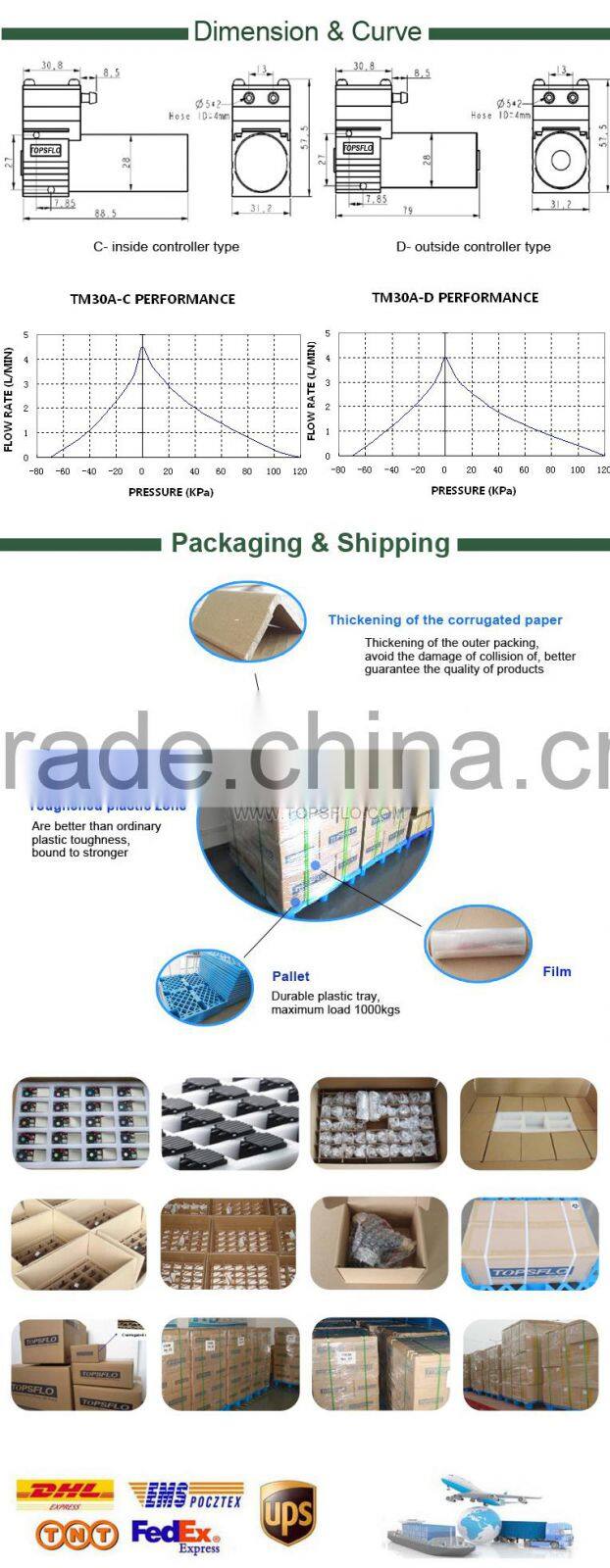

Curve & Dimension

1.The stock samples can be sent to you within 3-5 days by international express after received

2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)

More About Products
