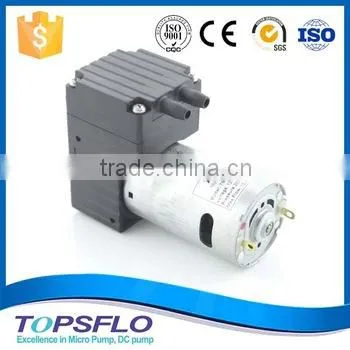

TOPSFLO 12v dc micro small mini pump
TOPSFLO More 12v dc micro small mini pump
You may interest product.......
|
Diaphragm brush air pump |
small vacuum pump |
Diaphragm air pump |
Diaphragm liquid pump |
|
Brushless dc water pump |
small dc water pump |
Food grade dc pump |
solar dc circulation pump |
TOPSFLO micro diaphragm pumps and compressors are based on a simple principal, the circular power from the motor is converted into oscillating movement by an eccentric, which moves up and down its central point, this motion is then transferred
to a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action.
The TM 40 Series offers multiple component configurations allowing them to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge
technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.
TM 40 pumps can be mounted in any position and can deliver up to 11 l/min, 13L/min
(dual head) depending on the model and will operate against pressures of up to 250Kpa.
Features
Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM 40 Series to push the
performance envelope in a lightweight, compact size.
Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising
performance.
Lasts Reliably Longer
Uncontaminated flow
no contamination of the media due to oil-free operation
Little vibration
Because of leading edge technologies, top quality bearing, superior brushmotor
High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ,material combinations for the parts which allows the corrosive gas to be pumped.
Optimal solution for your application
a wide standard range of materials, motors , voltages configurates multiple components system selected
Specification:
| I,Introduction | ||||||
| 1) Part Name: | Micro Membrane Vacuum Air Pump | |||||
| 2) Model: | TM40-B12-V7011 | |||||
| wire UL1007 24AWG OD:1.4mm | ||||||
| 3) Membrane Material: | EPDM | |||||
| 4) Housing Material: | PPE | |||||
| 5) Weight | 280g | |||||
| II,Electrical characteristics: | ||||||
| NO. | ITEMS | SPECIFICATION | NOTE | |||
| 1 | Poles | red "+", no mark "-" | ||||
| 2 | Rated voltage | DC12(V) | ||||
| 3 | Rated current ( no load ) | ≤0.7A | ||||
| 4 | Peak current | ≤5A(4.2±20%) | ||||
| 5 | Max vacuum pressure | -70Kpa± 5Kpa | ||||
| 6 | Maximum air flow | 10~13.5 (L/min) | No pressure and open outlet | |||
| 7 | Noise | ≤55dB/ 1M MAX | ||||
| 8 | Size | 86*65.25*40mm | ||||
| 9 | Accumulated running Lifetime | 1000-1500H | At rated speed, No-load | |||
| 10 | Working rated | intermittent | ||||
| 11 | Ambient temperature | 0-45℃ | ||||
| 12 | Operating air temperature | 0-55℃ | ||||
Typical Application
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
Nasal Aspirator

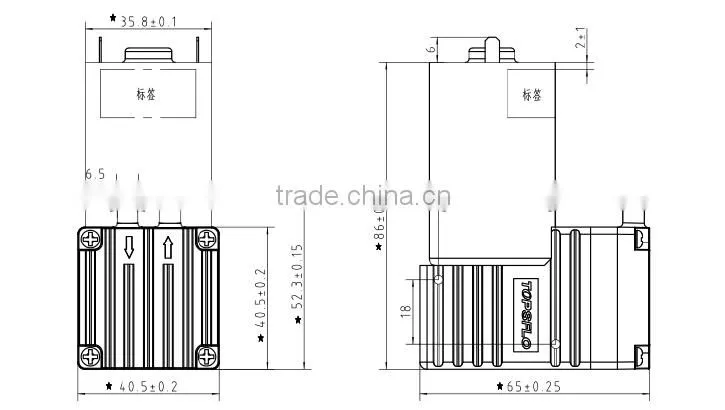

Dimension(mm)
