Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > TM30B-C 6V 12V 24v DC Diaphragm Air Pump

TM30B-C 6V 12V 24v DC Diaphragm Air Pump

Name: TM30B-C 6V 12V 24v DC Diaphragm Air Pump
Brand: TOPSFLO
SKU: 122014815
Availability: InStock

TM30B-C 6V 12V 24v DC Diaphragm Air Pump thumbnail-1

TM30B-C 6V 12V 24v DC Diaphragm Air Pump thumbnail-2

TM30B-C 6V 12V 24v DC Diaphragm Air Pump photo-1

TM30B-C 6V 12V 24v DC Diaphragm Air Pump photo-2

Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

TOPSFLO

Model Number:

TM30B-C

Contact Supplier Request Quote Chat Now

Changsha TOPSFLO Micro Pump Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name TOPSFLO

Model Number TM30B-C

Theory Vacuum Pump

Structure Diaphragm Pump

Usage Air Pump

Power Electric

Standard or Nonstandard Standard

Fuel Other, DC power,Battery

Pressure Other, 130kpa 4L, 130kpa

Application Other, Gas transferring and evacuating

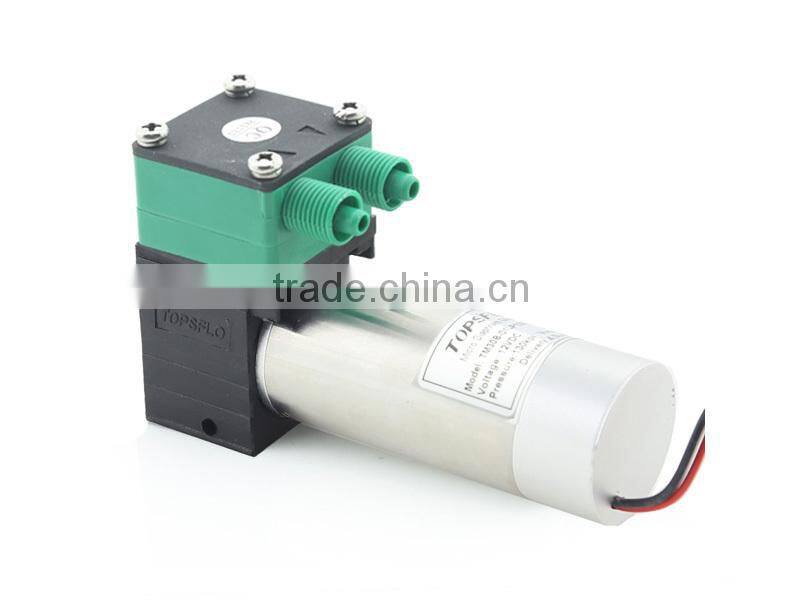

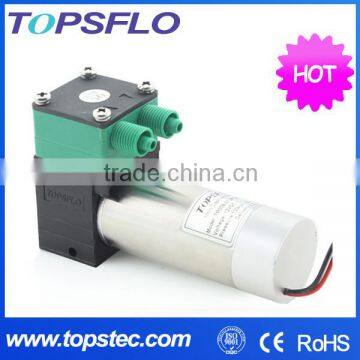

TM30B-C 6V 12V 24v DC Diaphragm Air Pump

Product Features:

1. Highest Performance/Size Ratio
2. Performs Quieter
3. Lasts Reliably Longer
4. Uncontaminated flow
5. Little vibration
6. High level of gas tightness
7. Extreme chemical resistance
8. Optimal solution for your application

Specification:

Model	Pressure Pump	Vacuum Pump	Rated Voltage	No-load Current	Max Pressure	Max Vacuum	Max Flow
	(Item Number)	(Item Number)	(Vdc)	(A)	(KPa)	(KPa)	(L/min)
TM30B-C	TM30B-C12-P13004	TM30B-C12-V6504	12/24	0.24/0.15	130	-65	4
TM30B-D	TM30B-D12-P13004 (outside controller)	TM30B-D12-V6504 (outside controller)	12/24	0.24/0.15	130	-65	4
" P " means pressure pump, " / V " means vacuum pump, "6/12/24" means different voltages optional.
Pump Weight:250g; Pump Size:80mm30.5mm58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm
Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM: Good resistance and tolerance with alcohol, acid, alkali, oxidant, ketone and fat, etc. Poor oil resistivity.
Motor type and code:"C":Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D": Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions.

2. Portable Analytical Instruments
3. Medical Diagnostic Equipment
4. Air Quality Sampling Monitors
5. Respiration Monitors
6. Gas or Odor Leak Detectors

TOPSFLO Other Micro DC Pump

	TD5 Micro solar dc circulation pump
	TS5 Micro solar dc circulation pump
	TL-B04H Micro brushless centrifugal pump
	MG200XK/DC24WI Micro magnetic drive gear pump
	TF30B-D Micro diaphragm vacuum / liquid pump
	TMD40-F Micro diaphragm air pump(double head)
