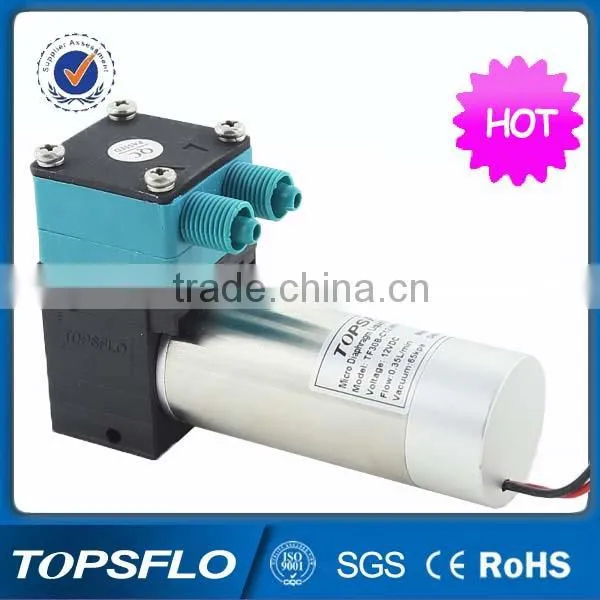

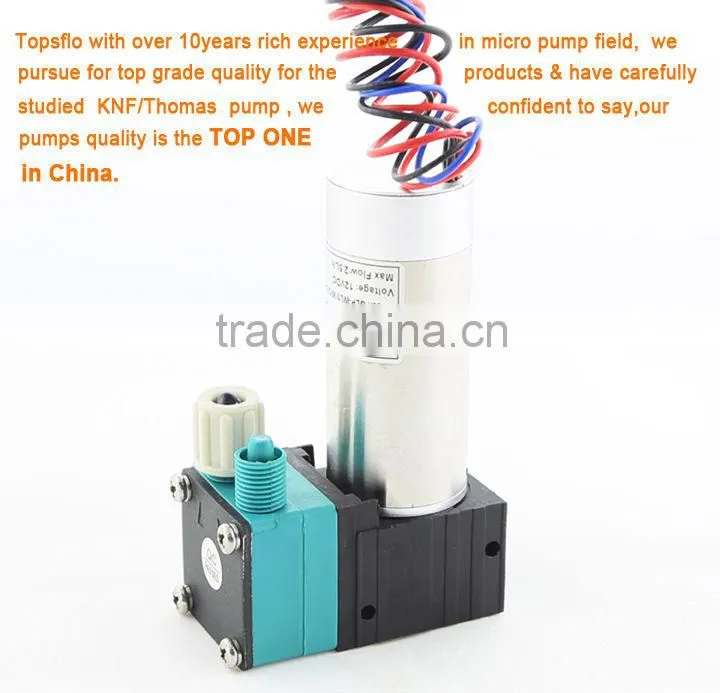

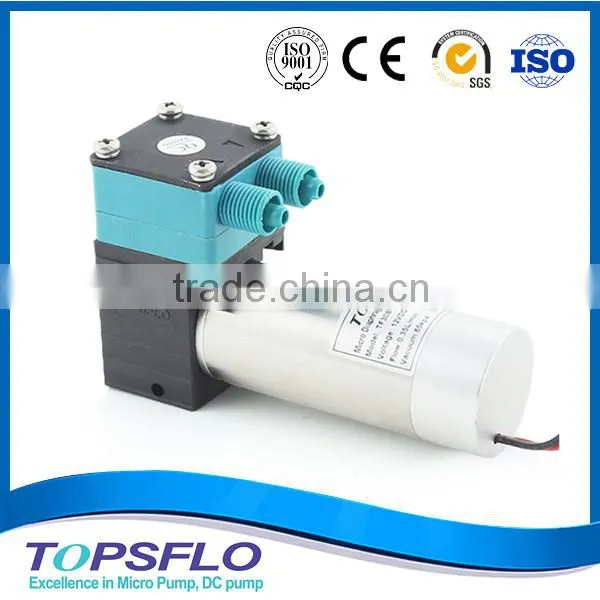

diaphragm brushless dc mini 6v 12v 24v 12v liquid pump
Specification:
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Head | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (M) | (KPa) | (L/min) | |
| TF30B-C | TF30B-C12-W1003(inside controller) |
TF30B-C12-V6504 |
6/12/24 | 0.4/0.24/0.15 | ≥10 | -65 |
water: 0.35 gas: 4.5 |
| TF30B-D | TF30B-D12-W1003 (outside controller) |
TF30B-D12-V6504 ( outside controller) |
6/12/24 | 0.4/0.24/0.15 | ≥10 | -65 |
water: 0.35 gas: 4.5 |
|

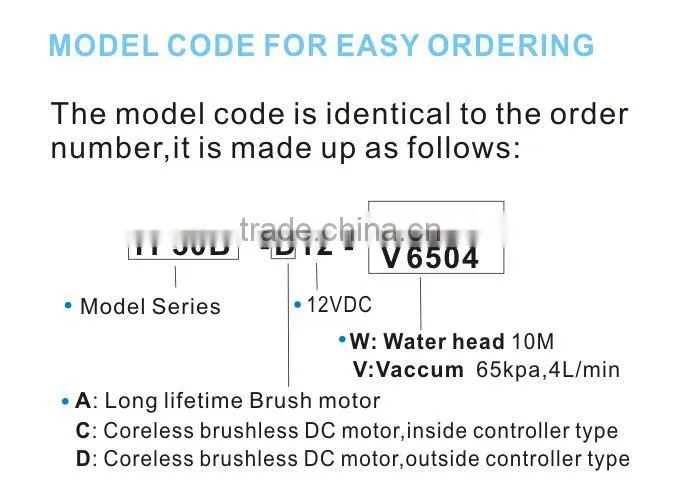

" W " means water/liquid pump, " / V " means vacuum pump, "6/12/24" means different voltages optional.
| |||||||
| Pump Weight:250g; Pump Size:80mm*31mm*60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||

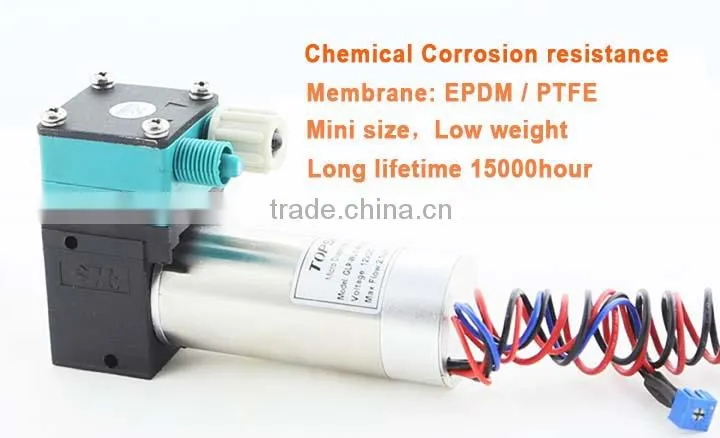

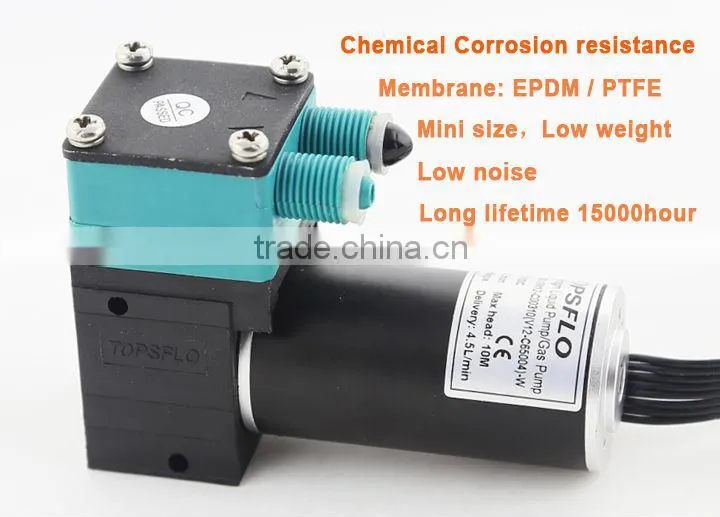

| Super silent noiseMaterials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM Note:other water flow rates of 0.05L/0.15L/0.2L/0.3L can be customized as requirements. C- inside controller type D- outside controller type | |||||||
|
Motor type and code:"C"means Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D"means Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. | |||||||

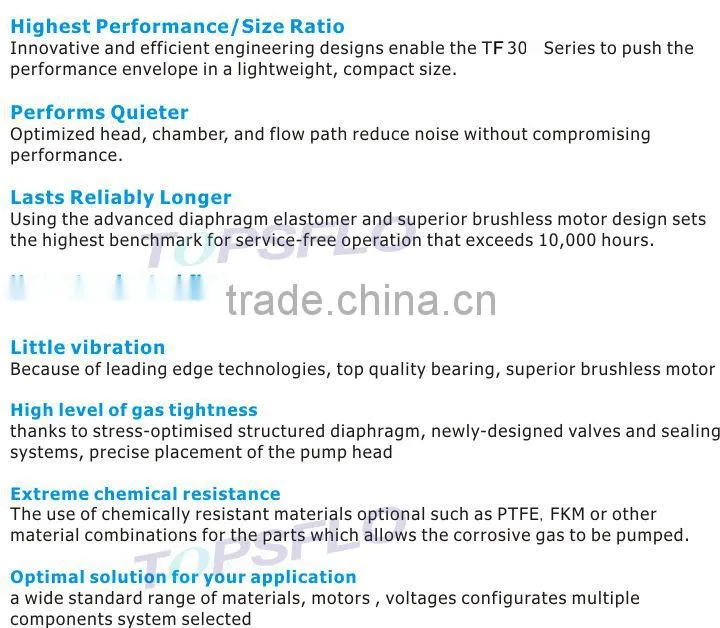

The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps
have proved themselves in the following areas:
Industrial liquid and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Printer ink machine
Fireplace
Respiration Monitors
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of micro pumps(micro BLDC centrifugal water pump,micro gear pump,high performance diaphragm air/liquid pump )for over 10 years with excellent quality and competitive.
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice
For more detail, pls feel free contact us !
