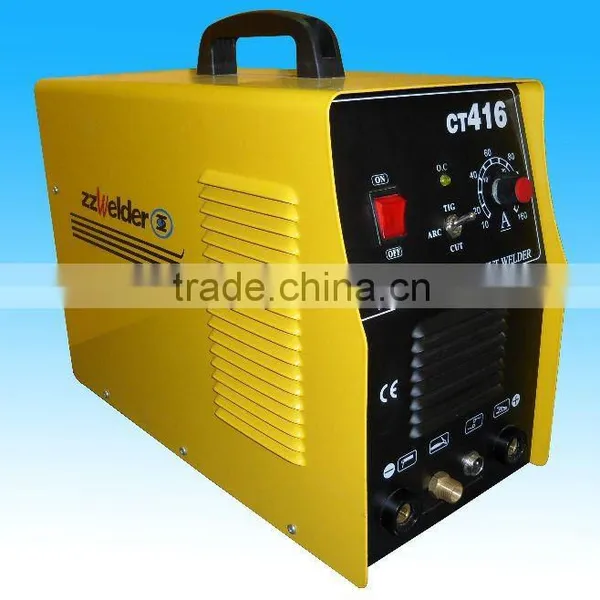

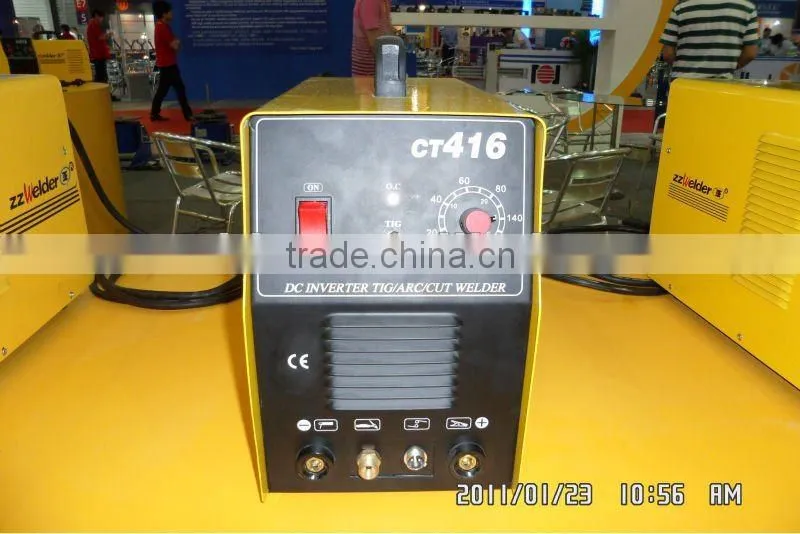

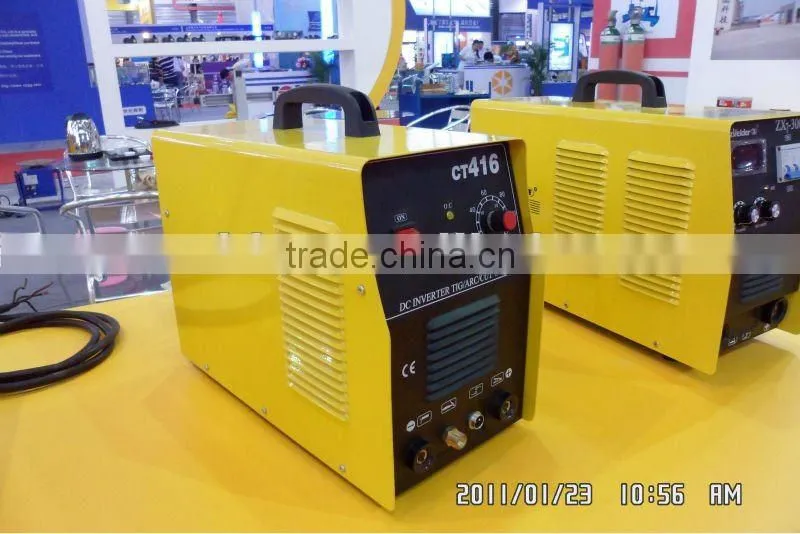

CT416 Inverter Welder Has Three Function TIG,MMA and CUT

CT416 Inverter Welder Has Three Function TIG,MMA and CUT thumbnail-1
CT416 Inverter Welder Has Three Function TIG,MMA and CUT photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
zzwelder
Model Number:
CT-416
Contact Supplier Request Quote Chat Now
Zhangzhou Welder Technology Exploiting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name zzwelder
Model Number CT-416
Input Voltage 220V
Dimensions 425*205*355
Usage It can cut many kinds of metals.
Certification ISO9001/CCC

Specifications

1.Applicable for argon arc welding, electric welding and cutting.
2.inverter tig/mma/cut welder manufacturer

 ♣Inverter CT416  tig/mma/cut Functions and features:

New, highly-efficient and economical  Applicable for argon arc welding, electric welding and cutting.More convenient operation, creating new values for you

Item TIG MMA CUT TIG

  MMA

  CUT


Input supply voltage frequency(V.HZ) AC220±15%,50/60 AC220±10%,50/60
Rated input power capacity(KVA) 3.5 4.8
Output current range(A) 10~125 10~110 10~30 10-160 10~150 20~40
Rated input current(A) 10 14.7 15.87 13.7 15.87 21.7
Rate output voltage(V) 15 25 92 16 27 96
Duty cycle(%)(25°C) 60 40
No-load loss(W)  35 40
Efficiency(%) 85 85
Power factor(COSφ) 0.93 0.93
Arcing Way HF Contact Contact HF Contact Contact
Weight(KG)  9 13
Overall dimension(mm)  371×155×295 425×205×355
Insulation class B B
protection class IP21 1P21
Max cutting thickness (mm) - - 8 - - 12
Maximum electrode diameter(mm) - 2.5 - - 3.2 -
Gas flow(L/min) 2.5 - 80 2.5 - 80
Nozzle diameter(mm) - - 1.0 - - 1.2
Air pressure(Mpa) -- - 0.4 - - 0.4



CT416 Inverter Welder has three function TIG,MMA and CUTCT416 Inverter Welder has three function TIG,MMA and CUT
