Home > Products > CUT/TIG/MMA Machine > CT312 3 in 1 plasma cutter has three function TIG,MMA and CUT

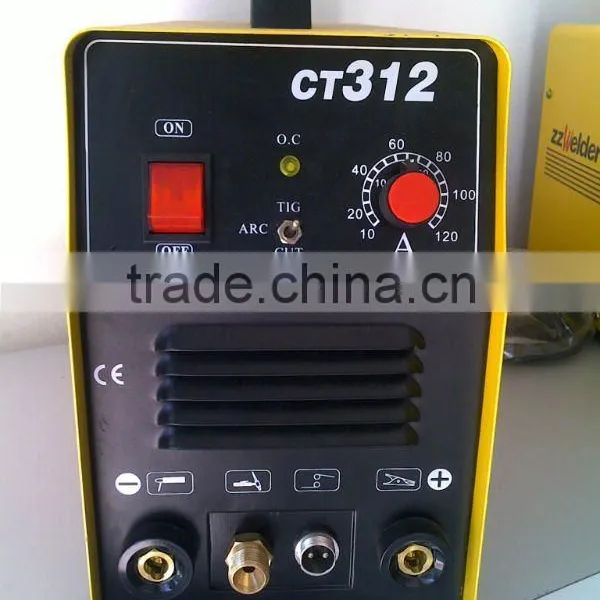

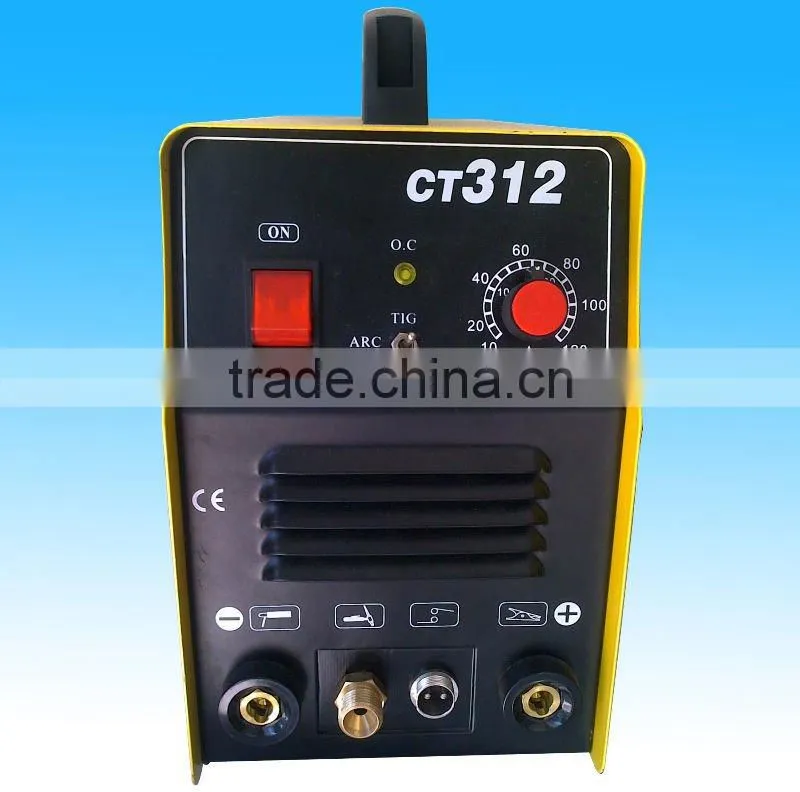

CT312 3 in 1 plasma cutter has three function TIG,MMA and CUT
Negotiable
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- Xiamen China
- T/T Credit Card
You May Like
- air plasma cutter for metal pilot arc 1gbt220v
- plasma cutter CUT-45PRO arc welding machine
- RETOP portable cutter plasma machine for cutting sheet metal 15mm CUT-45PRO
- plasma machine for cutting sheet metal 15mm CUT-45PRO
- RETOP building compressor cut welding machine CUT-45PRO
- RETOP portable small size convenient transportation and carrying plasma cutters with built in air compressor CUT-45PRO
Product Details
Place of Origin: | Fujian, China | Brand Name: | zzwelder | Model Number: | CT-312 |
Input Voltage: | 220V | Dimensions: | 371*155*295 | Usage: | It can cut many kinds of metals. |
Certification: | ISO9001/CCC |
Product Description
Specifications
1.Applicable for tig,mma,cut.2.Portable mini inverter arc welding machine
3.3 in 1 plasma cutter
♣Portable mini inverter arc welding machine 3 in 1 plasma cutter
functions and features:
New, highly-efficient and economical Applicable for argon arc welding, electric welding and cutting.More convenient operation, creating new values for you
Item | TIG | MMA | CUT | TIG | MMA | CUT | |||
Input supply voltage frequency(V.HZ) | AC220±15%,50/60 | AC220±10%,50/60 | |||||||
Rated input power capacity(KVA) | 3.5 | 4.8 | |||||||
Output current range(A) | 10~125 | 10~110 | 10~30 | 10-160 | 10~150 | 20~40 | |||
Rated input current(A) | 10 | 14.7 | 15.87 | 13.7 | 15.87 | 21.7 | |||
Rate output voltage(V) | 15 | 25 | 92 | 16 | 27 | 96 | |||
Duty cycle(%)(25°C) | 60 | 40 | |||||||
No-load loss(W) | 35 | 40 | |||||||
Efficiency(%) | 85 | 85 | |||||||
Power factor(COSφ) | 0.93 | 0.93 | |||||||
Arcing Way | HF | Contact | Contact | HF | Contact | Contact | |||
Weight(KG) | 9 | 13 | |||||||
Overall dimension(mm) | 371×155×295 | 425×205×355 | |||||||
Insulation class | B | B | |||||||
protection class | IP21 | 1P21 | |||||||
Max cutting thickness (mm) | - | - | 8 | - | - | 12 | |||
Maximum electrode diameter(mm) | - | 2.5 | - | - | 3.2 | - | |||
Gas flow(L/min) | 2.5 | - | 80 | 2.5 | - | 80 | |||
Nozzle diameter(mm) | - | - | 1.0 | - | - | 1.2 | |||
Air pressure(Mpa) | -- | - | 0.4 | - | - | 0.4 |
