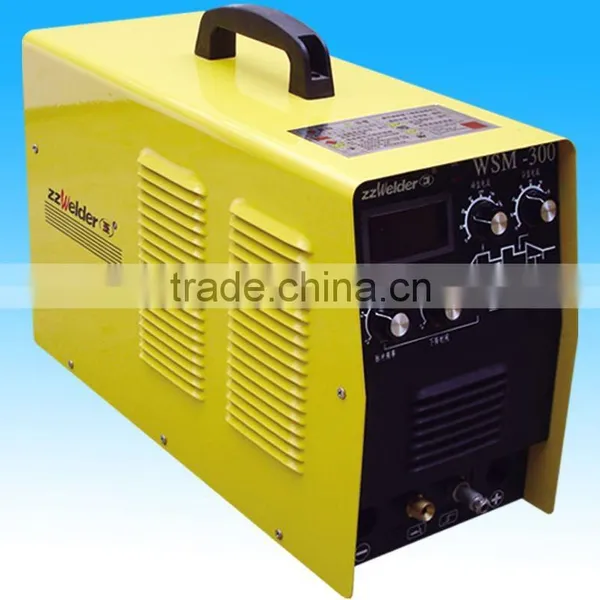

WSM-300 Inverter Welder With Pluse

Name: WSM-300 Inverter Welder With Pluse
Brand: ZZwelder
SKU: 121787425
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

ZZwelder

Model Number:

WSM-300

Zhangzhou Welder Technology Exploiting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name ZZwelder

Model Number WSM-300

Rated Duty Cycle 60%

Dimensions 720*480*530

Specifications

1.the welding machine tig has pluse function
2.OEM is available
3.manufacture

WSM-300 inverter welder has some features as follows( welding machine tig ):

1.The high frequency driving, impulse controlling, welding pervasion force is strong.

2. The range of welding is wide, which is suitable for all sorts of arts and crafts welding requirement.

3. It can weld many kinds of material, such as carbon steel stainless, alloy steel, copper, titanium etc.

4.This machine can be used in stainless decoration, kitchen device and industrial mould mending.

5.The impulse can be adjusted controlling, and also is used to automatic welding.

It may choose circulation water tank to match.

♣Technical Data:

Type	WSM-300
Input Power Voltage(Frequency)	Three-phase 380V±15% 50/60HZ
Rate Input Power Capacity(KVA)	8
No-load Voltage(V)	70
Output Current Adjustment Rang(A)	10-300
Rate Input Voltage(V)	22.6
Rate Duty Cycle(%)	60
No-load Consumption(W)	40
Efficiency(%)	85
Power Factor(COS φ)	0.93
Current Falling Time(S)	0-5
Post-welding Gas Blow Time	1-10
Current Impulse Frenquency(Hz)	Middle frequency 25-250
	Low frequency 0.25-2.5
Basic Curren(%)	5-300
Weight(kg)	35
Size(L×W×H)mm	670×335×633
Insulation Class	F
Arc-start Mode	HF
Suitable Welding Thickness(mm)	0.3-15
