Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > LHH Series Heavy Duty Horizontal Lathe

LHH Series Heavy Duty Horizontal Lathe

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

BMT(Tianjin) International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main ports

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Place of Origin Tianjin, China

Brand Name BMT

Model Number LHH series

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

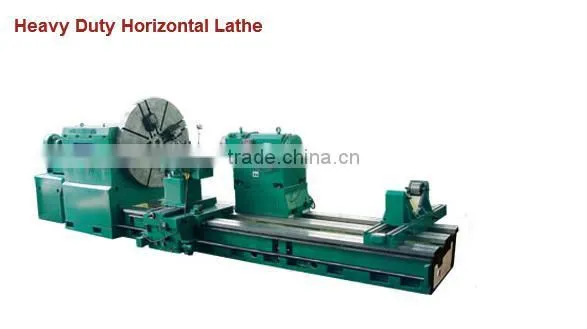

LHH series heavy duty horizontal lathe

Technical Specification:

Model	LHH-1600		LHH-1800		LHH-2000		LHH-2200		LHH-2350
Max.swing over bed( mm)	1600		1800		2000		2200		2350
MAX.swing over carriage( mm)	1250		1450		1650		1850		1950
Center 5r4height( mm)	830		930		1030		1130		1205
Max.length of workpiece( m)	3- 16		3- 16		3- 16		3- 16		3- 16
Max.weight of workpiece between centers( t)	32		32		32		32		32
Max.torque of face plate( kg.m)	8000		8000		8000		8000		8000
Max.cutting capacity of independent tool post( kg)	9000		9000		9000		9000		9000
General cutting capacity( kg)	16000		16000		16000		16000		16000
Cone point angle of center and specification	75°;φ120 taper(1:7)
Section dimension of tool shank( mm×mm)	70×70	70×70		70×70		70×70		70×70
Step.No of spindle speed	stepless
Range of spindle speed( r/min)	0.8-160	0.8-160		0.8-160		0.8-160		0.8-160
Taper bore in spindle( mm)	φ120;1:7	φ120;1:7		φ120;1:7		φ120;1:7		φ120;1:7
Diameter of face plate( mm)	1600	1600		2000		2000		2000
Step.No of feed	step 18	step 18		step 18		step 18		step 18
Range of longitudinal feed( mm/r)	0.125-48	0.125-48		0.125-48		0.125-48		0.125-48
Range of cross feed( mm/r)	0.063-24	0.063-24		0.063-24		0.063-24		0.063-24
Feed range of tool slide compound( mm/r)	0.063-24	0.063-24		0.063-24		0.063-24		0.063-24
Longitudinal rapid traverse speed( mm/min)	3000	3000		3000		3000		3000
Cross rapid traverse speed( mm/min)	1500	1500		1500		1500		1500
Max.travel of cross slide( mm)	725	725		800		800		800
Max.travel of tool slide compound( mm)	600	600		600		600		600
Pitch of metric thread( mm)	2-40	2-40		2-40		2-40		2-40
Inch thread( pitch/inch)	40922	40922		40922		40922		40922
Module thread( mm)	1.5-20	1.5-20		1.5-20		1.5-20		1.5-20
Diameter of tailstock sleeve( mm)	300	300		300		300		300
Traversing capacity of sleeve( mm)	300	300		300		300		300
Spindle taper bore of tailstock( mm)	φ100taper(1:7)
Rapid traverse of tailstock( mm/min)	3000	3000		3000		3000		3000
Rapid traverse of sleeve( mm/min)	664	664		664		664		664
Power and speed of main motor	75KW 400-1200r/min
