Help CenterLOC Series Oil Country Lathe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China main ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LRT Series Roll Turning LatheNegotiableMOQ: 1 Set -
LOCK Series CNC Oil Country LatheNegotiableMOQ: 1 Set
-
LHHK Series CNC Heavy Duty Horizontal LatheNegotiableMOQ: 1 Set
-
LRTK Series CNC Roll Turning LatheNegotiableMOQ: 1 Set
-
BMK Series CNC Horizontal Boring and Milling MachinesNegotiableMOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Place of Origin
Tianjin, China
Brand Name
BMT
Model Number
LOC series
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

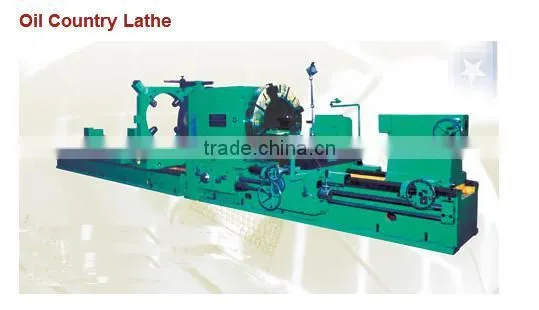

LOC series oil country lathe
Technical Specification:
Model |
LOC-1000 |
LOC-1200 |
LOC-1400 |
|
Max.swing .overbed |
φ 1000mm |
φ 1200mm |
φ 1400mm |
|
Max.swing over turret |
φ 640mm |
φ 800mm |
φ 1100mm |
|
Spindle bore |
φ 360mm |
φ 460mm |
φ 635mm |
|
Range of spindle speed |
6.3-315rpm |
6.3-315rpm |
5-250rpm |
|
Chuck diameter |
φ 1000mm |
φ 1000mm |
φ 1250mm |
|
MIN.clamping diameter of chuck |
φ 240 |
φ 260 |
φ 500 |
|
Metric thread |
44 |
1-120mm |
||
Whitworth |
37 |
30-11/8teeth |
||
Module threads |
46 |
0.5-60mm |
||
Diametrical thread |
46 |
0.5-60D.P |
||
Rapid traverse of turret |
3740mm/min |
1870mm/min |
||
Upper side rapid traverse |
935mm/min |
|||
Max.machining length of taper the scale |
300mm |
|||
Turning taper |
±1:4 |
|||
Diameter of tailstock sleeve |
φ 160mm |
|||
Power of main motor |
22KW |
30KW |
||
