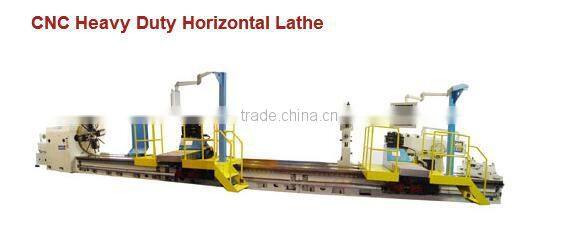

LHHK series CNC heavy duty horizontal lathe
- 0 per Month
- China main ports
- T/T
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Place of Origin: | Tianjin, China | Brand Name: | BMT | Model Number: | LHHK series |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
LHHK series CNC heavy duty horizontal lathe
Technical Specification:
Model | LHHK-1600 | LHHK-1800 | LHHK-2000 | LHHK-2200 | LHHK-2500 |
Max.swing over bed(mm) | 1600 | 1800 | 2000 | 2200 | 2500 |
Max.swing over carriage(mm) | 1250 | 1450 | 1650 | 1850 | 2250 |
Max.length of workpiece(m) | 3 - 16 | 3 - 16 | 3 - 16 | 3 - 16 | 3 - 16 |
Max.weight of workpiece between centers(t) | 32/40/50/63 | ||||
Width of Bed(mm) | 1600/2500 | ||||
Chuck diameter(mm) | 1600 | 2000 | 2500 | ||
Max.torque of face plate(KN.m) | 60 - 80 | ||||
Range of spindle speed(r/min) | 0.63-125 | 0.125 - 125 | |||
Section dimenison of tool shank(mm x mm) | 60 x 60 | 70 x 70 | |||
Max. cutting force of tool post(kg) | 50 | 70 | |||
Range of longitudinal feed(mm/min) | 1 - 1000 | ||||
Range of cross feed(mm/min) | 1 - 1000 | ||||
Rapid speed of longitudinal travel(mm/min) | 3000 - 6000 | ||||
Rapid speed of cross travel(mm/min) | 3000 - 6000 | ||||
Diameter of tailstock sleeve(mm) | 300 / 320 / 400 /500 | ||||
Power of main motor(kw) | DC75 | DC90 | DC110 |
