LRTK Series CNC Roll Turning Lathe

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

BMT(Tianjin) International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main ports

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Place of Origin Tianjin, China

Brand Name BMT

Model Number LRTK series

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

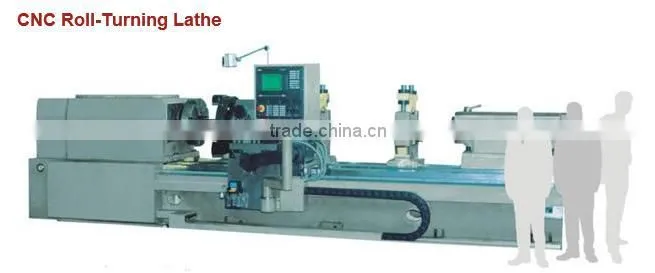

LRTK series CNC roll-turning lathe

Technical Specification:

Model		LRTK-400	LRTK-500	LRTK-630	LRTK-800
Max. sawing over bed	mm(in)	400(16)	500(20)	630(25)	800(32)
Maximum turning length	mm(in)	2500(100)		2500(100) 3200(128) 4000(160)
Maximum weight of workpiece	kg	2000	3000	6000 8000 10000
Width of the bed	mm(in)	67(26)		1100(44)
Diameter of spindle hole	mm(in)	100(4)		130(5.2)
Taper hole of spindle		No.120		No.140
Step of spindle speeds		Automatic4		Automatic2
Range of spindle speeds	r/min	2.5-400		2.5-250(2-200)
Main motor power	KW	22		37
Torque of servo motor -Zaxis	Nm	30(27)		41
Torque of servo motor -Xaxis	Nm	30(27)		41
Section of tool shank	mm(in)	32×32(1.28×1.28)		40×40(1.6×1.6)
No.of tool position		(Vert.)4/(Hor.)8		(Vert.)4/(Hor.)8
Time per one position	s	2.9(0.5)		2.9(0.5)
Repeatability		2″		2″
Travel of cross slide	mm(in)	200(8)	250(10)	350(14)	420(16.8)
Range of center rest	mm(in)	140-200 (5.6-8)	180-270 (7.2-10.8)	-	-
Longitudinal travel-Zaxis	mm/min	1-2000		1-2000
Cross travel-Xaxis	mm/min	1-2000		1-2000
Rapid traverse Z/X axis		Z:6000/X:4000		Z:5000/X:3000
Diameter of tailstock quill	mm(in)	120(4.8)		200(8)
Taper hole of tailstock quill		Morse No.6		Morse No.6
Travel of tailstock quill	mm(in)	250(10)		250
