LRT Series Roll Turning Lathe

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

BMT(Tianjin) International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main ports

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Place of Origin Tianjin, China

Brand Name BMT

Model Number LRT series

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

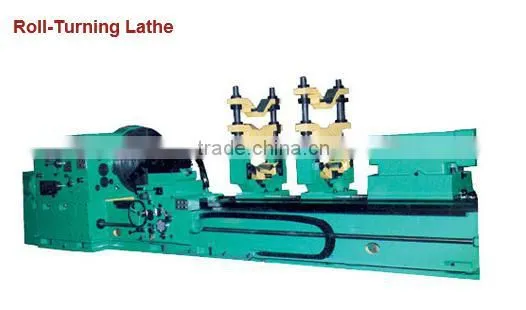

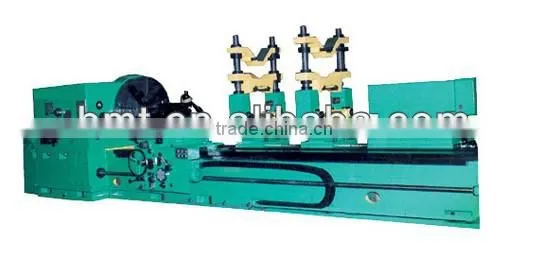

LRT series Roll-turning lathe

Technical Specification:

Model		LRT-400	LRT-500	LRT-630	LRT-800
Max.sawing over bed	mm(in)	400(16)	500(20)	630(25.2)	800(32)
Maximum turning length	mm(in)	2500(100)		2500(100),3200(128) 4000(160)
Maximum weight of workpiece	kg	2000	3000	6000 8000
Width of the bed	mm(in)	670(26)	670(26)	1020(40)	1020(40)
Diameter of spindle hole	mm(in)	35(1.4)		50(2)	50(2)
Taper hole of spindle		Morse No.6		80;1:7
Step of spindle speeds		12(Manual operating)		16(Manual operating)
Range of spindle speeds	r/min	2-88		1-73
Main motor power	KW	11		18.5	22
Rapid travelling speed of motor power	KW	0.75		1.1
Section of tool shank	mm(in)	80×25(3.2×1)
Swivel angle of tool post		±90°
Travel of cross slide	mm(in)	200(8)	250(10)	360(14.4)	400(16)
Range of center rest	mm(in)	φ140-200 (φ5.6-8)	φ180-270 (φ7.2-10.8)	φ220-320 (φ8.8-12.8)	φ300-480 (φ12-19.2)
Rapid travelling speed of transverse	mm/min	1500		1500
Rapid travelling speed of longitudinal	mm/min	2800		3600
Diameter of tailstock quill	mm(in)	120(4.8)		180(7.2),200(8)	180(7.2),200(8)
Taper hole of tailstock quill		Morse No.6		65; 1:7
Travel of tailstock quill	mm(in)	200(8)		260(10.4)
