Specifications
fast sale flexo printing machine 6 color1,stable,high quality and speed
2,suitable for plastic film, paper, aluminum foil etc
1. Machine Introduction

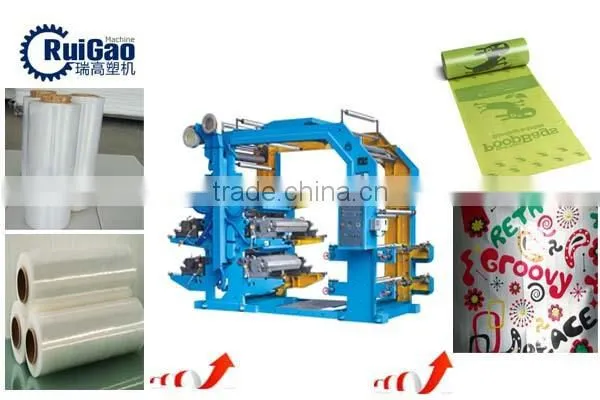

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass
paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.
2. Machine Advantages
1. We use stronger steel plate for machine body, which make machine more stable.
2. Helical gear for whole machines, which make the printing quality more accurate and precise.
3. EPC, which adjust the edge of film or paper.
4. Automatic tension controlling, easy to operate.
5. Longer heating oven, improve the printing speed.
6. Doctor blade, which make the ink more equal. Double doctor blade is optional.
7. Separate ink motor to control the ink roller.
8. Ink pump is optional.
3. Machine Parameters
Model of Machine |
YT-6600 |
YT-6800 |
YT-61000 |
YT-61200 |
Max.Width of Printing Material |
600mm |
800mm |
1000mm |
1200mm |
Max.Printing With |
560mm |
760mm |
960mm |
1160mm |
Length Range of Printed Product |
191-914mm |
191-914mm |
191-914mm |
191-914mm |
Max.Diameter of Roll Material |
φ450mm |
φ450mm |
φ450mm |
φ450mm |
Printing Speed |
5~50m/min |
5~50m/min |
5~50m/min |
5~50m/min |
Thickness of plate(Including Two-sides Glue Paper) |
2.38mm |
2.38mm |
2.38mm |
2.38mm |
Total Power |
10kw |
10kw |
11kw |
11kw |
Weight of Machine |
3500kg |
4200kg |
5000kg |
5500kg |
Overall Dimensions(mm) |
3900×1660×2950 |
3900×1860×2950 |
3900×2060×2950 |
3900×2260×2950 |
4. Machine Details
5. Machine Packing & Loading
6. Questions & Answers
7. Factory Appearance
8. Global Customers
9. CE Certification
10. Contact Person
