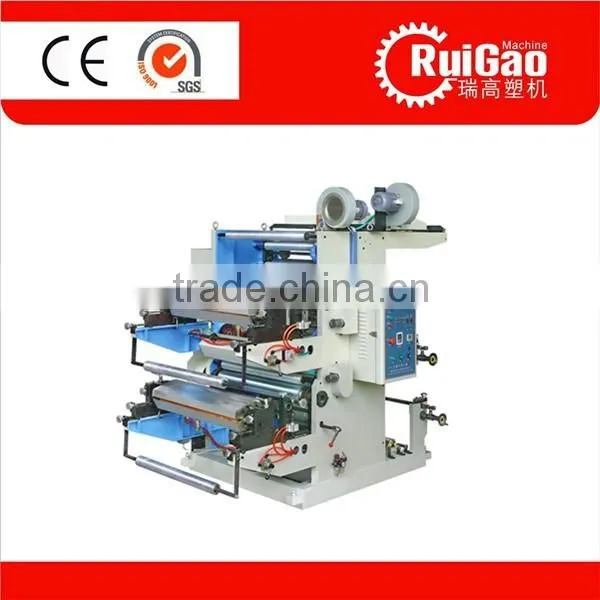

2 Color Flexo Plastic Printer In Wenzhou

2 Color Flexo Plastic Printer In Wenzhou photo-1
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Letterpress
Place of Origin Zhejiang, China
Brand Name RG
Model Number YT-2600
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade Automatic
Voltage 380v
Gross Power 8KW
Dimensions(L*W*H) 2500*1700*2200 mm
Weight 1.8t
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

2 Color Flexo Plastic Printer In Wenzhou



              2 Color Flexo Palstic Printer In Wenzhou

2 Color Flexo Plastic Printer In Wenzhou

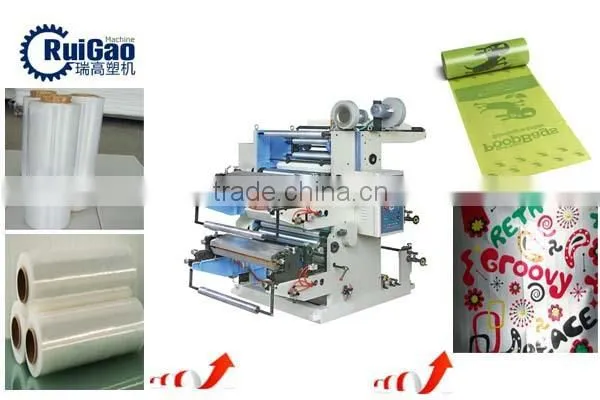

1. Machine Introduction

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass

paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,

supermarket handbag, vest bag and clothes bag, etc.



2. Machine Advantages

1. We use stronger steel plate for machine body, which make machine more stable.

2. Helical gear for whole machines, which make the printing quality more accurate and precise.

3. EPC, which adjust the edge of film or paper.

4. Automatic tension controlling, easy to operate.

5. Longer heating oven, improve the printing speed.

6. Doctor blade, which make the ink more equal. Double doctor blade is optional.

7. Separate ink motor to control the ink roller.

8. Ink pump is optional.



3. Machine Parameters

Type

YT-2600

YT-2800

YT-21000

YT-21200

Max.Effective Printing Width

560mm

760mm

960mm

1160mm

Max.Web Width

600mm

800mm

1000mm

1200mm

Max.Printing Speed

50m/min

50m/min

50m/min

50m/min

Max.Mechanical Speed

60 m/min

60 m/min

60 m/min

60 m/min

Max.Diameter of Roll Material

450mm

450mm

450mm

450mm

Internal Diameter of Roll Core

76mm

76mm

76mm

76mm

Rang of Repeat Printing Length

191-914mm

191-914mm

191-914mm

191-914mm

Accuracy of Registration

±0.5mm

±0.5mm

±0.5mm

±0.5mm

Plate Thickness (Both side adhesive included)

2.38mm

2.38mm

2.38mm

2.38mm

Heating Power

4Kw

6Kw

8Kw

10Kw

Total Power

8Kw

10Kw

12Kw

12Kw

Weight of Machine

1800kg

200kg

2200kg

2400kg

Overall Dimension(m)

2.5*1.7*2.2

2.5*1.9*2.2

2.5*2.1*2.2

2.5*2.3*2.2

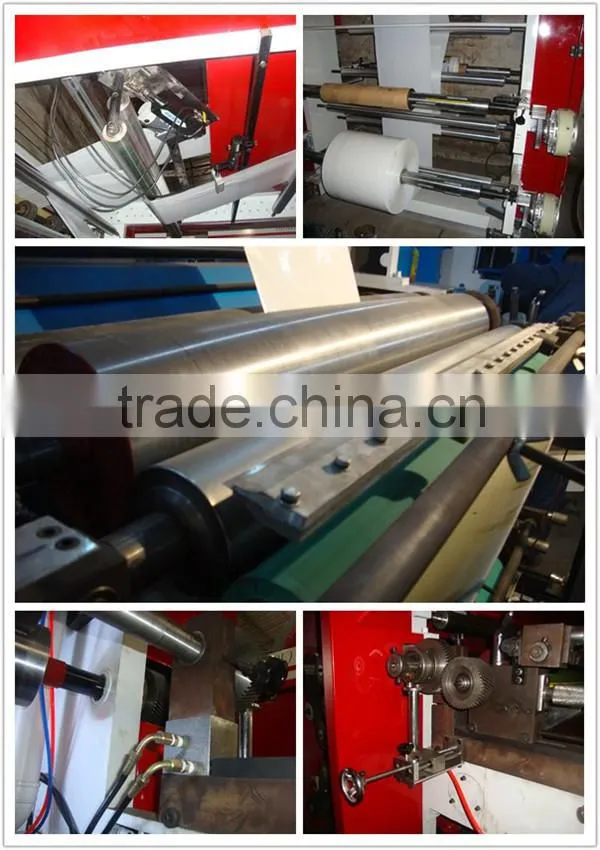

 4. Machine Details

2 Color Flexo Plastic Printer In Wenzhou

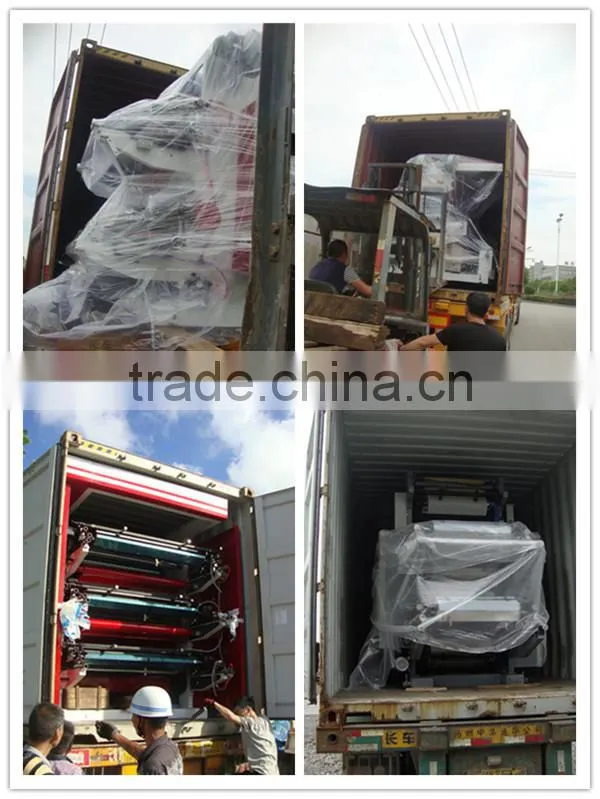

5. Machine Packing & Loading

2 Color Flexo Plastic Printer In Wenzhou



6. Questions & Answers

2 Color Flexo Plastic Printer In Wenzhou





7. Global Customers

2 Color Flexo Plastic Printer In Wenzhou



8. CE Certification

2 Color Flexo Plastic Printer In Wenzhou
