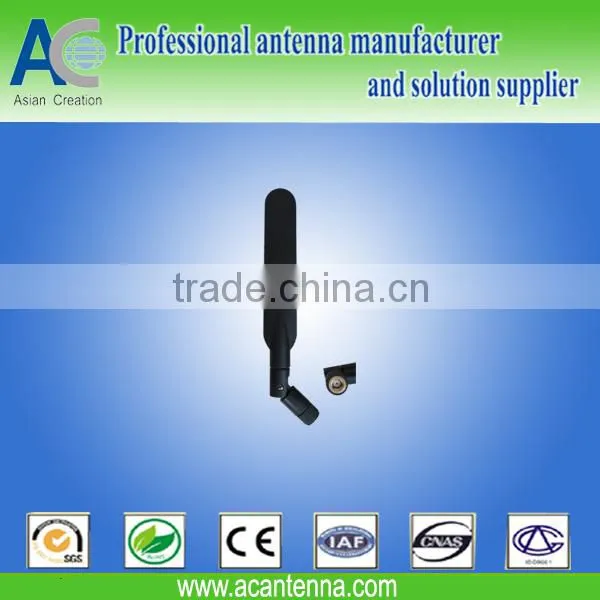

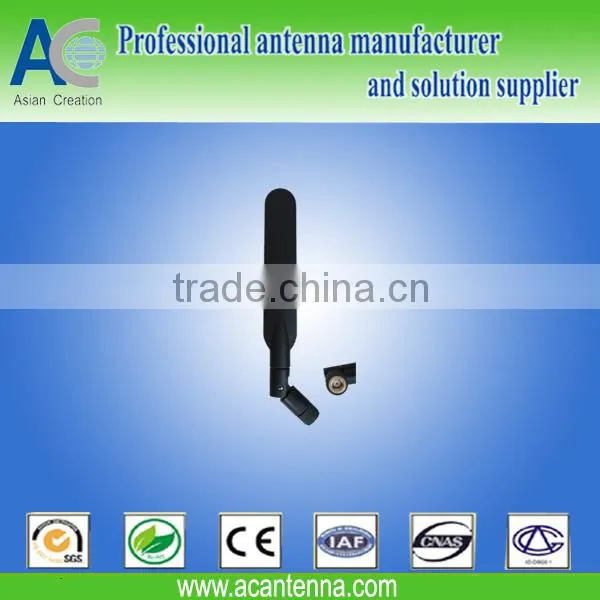

Dual band terminal 2.4GHz 5.8GHz Antenna
Applications:
for 2. 4ghz spread spectrum of communications mobile
terminal design of the secondary benefits of antenna an
antenna body. the special rubber in beauty for installing.
Features:
antenna for 2. 4g system of communication terminals. the antenna
design of the production structure and beauty for installing.
Electrical Specifications: | |
Frequency Range |
2.4/5.2/5.8GHz |
Gain |
4/4.5/5dBi |
VSWR |
≤1.8/2 |
Polarization |
Vertical |
Impedance |
50ohm |
Maximum Input Power |
50W |
Connector |
SMA Male |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications: | |
Antenna Dimension |
Φ21×160mm |
Weight |
38g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
