Specifications
Indoor Panel Antenna for 2.4g Signal Booster Repeater Amplifier1Freq:800-960/1710-2500MHz
2.Gain:7/10dBi
3.Size:207*180*45mm

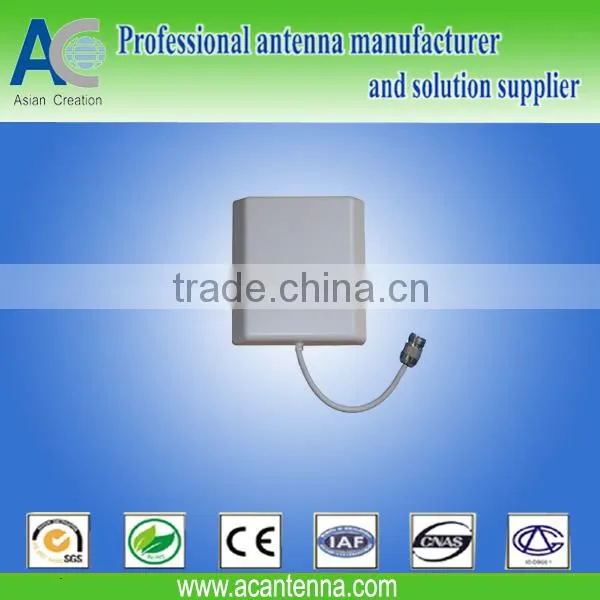

Indoor Panel Antenna for 2.4ghz Signal Booster Repeater Amplifier
Applications:
* 2.4GHz ISM band
* 2.4GHz WLAN system
* WiFi system
* Point to point and point to multipoint
Features:
* Low VSWR
* Compact size, Good appearance
* Strong adaptability of environment
* Designed by broadband technology
* DC grounded
Electrical Specifications | |
Model |
AC-D24W10 |
Frequency Range |
2400-2483MHz |
Gain |
14dBi |
VSWR |
≤1.5 |
Polarization |
Vertical |
Horizontal Beamwidth |
65° |
Vertical Beamwidth |
35° |
F/B Ratio-dB |
>25 |
Impedance |
50ohm |
Maximum Input Power |
100W |
Connector |
N Female |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications | |
Antenna Dimension |
207*180*45mm |
Weight |
500g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
