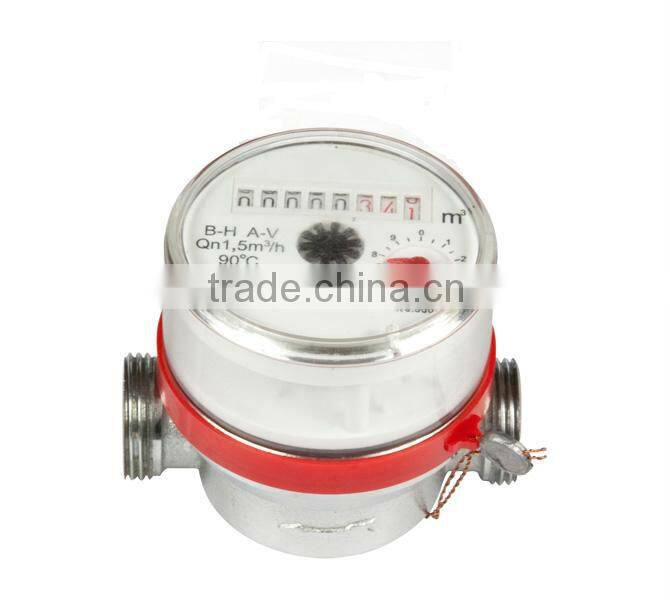

LXSG-13D House Water Meter

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Port NINGBO
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	OEM
Model Number	LXSG-15

Product Description

Specifications

1,Single jet
2,Dry type, antimangnetic
3,cold water meter,hot water meter

Description

This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.

Compliance with standard: ISO 4064 Class B

Feature
•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Single-jet
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class B Standard
•Inner or outer adjusting device for option
•Small in size and light in weight

MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
13	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	1.8	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70

INDICATING ERROR

At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs).

DIMENSIONS AND WEIGHT

Meter size Dia DN (mm)	L length	B Width	H Height	Connecting Thread D	Weight kg
Meter size Dia DN (mm)	mm			Connecting Thread D	Weight kg
13	110	80	80	G3/4"B	0.7
20	130	80	80	G1"B	0.95
25	160	80	93	G13/4"B	1.4

Working condition
Water temperature:≤50°C for cold water meter
Water temperature:≤90°C for hot water meter
Working pressure:≤1.6Mpa
