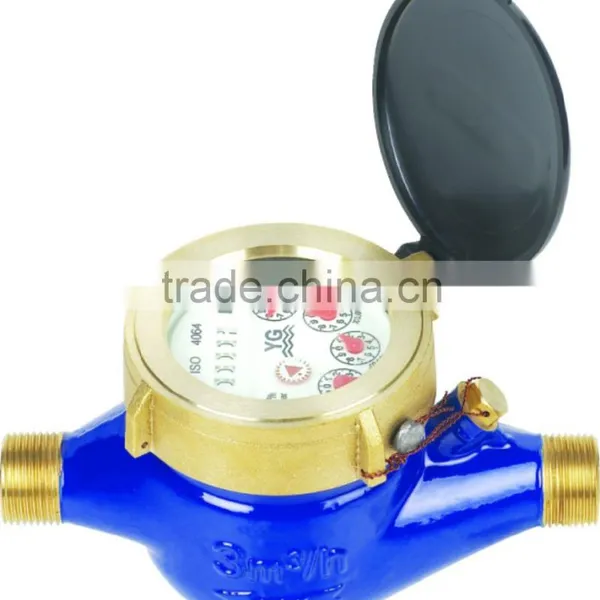

Multi Jet Brass Water Meter ( 1/2" to 2")

Multi Jet Brass Water Meter ( 1/2" to 2") thumbnail-1
Multi Jet Brass Water Meter ( 1/2" to 2") photo-1
US$ 9 - 10 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YG
Model Number:
LXSG-15E-50E
Contact Supplier Request Quote Chat Now
Ningbo Yonggang Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YG
Model Number LXSG-15E-50E

Description



This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.

Compliance with standard: ISO 4064 Class B

Feature



•Dry-dial
•Multi-jet

•Brass body
•Sensitive&Reliable
•Measuring accuracy conform to ISO 4064 Class B Standard.
•Universal use

MAIN TECHNICAL DATA

Meter size
Dia DN (mm)

Class

Qs Overload Flow

Qp Nominal Flow

Qt Transitional Flow

Qmin Min Flow

Min Reading Lectura

Max Reading Lectura

m3/h

1/h

m3

15

A

3

1.5

150

60

0.0001

99999

B

120

30

20

A

5

2.5

250

100

0.0001

99999

B

200

50

25

A

7

3.5

350

140

0.0001

99999

B

280

70

32

A

12

6.0

600

240

0.0001

99999

B

480

120

40

A

20

10

1000

400

0.001

99999

B

800

200

50

A

30

15

4500

1200

0.001

99999

B

3000

450



INDICATING ERROR



At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)



DIMENSIONS AND WEIGHT



Meter size
Dia DN (mm)

L
length

B
Width

H
Height

Connecting Thread
D

Weight
kg

mm

15

165

99

104

G3/4"B

1.5

20

190

99

106

G1"B

1.7

25

225

104

120

G11/4"B

2.4

32

230

104

120

G11/2"B

2.7

40

245

125

155

G2"B

4.5

50

300

125

155

G21/2"B

7.2

280

165

175

GB4216.4
D=165
D1=125
Flange connecting conform to
GB4216.4
D=165
D1=125

14



Working condition:



Cold Water temperature ≤40°C

Hot  Water temperature ≤90°C

Working pressure≤1.0Mpa









If you are interested in our water meter, please feel free to contact us!
