Water Meter Multi Jet LXSG-15E-50E

Water Meter Multi Jet LXSG-15E-50E thumbnail-1
Water Meter Multi Jet LXSG-15E-50E photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YG
Model Number:
LXSG-15E-50E
Contact Supplier Request Quote Chat Now
Ningbo Yonggang Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YG
Model Number LXSG-15E-50E

Specifications

Water meter multi jet
1, Dry type
2, Cold or hot water meter for option
3, Iron body and brass connector include

Description

This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.

Compliance with standard: ISO 4064 Class B

Feature


•Dry-dial
•Multi-jet
•Sensitive&Reliable
•Measuring accuracy conform to ISO 4064 Class B Standard.
•Universal use

MAIN TECHNICAL DATA

Meter size
Dia DN (mm)

Class

Qs Overload Flow

Qp Nominal Flow

Qt Transitional Flow

Qmin Min Flow

Min Reading Lectura

Max Reading Lectura

m3/h

1/h

m3

15

A

3

1.5

150

60

0.0001

99999

B

120

30

20

A

5

2.5

250

100

0.0001

99999

B

200

50

25

A

7

3.5

350

140

0.0001

99999

B

280

70

32

A

12

6.0

600

240

0.0001

99999

B

480

120

40

A

20

10

1000

400

0.001

99999

B

800

200

50

A

30

15

4500

1200

0.001

99999

B

3000

450



INDICATING ERROR



At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to



DIMENSIONS AND WEIGHT



Meter size
Dia DN (mm)

L
length

B
Width

H
Height

Connecting Thread
D

Weight
kg

mm

15

165/190

99

104

G3/4"B

1.5/1.6

20

190/195

99

106

G1"B

1.7/1.8

25

260/225

104

120

G11/4"B

2.6/2.4

32

260/230

104

120

G11/2"B

2.8/2.7

40

300/245

125

155

G2"B

5.4/4.5

50

300

125

155

G21/2"B

7.2

280

1 ≤50°C 65

175

GB4216.4
D=165
D1=125
Flange connecting conform to
GB4216.4
D=165
D1=125

14



Working condition:



Cold Water temperature ≤50°C

Hot  Water temperature ≤90°C

Working pressure≤1Mpa

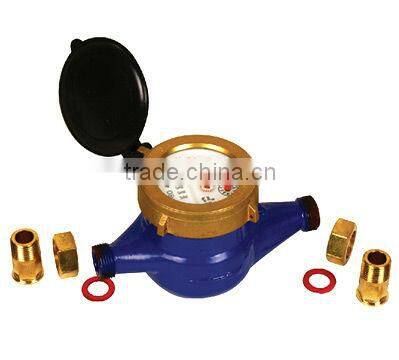

Water meter multi jet LXSG-15E-50E
