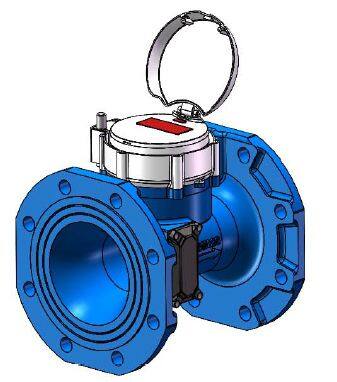

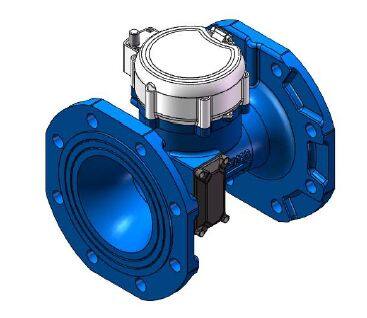

Cast Iron Ultrasonic Flowmeter DN125

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Model Number:

DFW

Dynaflox Shanghai Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

7 days

Place of Origin China

Model Number DFW

Features

l Superior hydraulic design, no moving parts, zero wear, eliminate maintenance

l Advanced ultrasonic technology for precise and ultra reliable metering

l Extremely wide turndown ratio (R=500)

l Excellent long-term stability and reliability

l Extremely sensitive and accurate in low flow

l Battery powered - above 10 years lifetime

l Body materials - epoxy coated cast iron, stainless steel suitable for utilities, waterworks, commercial, industrial, agricultural

as well as ultrapure water, sea water and other corrosive fluid metering application

l Fully submersible design (IP68)

Maximum Working Pressure	1.6MPa
Temperature Class	T30, T50 (Higher temperature customizable)
Accuracy Class	Class 2 (ISO4064:2005, Class 1 customizable)
Battery Powered	above 10 years lifetime (20 years customizable)
Ingress Protection	IP68
Environment Temperature	-20~70^oC, ≤100%RH
Pressure Loss	△p16
Climatic and Mechanical Environment	Class C

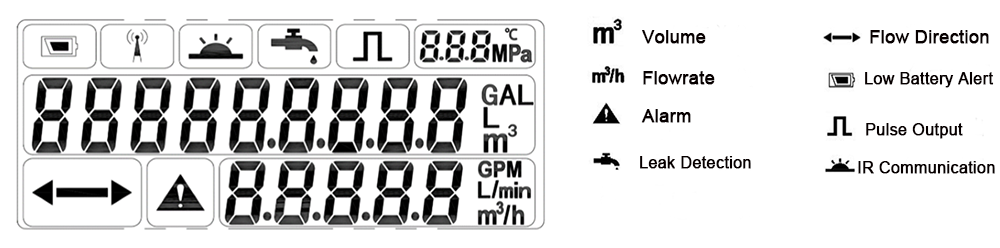

Display	9 digit LCD Display + prompts Cumulative flow (m³, L, GAL), Instantaneous flow (m³/h, L/min, GPM), Flow direction, Low battery alarm, Output mode, Leak detection, etc.
Connections	Flanges according to EN1092-1/ASME B16.5-150 (Other standards customizable)
Electromagnetic Environment Class	E2
Flow Profile Sensitivity	U0/D0
Date Storage	Store the data in last 7×24h, 365 days and 72 months
Output (optional)	RS485 (ModBus), M-Bus, OCT pulse, 4-20mA
Accessories	Wireless GPRS/GSM, Wireless handheld operator
Related Patents	ZL 2012 2 0007226.2, ZL 2015 2 0007267.3 and ZL 2015 2 0007268.8
