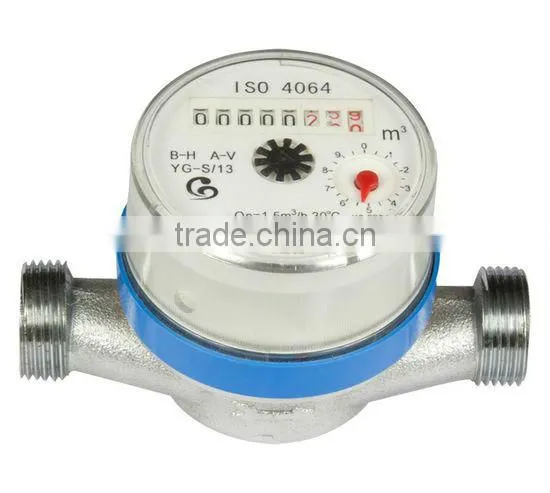

Single Jet Dry Type Water Meter

Single Jet Dry Type Water Meter thumbnail-1
Single Jet Dry Type Water Meter photo-1
US$ 7.3 - 7.6 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
LXSG-13D
Contact Supplier Request Quote Chat Now
Ningbo Yonggang Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number LXSG-13D

Specifications

This range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a res

Description

This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.

Compliance with standard: ISO 4064 Class B

Feature



•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Single-jet
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class B Standard
•Inner or outer adjusting device for option
•Small in size and light in weight

MAIN TECHNICAL DATA



Meter size
Dia DN (mm)

Class

Qs Overload Flow

Qp Nominal Flow

Qt Transitional Flow

Qmin Min Flow

Min Reading Lectura

Max Reading Lectura

m3/h

1/h

m3

13

A

3

1.5

150

60

0.0001

99999

B

120

30

20

A

5

2.5

250

100

0.0001

99999

B

200

50

25

A

7

3.5

350

140

0.0001

99999

B

280

70






INDICATING ERROR


At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to


DIMENSIONS AND WEIGHT

Meter size
Dia DN (mm)		 L
length		 B
Width		 H
Height		 Connecting Thread
D		 Weight
kg
mm
13 110 80 80 G3/4"B 0.7
20 130 80 80 G1"B 0.95
25 160 80 93 G13/4"B 1.4


Working condition

Water temperature:≤50°C for cold water meter
Water temperature:≤90°C for hot water meter

Working pressure:≤1.6Mpa
