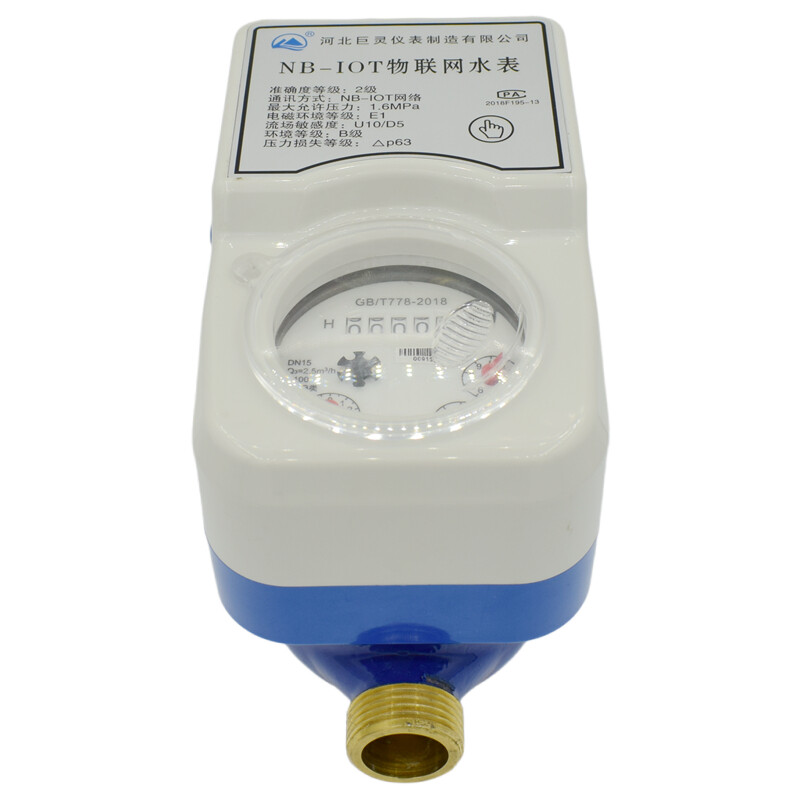

Wireless Remote Reading Lora/ Lorawan/ Nb-Iot/GPRS Smart Prepaid Water Metering

Company profile

China J-L smart meter Co., Ltd. was founded in 2008 and is located in Zhangjiakou City, Hebei Province, China. The factory was covering 20 acres, an area of 20,000 square meters. Our company is a high-tech enterprise integrating R&D, production, sales, and after-sales. The main products are water meters, electric meters, gas meters, heat meters, other metering instruments, and NB-IoT/Wireless remote transmission modules. In addition, we can also provide customers with overall renovation plans and suggestions for instrument projects. The company has successively passed the EU market CE product certification, FC certification, ISO9001:2015 quality system certification, ISO14001:2015 environmental management system certification, ISO45001:2018 occupational health and safety management system certification, computer software copyright registration certificate, multiple patents Certificate and high-tech enterprise certificate, and won the title of well-known enterprise in Zhangjiakou. The company has offices and subsidiaries in important cities such as Beijing, Tianjin, Xi'an, and Hangzhou. We have 25 R&D personnel, more than 200 employees, and an annual output of 1.5 million sets of various meters. Our company's aim is to put product quality and service first and provide each partner with competitive products and services for long-term win-win results.

Products Features

This range of water meter is used to measure the total quantity of cold(hot) potable water  which consumed in household or a resident unit, passing through the pipeline. Compliance with standard: ISO4064 Class B.

·Dry-dial, magnetic drive, Resistance to exterior magnet interference

·Multi-jet

·Iron body，Brass cover and couplings

·Selected high quality materials for steady&reliable characteristic

·Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a   long term service ·Measuring accuracy conform to ISO4064 class B Standard

·Universal use, easy for interchange and maintenance.

·Cold water temperature: ≤40℃

·Hot water temperature: ≤90℃

·Working pressure: ≤1.6Mpa

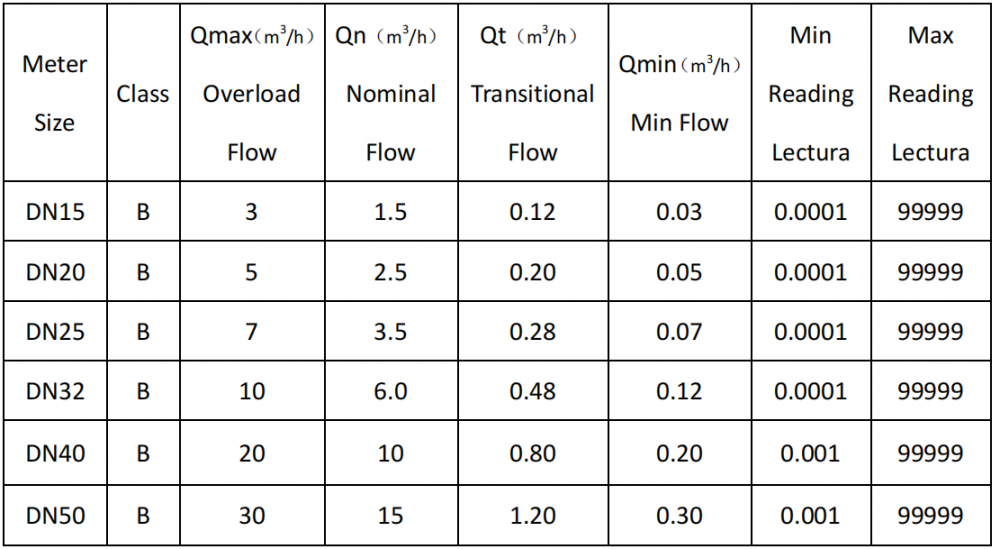

Technical Parameters

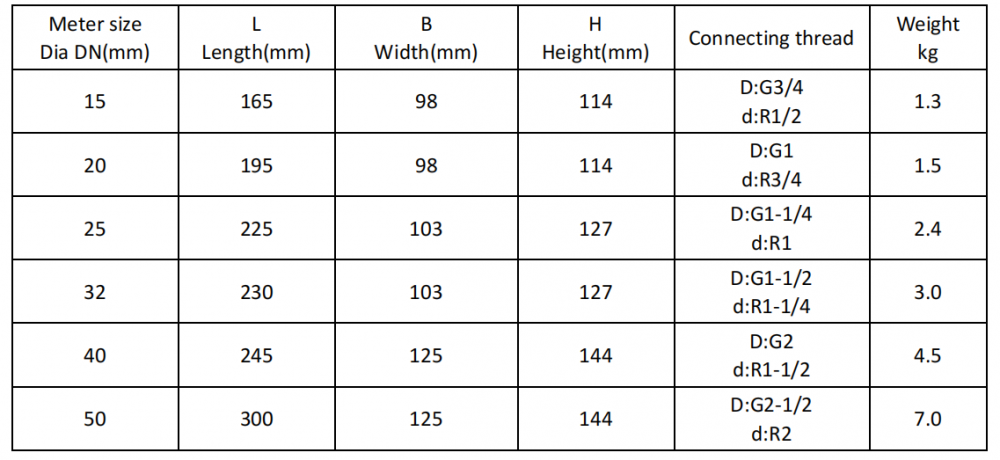

Size

Packing
