CE Approved Gas Spring L Sealer And Shrink Wrapper
- Shanghai/Ningbo
- PayPal
You May Like
Product Details
| Condition | New | Application | Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical | |
| Packaging Type | Cartons | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 50Hz | |
| Place of Origin | Zhejiang, China | Brand Name | Yongxin | |
| Model Number | BTH-450+BM-500 CE Approved Gas Spring L Sealer And Shrink Wrapper | Weight | 800kg | |
| Dimension(L*W*H) | 3850*1500*1300mm | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

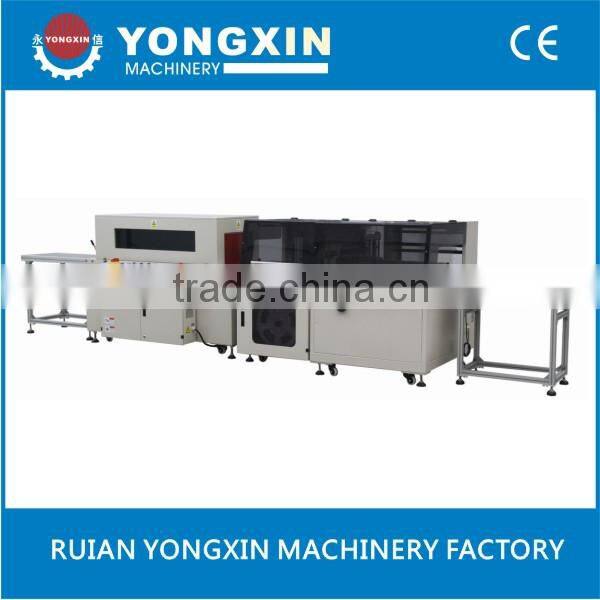

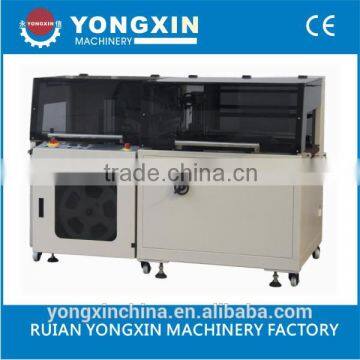

CE Approved Gas Spring L Sealer And Shrink Wrapper
2. Uses: Shrink tunnel
Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring, ceramics, beverge and beer etc.
CE Approved Gas Spring L Sealer And Shrink Wrapper

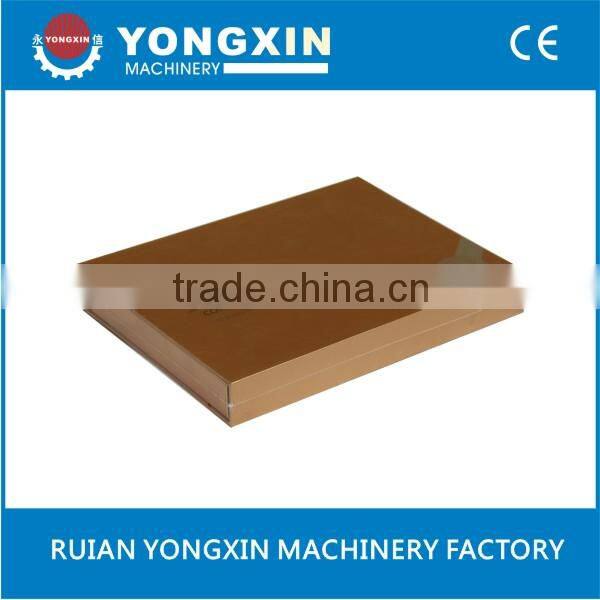

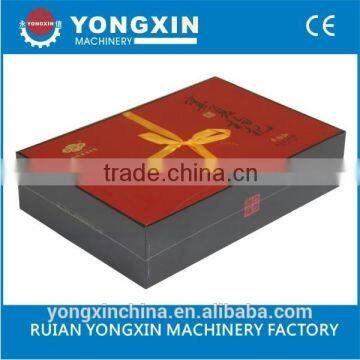

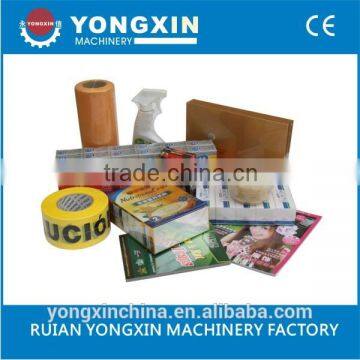

3. Packing result: Shrink tunnel
CE Approved Gas Spring L Sealer And Shrink Wrapper
4. Performance Characteristics: Shrink tunnel
1.The machine adopts imported touching screen,on which all settings and operation can be done. Meanwhile,various product data can be stored in advance,and operator only to select parameters from the computer while usage.
2.According to different collocations for the machine and different products, the max packing speed is up to 80pcs/min.
3.Constant temperature heat sealing and cutting system is suitable for PE. POF etc, industrial standard shrink films, the seal is firm and nice, especially applicable for POF film, adjust the conveyor with the head wheel for packing products of different size. The reliability is higher and easier to operate it.
4.The front feed in systems speed is adjustable, combines a worktable at the end of the tunnel, makes whole machine highly automatic, it runs automatically without an operator comes true.
5.BM-500L Hi-speed hot air circulating shrink tunnel adopts roller type conveyor, the rollers are covered by silicone gel pipe, they roll automatically, also the conveyor can use Teflon mesh belt or S.S. mesh belt instead of rollers. When shrink PE film, need not the rollers roll, easy to convert it by the handle at the end of the tunnel.
CE Approved Gas Spring L Sealer And Shrink Wrapper

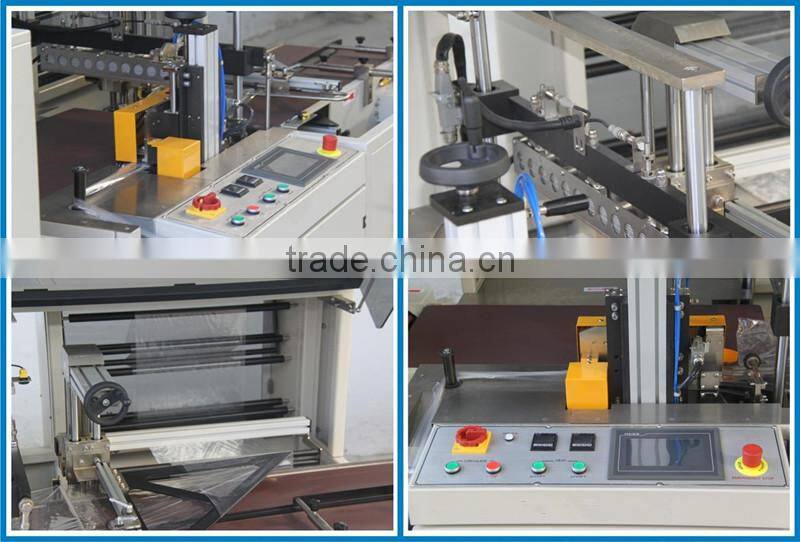

5. Detail of Machine: Shrink tunnel
CE Approved Gas Spring L Sealer And Shrink Wrapper
6. Main Technical Parameters: Shrink tunnel
Model | BTH-450 | BM-500L |
Max Packing Size | (L)No limited (W+H)≤400mm (H)≤130mm | (L)1500*(W)450*(H)250mm |
Max sealing Size | (W+H)≤450mm | (L)1500*(W)500*(H)300mm |
Packing Speed | 30~80 packs/min | 30~80 packs/min |
Electric Supply & Power | 380V/50Hz 3kw | 380V/50Hz 16kw |
Max Current | 10 A | 32A |
Air Pressure | 5.5kg/cm3 | / |
Weight | 800kg | 650kg |
Overall Dimensions | (L)2050*(W)1500*(H)1300mm | (L)1800*(W)1100*(H)1300mm |
CE Approved Gas Spring L Sealer And Shrink Wrapper
7. Spare part list:
| No. | Item | Brand | Qty |
| 1 | Cutting knife servo motor | SIEMENS(Germany) | 1 |
| 2 | Product feeding motor | TPG(Japan) | 1 |
| 3 | PLC | OMRON (Japan) | 1 |
| 4 | servo motor driver | SIEMENS(Germany) | 1 |
| 5 | product feeding inverter | OMRON (Japan) | 1 |
| 6 | Breaker | SCHNEIDER(France) | 1 |
| 7 | Temperature controller | OMRON (Japan) | 1 |
| 8 | side sealing cylinder | FESTO (Germany) | 1 |
| 9 | Horizontal ,vertical sensor | BANNER(USA) | 4 |
| 10 | Sealing knife | DAIDO(Japan) | 1 |
CE Approved Gas Spring L Sealer And Shrink Wrapper

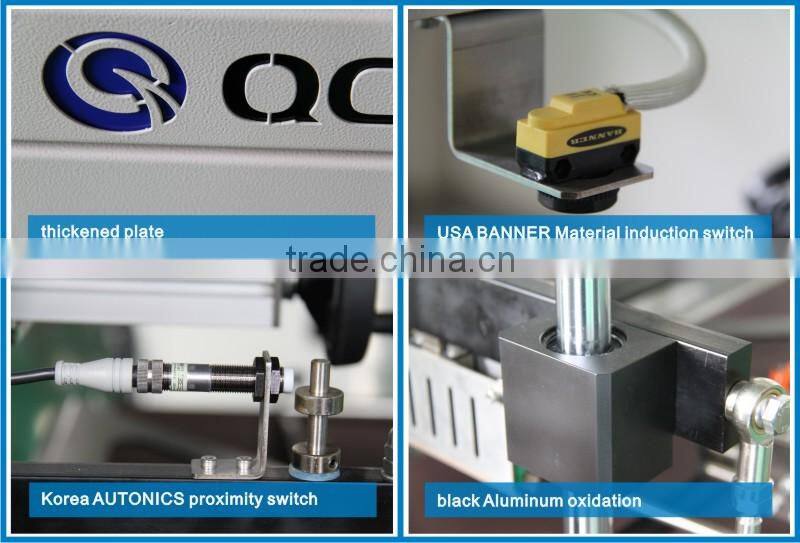

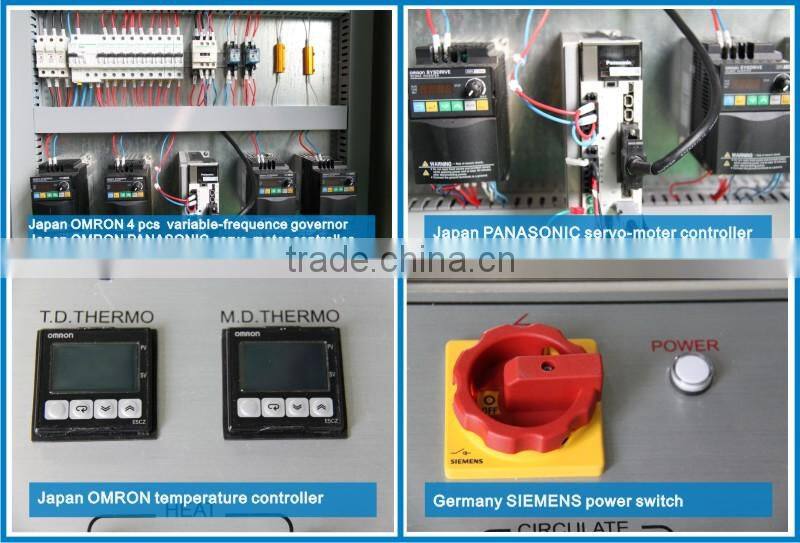

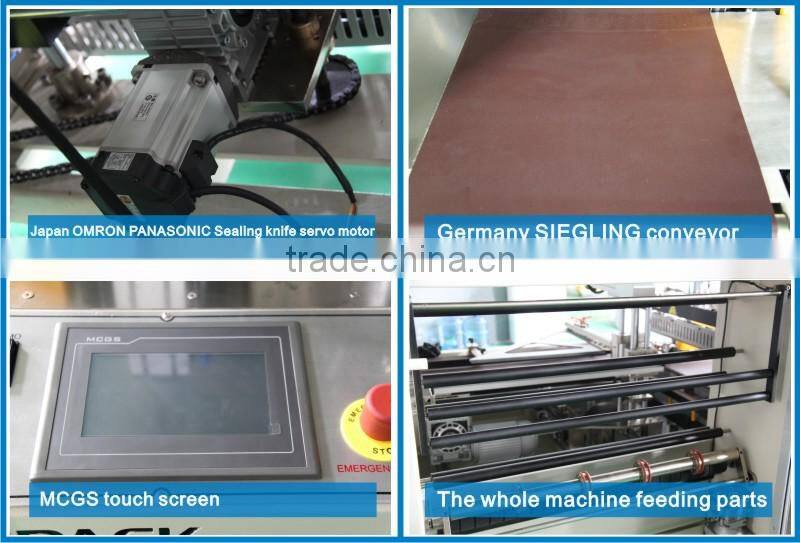

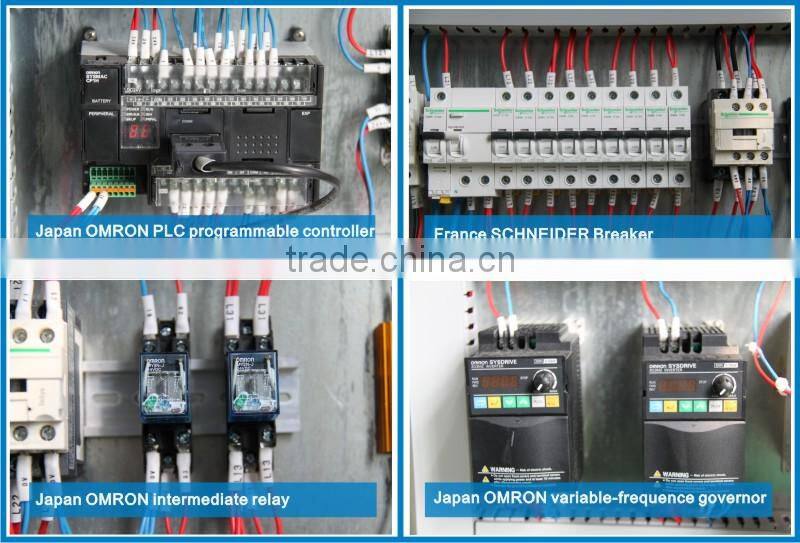

8. Picture of spare part:
part one:
CE Approved Gas Spring L Sealer And Shrink Wrapper
part two:
CE Approved Gas Spring L Sealer And Shrink Wrapper
part three:
CE Approved Gas Spring L Sealer And Shrink Wrapper
part four:
CE Approved Gas Spring L Sealer And Shrink Wrapper

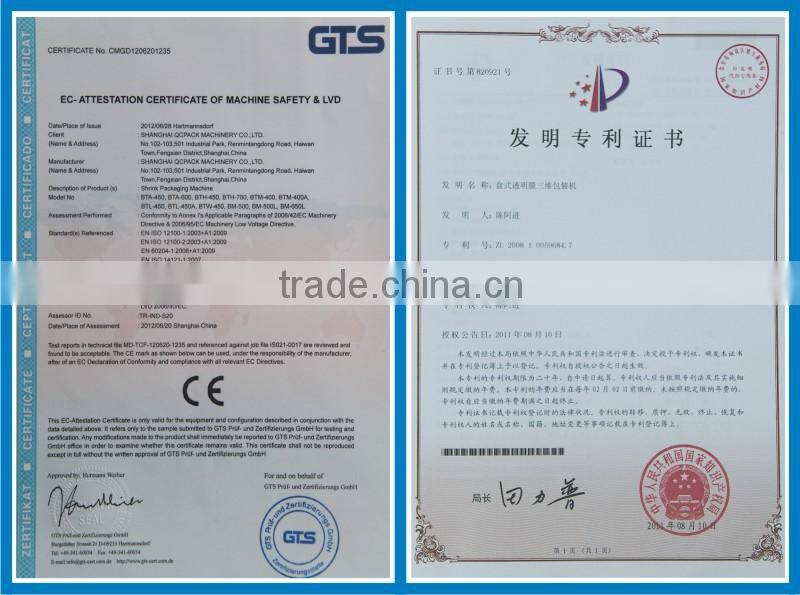

9.Certificate of CE and Patent:
CE Approved Gas Spring L Sealer And Shrink Wrapper
10. Packaging and Shipping:

CE Approved Gas Spring L Sealer And Shrink Wrapper
11. Warranty: One year limited.
Wearing parts guarantee within a year.
CE Approved Gas Spring L Sealer And Shrink Wrapper
12. Ruian Yongxin Machinery Factory:

CE Approved Gas Spring L Sealer And Shrink Wrapper
13. Our exhibition:
CE Approved Gas Spring L Sealer And Shrink Wrapper

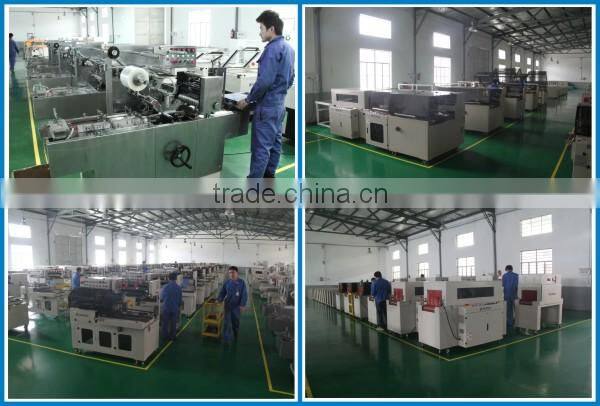

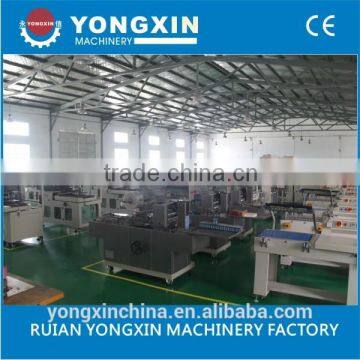

14. Machines in the workshop:
CE Approved Gas Spring L Sealer And Shrink Wrapper
15. Equipment in workshop:
CE Approved Gas Spring L Sealer And Shrink Wrapper
16. Contact us:
If you wanna know more information about our machines, welcome to contact us and visit our factory any time!!
CE Approved Gas Spring L Sealer And Shrink Wrapper
