RF Transmitter and Receiver Module switching signal output with remote controller (2 buttons on and off ) 3.3v-5v

We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!

-----------------------------------------------------------------------------------------------------------------PRODUCT FEATURES

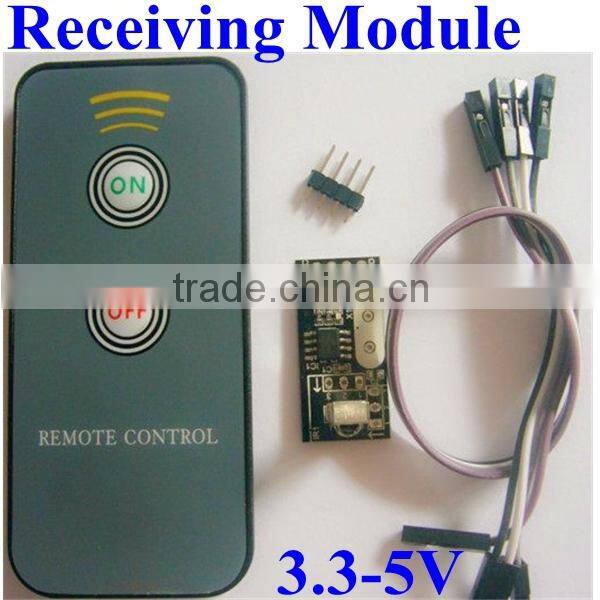

  An external quartz crystal oscillator operating voltage of the module to 3V-5V stable version is ideal for battery-powered environment, with our remote control distances of up to 8 m, Board size 15*30mm, with LED status indicator lights on the Board, boards with 3mm mounting holes is easy to install, while receiving the first part provides three different installation methods for ease of use.

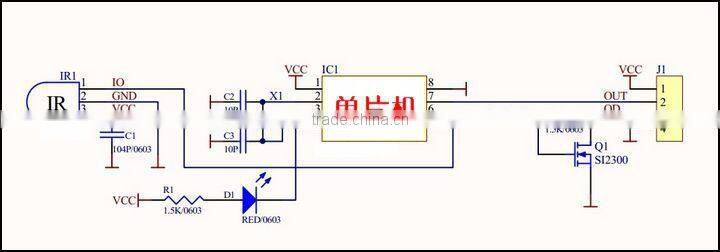

Module interface: VCC power supply power supply cathode cathode 3.3-5V,GND, output 5V OUT high and low logic level signals, and OD drive output pin (open drain pin for MOS tube output modes that absorb the loads up to 20V1A and keep pace with OUT foot action).

Remote control simple description:

1. the receiver power on by default after the output is low (OUT: low level OD: low level)

2. press the remote control "ON" button, the receiver output goes high, and maintained it, while indicating LED lights (OUT: high level), and then press the "ON" button, the receiver module is no longer changed,

3. press the remote control "OFF" button, the receiver output immediately reach a low level, and maintained it, while indicating LED light goes out (OUT: active low), then press "OFF" button receiver module is no longer changed

4. the receiver module suite works for: remote control "ON" key control receiver module "on" (output OUT from low level to high level); remote control of the "OFF" key control receiver module "off" (the output OUT from high to low level)
5. the receiving module also provides other high power drive circuit through the output of the receiver module "high-low" level, MOS management controls "turn-on" and "cutoff", achieve the effect of driving external power devices (MOS maximum drive capacity to 20V, 1A)
