Original IC RC522 access control ic card reader RFID board accept paypal

Specifications

We produce MODULE ! CUSTOM-MADE module is OK! Our factory produce your own board! Change / modification is accepted!

Factory price RF module for IC card mifare1 S50 mifare1 S70 mifare UltraLight mifare Pro mifare Desfire 13.56MHz

-----------------------------------------------------------------------------------------------------------------

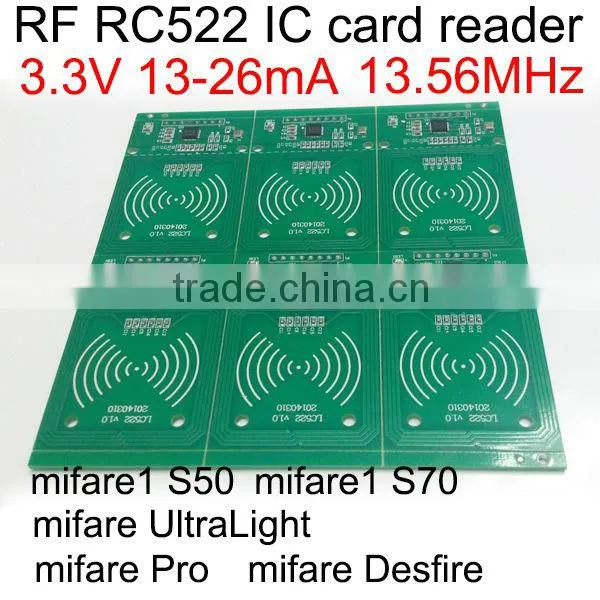

PRODUCT PICTURE

------------------------------------------------------------------------------------------------------------------
PRODUCT FEATURES

The MF522-AN module is designed by the original chip Philips MFRC522 card reading circuit, convenient use, low cost, suitable for the development of equipment, card reader development of advanced applications such as users, the need for user RF card terminal design / production. This module can be directly incorporated into a variety of card reader mould. Module with voltage of 3.3V, through several lines of the simple SPI interface can directly with the user of any CPU motherboard connected communication module, can guarantee the stable and reliable work, long reading distance;

Working current: 13 26mA/ DC 3.3V

Idle current: 10-13mA/ DC 3.3V

Dormancy current: <80uA

The peak current: <30mA

Operating frequency: 13.56MHz

Card type: S50, Mifare1 support Mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire

Physical characteristics of the product: size: 40mm x 60mm

Environment temperature: -20 - 80 degrees Celsius

Environmental storage temperature: -40 - 85 degrees Celsius

The relative humidity of the environment relative humidity: 5% - 95%

The data transmission rate: the maximum 10Mbit/s

-----------------------------------------------------------------------------------------------------------------
SHIPPING TERMS

1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST

2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.

 ------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS

1.We accept PAYPAL, TT, WESTERN UNION, ESCROW

2.Commission:
   *Paypal: total sum *0.041
   *Escrow: total sum *0.05
   *TT: $28-$45(according to amount)
   *Western union: $0

-------------------------------------------------------------------------------------------------------------------
GUARANTEE PERIOD

    3 Months, if the quality have any problems, We have a good after sale

service team will slove the quality problems for you.

1.If you test the products and it doesn't work, pls keep it and send it to us in

   1 month, we will send the good one to you with the following order.

2.If the product is already used by you, then no warranty.

3.If the product is broken by man-made, then no warranty.

----------------------------------------------------------------------------------------------------------------------
