RC522 RFID module with S50 White Card and key ring RF sensor 13.56MHz

Specifications

We produce MODULE ! CUSTOM-MADE module is OK! Our factory produce your own board! Change / modification is accepted!

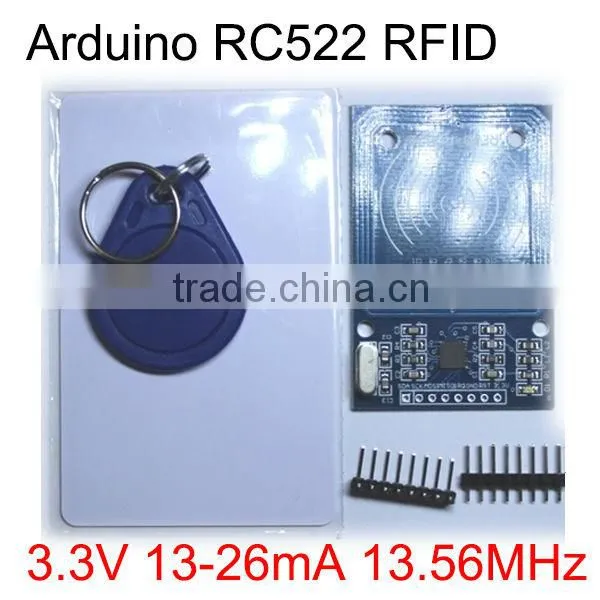

RC522 RFID RF IC Card Inductive Module + S50 White Card + Key Ring RF sensor

-----------------------------------------------------------------------------------------------------------------
PRODUCT PICTURE

------------------------------------------------------------------------------------------------------------------
PRODUCT FEATURES

MF RC522 is applied to 13.56MHz contactless communication high integrated degree, the read-write card chip, NXP company for the "three table" application introduced a low voltage, low cost, small volume of the non-contact card chip to read and write, smart instrumentation and portable handheld device developed by a better choice. MF RC522 makes use of the modulation and demodulation concept advanced, fully integrated with 13.56MHz in all types of passive non-contact communication mode and protocol. To support 14443A compatible transponder signal. Digital processing of ISO14443A frames and error detection. In addition, also supports fast CRYPTO1 encryption algorithm, MIFARE language test series products. MFRC522 supports MIFARE series high-speed non-contact communication, bidirectional data transfer rate up to 424kbit/s. As a high integrated 13.56MHz card reader series chip family new members, MF RC522 and MF RC500 and MF RC530 have many similarities, but also have many characteristics and differences. It is with the host communication using SPI mode, to reduce the connection, narrow PCB volume, reduce costs.

The MF522-AN module is designed by the original chip Philips MFRC522 card reading circuit, convenient use, low cost, suitable for the development of equipment, card reader development of advanced applications such as users, the need for user RF card terminal design / production. This module can be directly incorporated into a variety of card reader mould. Module with voltage of 3.3V, through several lines of the simple SPI interface can directly with the user of any CPU motherboard connected communication module, can guarantee the stable and reliable work, long reading distance;

Working current: 13 26mA/ DC 3.3V

Idle current: 10-13mA/ DC 3.3V

Dormancy current: <80uA

The peak current: <30mA

Operating frequency: 13.56MHz

Card type: S50, Mifare1 support Mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire

Physical characteristics of the product: size: 40mm x 60mm

Environment temperature: -20 - 80 degrees Celsius

Environmental storage temperature: -40 - 85 degrees Celsius

The relative humidity of the environment relative humidity: 5% - 95%

The data transmission rate: the maximum 10Mbit/s

-----------------------------------------------------------------------------------------------------------------
SHIPPING TERMS

1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST

2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.

 ------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS

1.We accept PAYPAL, TT, WESTERN UNION, ESCROW

2.Commission:
   *Paypal: total sum *0.041
   *Escrow: total sum *0.05
   *TT: $28-$45(according to amount)
   *Western union: $0

-------------------------------------------------------------------------------------------------------------------
GUARANTEE PERIOD

    3 Months, if the quality have any problems, We have a good after sale

service team will slove the quality problems for you.

1.If you test the products and it doesn't work, pls keep it and send it to us in

   1 month, we will send the good one to you with the following order.

2.If the product is already used by you, then no warranty.

3.If the product is broken by man-made, then no warranty.

----------------------------------------------------------------------------------------------------------------------
CONTACT US

SKYPE:aimeehe2011  Cellphone:13760273376
