Home > Products > viscometer > Electronic Six Speed Rotary Viscometer

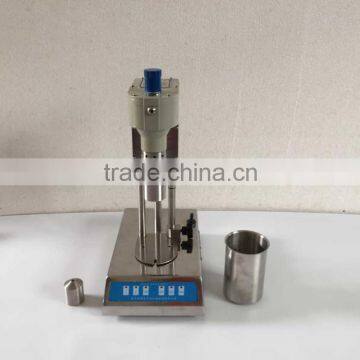

Electronic Six Speed Rotary Viscometer
- QINGDAO
- L/C D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | BAIRUIDA | |
| Model Number | ZNN-D6B |
Product Description
Outline
Electric six-speed rotational viscometer can be measured for each rheological parameter, draw flow curve according to multi-point measurement value, determine the liquid in the flow process flow type, choose the appropriate formula for non-Newtonian fluids for a more accurate measurement Research for on-site analysis of drilling fluid rheological parameters, while moving can be measured gel strength, flow index and consistency coefficient and a series of technical parameters. Conducive to safe, fast, scientific drilling needs. This product drive domestic high-quality synchronous motor, timing belt, push-button control, easy to operate, test accuracy, low failure rate, easy maintenance.
Second, the model and specifications
Models and Specifications
specification | name | Configuration | Remark |
| ZNN-D6B | Electric six-speed viscometer | Motor belt | Measurement with F1 torsion spring assembly |
The main technical parameters of the instrument
The main technical parameters
No. Name Technical Indicators
| No. | Name | Technical Indicators |
| 1 | power supply | 220V±5% 50Hz/60Hz |
| 2 | Motor power | 80W |
| 3 | Motor speed | Electrical control actual speed r / min |
| 4 | speed range | 3,6,100,200,300,600r / min |
| 5 | speed ladder | 5,10,170,340,511,1022 S-1 |
| 6 | Accuracy | 1 ~ 25 mPa • s ± 1 mPa.s (Newtonian fluid) 25 mPa • s more than ± 4% (Newtonian fluid) |
| 7 | Viscosity measurement range | Newtonian fluid: 1 ~ 300mPa.s (F1 measurement unit) Non-Newtonian Fluid: 1 ~ 150 mPa.s (F1 measurement unit) Shear stress: 0 ~ 153.3Pa (F1 measurement unit) |
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is a viscometer, filtration device, roller furnace, high-speed mixer, Viscosity detector and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of products Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is recognized by the industry. Welcome friends to visit, guidance and business negotiation
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd., founded in 2006, specializes in manufacturing series of oil slurry analytical instruments and accessories, which are widely used in major scientific research, oil drilling, oil and chemical additives in colleges.
I produced the high-quality products to meet domestic demand basis exported to many countries of the Sudan, Saudi Arabia, Iran, India and Uzbekistan.
Companies with a sound quality management system, and in accordance with API standard development and production of drilling fluids, completion fluids testing equipment.
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is a viscometer, filtration device, roller furnace, high-speed mixer, Viscosity detector and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of products Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is recognized by the industry. Welcome friends to visit, guidance and business negotiation
