ZNS-2 Aluminium Alloy cup
ZNS-2A stainless steel
In accordance with American standards:
ZNS-5A 1,ZNS-1A with inflator
2,ZNS-2A Carbon dioxide gas bomb device
3,ZNS-3A decompressor

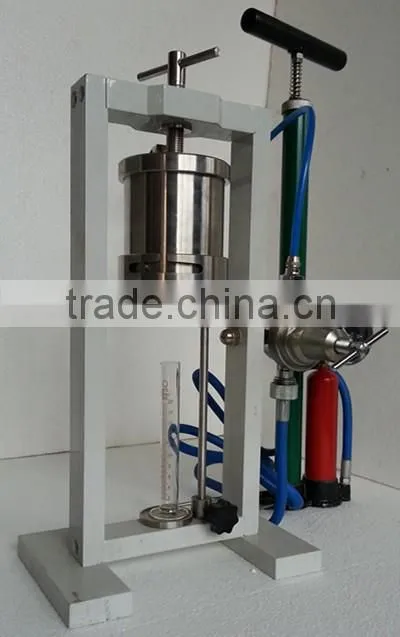

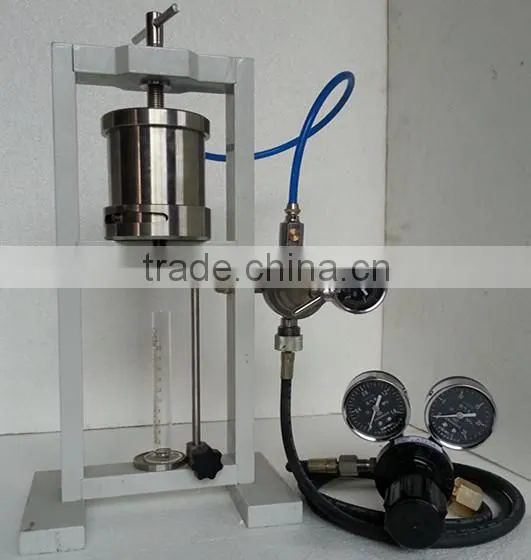

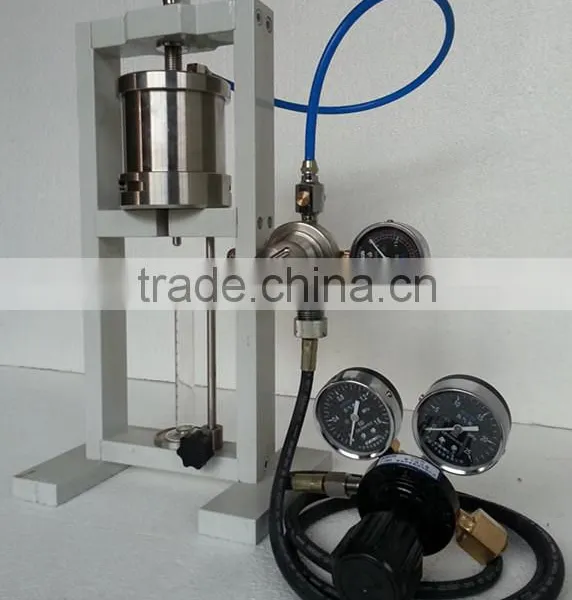

ZNS-2 ZNS-2A Overview
The products are mainly used for measuring the cake drilling fluid loss and fluid loss after preparation. APT uses standard manufacturing, reasonable structure, easy to use, the test is accurate, durable. Widely used in the drilling fluid analysis and determination of the major oil fields, geological exploration and laboratories
.Second, the model and specifications
| NO | the model and specifications | NAME | Configuration |
| 1 | ZNS-2 | The pressure filtration apparatus | Single joint aluminum drilling Cup |
| 2 | ZNS-2A | The pressure filtration apparatus | Single joint stainless steel cup drilling |
| 3 | SD3 | Triple the pressure filtration apparatus | Triple aluminum / stainless steel cup drilling |
| 4 | SD4 | Quadruple the pressure filtration apparatus | Quadruple aluminum / stainless steel cup drilling |
| 5 | SD6 | Six of the pressure filtration apparatus | Six joint aluminum / stainless steel cup drilling |
| NO | NAME | technical parameters | Remark |
| 1 | Effective fluid loss area | 45.6cm2 | |
| 2 | Working pressure | 0.69MPa | |
| 3 | The amount of drilling fluid into the cup | 240ml / Single Cup | |
| 4 | Drilling cup extreme pressure | 1MPa |

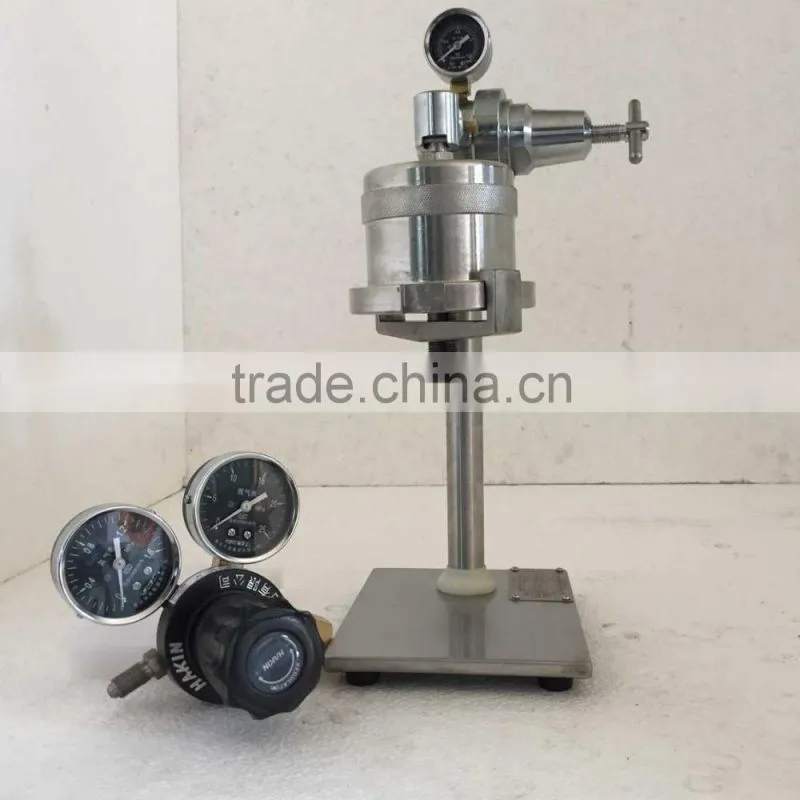

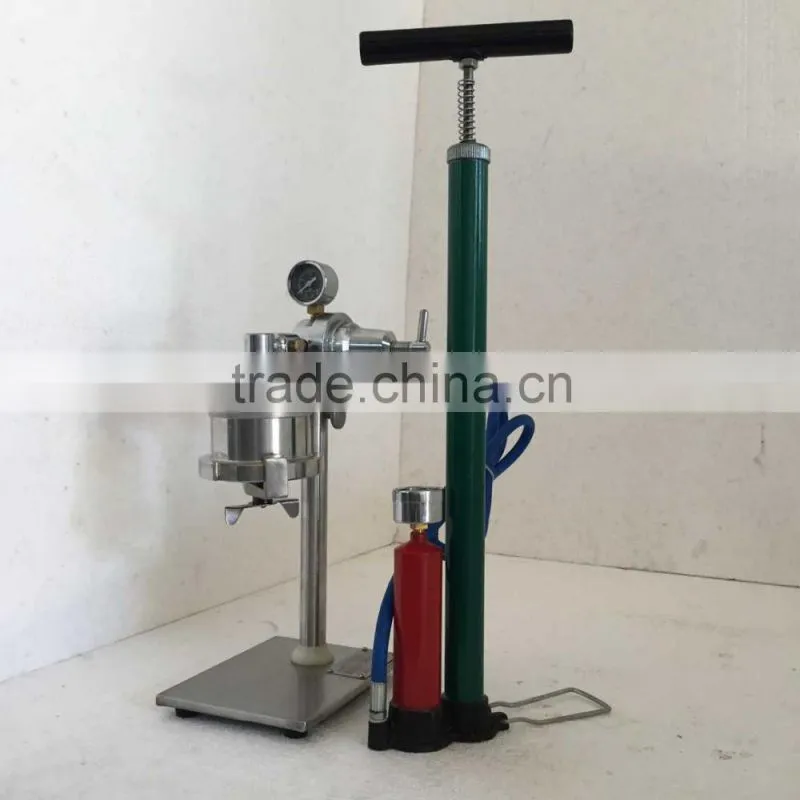

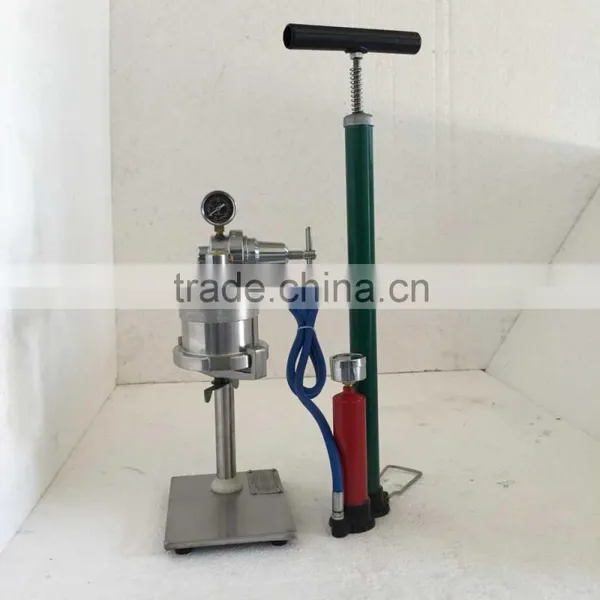

ZNS-5A OutlineThe instrument refers to a differential pressure of fluid loss 0.69MPa oximeter. Mainly used to measure fluid loss of the drilling fluid and filter cake obtained after the formation of fluid loss. Widely used in the drilling fluid analysis and determination of the major oil fields, geological exploration and laboratories.
| NO | NAME |
technical parameters |
| 1 | Effective fluid loss area | 45.6cm2 |
| 2 | Working pressure | 0.69MPa |
| 3 | Drilling fluid injection amount | 350ml / only |
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is a viscometer, filtration device, roller furnace, high-speed mixer, Viscosity detector and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of products Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is recognized by the industry. Welcome friends to visit, guidance and business negotiation
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd., founded in 2006, specializes in manufacturing series of oil slurry analytical instruments and accessories, which are widely used in major scientific research, oil drilling, oil and chemical additives in colleges.
I produced the high-quality products to meet domestic demand basis exported to many countries of the Sudan, Saudi Arabia, Iran, India and Uzbekistan.
Companies with a sound quality management system, and in accordance with API standard development and production of drilling fluids, completion fluids testing equipment.
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is a viscometer, filtration device, roller furnace, high-speed mixer, Viscosity detector and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of products Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is recognized by the industry. Welcome friends to visit, guidance and business negotiation
