Home > Instruments & Meters > Test Instrument > Test Machine > AcuCT Hinged Series

AcuCT Hinged Series

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Model Number:

AcuCT Hinged

Contact Supplier Request Quote Chat Now

Accuenergy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number AcuCT Hinged

Product Description

Compact & light-weight split core current transformer is designed for installation on branch circuits within the electrical panel.

Quick & simple install with hinged clip
Safe mV secondary output
5A - 630A AC current input range
0.5% accuracy from 10-120% of rated current
UL recognized

Available Models

	AcuCT-H040	AcuCT-H063	AcuCT-H100	AcuCT-H138
Input Range	5A-75A	5A-150AS	5A-250A	10A-630A
Typical Input	20A, 30A, 40A, 50A, 60A	50A, 100A, 150A	100A, 120A, 200A, 250A	200A, 400A, 600A
Rated Output	333mV	333mV	333mV	333mV
Window Diameter Size (in)	0.4	0.63	1	1.38
Window Diameter Size (mm)	10.2	16	25.4	35
Exterior Dimensions (in)	1.16 x 1.64 x 1.04	1.42 x 2.09 x 1.2	2 x 2.76 x 1.52	2.56 x 3.27 x 1.57
Exterior Dimensions (mm)	29.4 x 41.7 x 26.4	36 x 53 x 30.5	50.8 x 70.1 x 38.6	65 x 83 x 40
Accuracy	0.5%	0.5%	0.5%	0.5%
Standard/Certifications	UR, CE, RoH	UR, CE, RoH	UR, CE, RoH	UR, CE, RoH

Weight	0.2 lbs	0.3 lbs	0.4 lbs	0.5 lbs
Form Factor	Hinged CT	Hinged CT	Hinged CT	Hinged CT

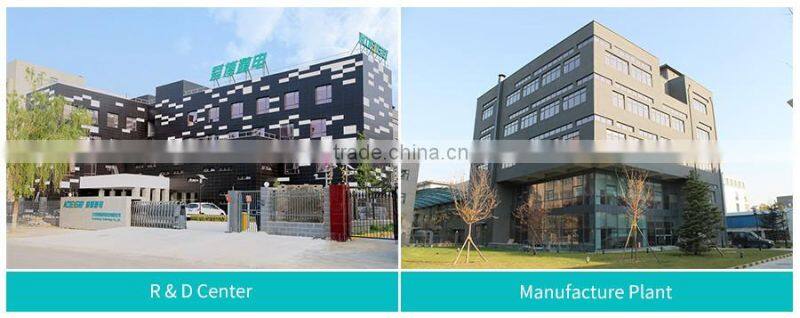

Company Information

Exhibiton

Packaging & Shipping

Contact Information

Areas We Serve

Accuenergy serves businesses across a variety of sectors including but not limited to: industrial, commercial, renewable energy, government, educational, communication and defense. Accuenergy products and solutions has been deployed in large-scale energy management projects, public transportation expansion projects, factory control systems, customized switchgear, LEED projects, PUE projects, sub metering and many more with a continued focus of the most efficient, economical and versatile solution for your applications.

Product Range

Accuenergy has an extensive product range that includes single and three phase multifunction power meters, multi-circuit meters, gateways and data acquisition servers, a variety of split core CTs, UL listed CTs, Rogowski coil CTs, I/O and communication modules, converters, DC power meters, hall effect sensors, pre-wired panels, and data logging software.
