Product Description

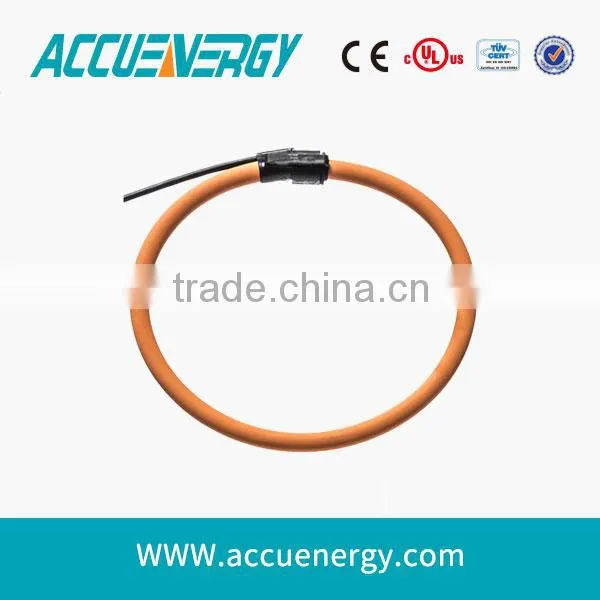

AcuCT Flex Series

High specification line of flexible AC current transformers for power metering, power quality and general use when space is limited.



  • igh accuracy for demanding applications
  • Wide frequency range means excellent choice for harmonics and power quality
  • Wide current input range from 5A - 50,000A AC
  • Choice of 16", 24", 36" or 47" length
  • No additional power supply needed when used with Acuvim II Series meters

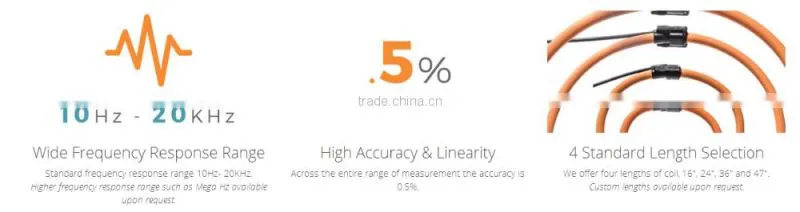

Rogowski Coil Features



AcuCT Flex Series

AcuCT Flex Series

Available Models

   RCT16 RCT24  RCT36 RCT47
 Input Range  5A-50000A  5A-50000A  5A-50000A  5A-50000A
 Typical Input  1000A, 2500A, 5000A, 10000A, 50000A  1000A, 2500A, 5000A, 10000A, 50000A  1000A, 2500A, 5000A, 10000A, 50000A  1000A, 2500A, 5000A, 10000A, 50000A
 Output Option  Output specified for RCT Input  Output specified for RCT Input  Output specified for RCT Input  Output specified for RCT Input
 Window Diameter Size (in)

 4.17

  7.01  10.67  14.53
 Window Diameter Size (mm)  106 176   271  369
 Length (in)  15.75  23.62  35.43  47.24
 Length (mm)  400  600  900  1200
 Accuracy  0.3% Combined with Acuvim II Series at Any Point  0.3% Combined with Acuvim II Series at Any Point  0.3% Combined with Acuvim II Series at Any Point 0.3% Combined with Acuvim II Series at Any Point
 Standard/Certifications  UL Recognized  UL Recognized  UL Recognized UL Recognized
Weight 0.2 lbs 0.4 lbs 0.6 lbs 1 lbs
Form Factor Flexible Rope-Like CT Flexible Rope-Like CT Flexible Rope-Like CT Flexible Rope-Like CT
