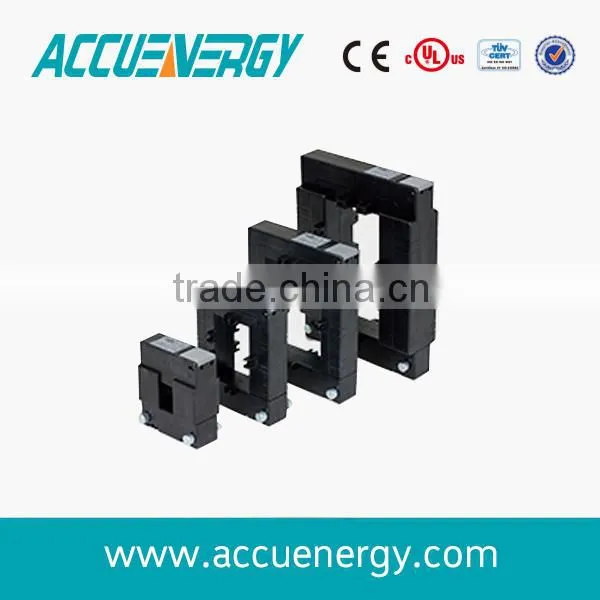

AcuCT 5A Series Split Core Current Transformers

Name: AcuCT 5A Series Split Core Current Transformers
Brand: Accuenergy
SKU: 120946211
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Accuenergy

Model Number:

AcuCT

Accuenergy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing or Toronto

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Accuenergy

Model Number AcuCT

Usage Current

Phase Single

Coil Structure Toroidal

Coil Number Autotransformer

General Use Compact 5A AC Split Core CTs

	AcuCT-0812	AcuCT-2031	AcuCT-3147	AcuCT-3163
	ORDER	ORDER	ORDER	ORDER
Input Range	5A-400A	5A-1000A	5A-1600A	5A-5000A
Typical Input	200A, 250A, 300A, 400A	400A, 600A, 800A, 1000A	1000A, 1200A, 1600A	2000A, 2500A, 3000A, 4000A, 5000A
Rated Output Options	5A, 1A	5A, 1A	5A, 1A	5A, 1A
Window Size (in)	0.83 x 1.22	1.97 x 3.15	3.15 x 4.72	3.15 x 6.3
Window Size (mm)	21 x 31	50 x 80	80 x 120	80 x 160
Exterior Dimensions (in)	3.5 x 4.13 x 1.57	4.49 x 5.71 x 1.97	5.67 x 7.28 x 1.97	6.93 x 9.72 x 2.76
Exterior Dimensions (mm)	89 x 105 x 40	114 x 145 x 50	144 x 185 x 50	176 x 247 x 70
Accuracy	1%	0.5%	0.5%	0.5%
Standard/Certifications	UR, CE, RoHS	UR, CE, RoHS	UR, CE, RoHS	UR, CE, RoHS
Weight	1.8 lbs	2.4 lbs	3.4 lbs	6.4 lbs
Form Factor	Rectangle Split Core	Rectangle Split Core	Rectangle Split Core	Rectangle Split Core
Mounting Feature	Mounting Clips and Tension Screws for Bus & Cable	Mounting Clips and Tension Screws for Bus & Cable	Mounting Clips and Tension Screws for Bus & Cable	Mounting Clips and Tension Screws for Bus & Cable
