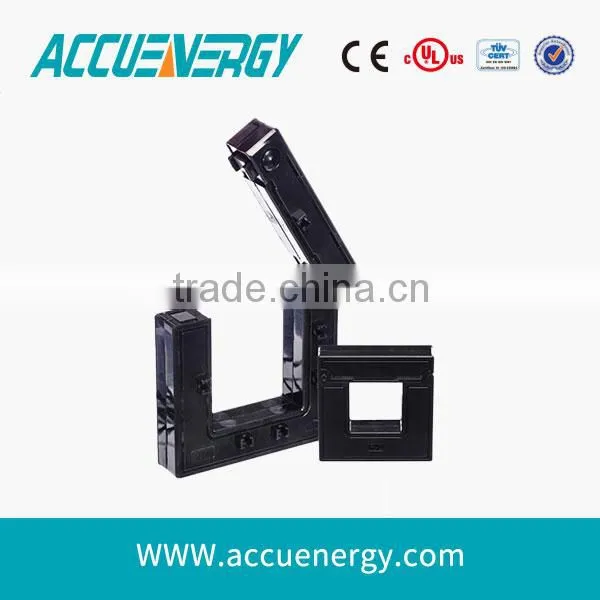

Our highest accuracy premium split-core current transformer features a unique press-open hinge so its simpler and faster to install.
- 5A - 5000A AC current input range
- Revenue grade accuracy meets IEC61000-1 class 0.5
- UL listed for XOBA UL2808 standard, CSA C22.2 No. 61010-1
- Push-open mechanism makes the installation quick and simple
- Multiple voltage or current secondary output options including 5A and 333mV
- Multiple mounting options with included accessories
- Multiple window shapes and sizes for multiple applications
Available Models
| AcuCT-075R | AcuCT-100R | AcuCT-125R | AcuCT-200R | AcuCT-3135R | AcuCT-4161R | AcuCT-5170R | |
| Input Range | 1A-150A | 5A-250A | 5A-400A | 5A-1000A | 5A-1500A | 5A-5000A | 5A-5000A |
| Typical Rated Input | 50A, 100A, 150A | 100A, 200A, 250A | 100A, 200A,300A,400A | 400A, 600A, 800A, 1000A | 600A, 800A, 1000A, 1200A, 1500A | 1200A, 1600A, 2000A,2500A, 3000A, 4000A, 5000A | 2000A, 3000A, 4000A, 5000A |
| Output Option | 333mV, 80mA, 100mA, 200mA | 1A, 333mV, 80mA, 100mA, 200mA | 1A, 333mV, 80mA, 100mA, 200mA | 1A, 333mV, 80mA, 100mA, 200mA | 5A, 1A, 333mV, 80mA, 100mA, 200mA | 5A, 1A, 333mV, 80mA, 100mA, 200mA | 5A, 1A, 333mV, 80mA, 100mA, 200mA |
| Window Size (in) | 0.75 x 0.75 | 1 x 1 | 1.25 x 1.25 | 2 x 2 | 3.1 x 3.5 | 4.1 x 6.1 | 5.1 x 7 |
| Window Size (mm) | 19.5 x 19.5 | 25 x 25 | 32 x 32 | 51 x 51 | 80x 90 | 105 x 155 | 130 x 180 |
| Exterior Dimensions (in) | 2.3 x 2.3 x 0.9 | 2.6 x 2.6 x 0.9 | 3.2 x 3.2 x 0.9 | 4.4 x 4.4 x 1.25 | 5.7 x 6.1 x 1.25 | 7.3 x 9.3 x 1.8 | 8.3 x 10.2 x 1.8 |
| Exterior Dimensions (mm) | 58 x 58 x 22 | 65 x 65 x 22 | 82 x 82 x 22 | 111 x 111 x 32 | 144 x 154 x 32 | 185 x 235 x 45 | 210 x 260 x 45 |
| Accuracy | IEC 60044-1 0.5s class | ||||||
| Standard/Certifications | UL listed UL2808, 61010-1 and CSA 22.2 | ||||||
| Form Factor | Square Press-Open CTs | Square Press-Open CTs | Square Press-Open CTs | Square Press-Open CTs | Square Press-Open CTs | Square Press-Open CTs |
Areas We Serve
Accuenergy serves businesses across a variety of sectors including but not limited to: industrial, commercial, renewable energy, government, educational, communication and defense. Accuenergy products and solutions has been deployed in large-scale energy management projects, public transportation expansion projects, factory control systems, customized switchgear, LEED projects, PUE projects, sub metering and many more with a continued focus of the most efficient, economical and versatile solution for your applications.
Product Range
Accuenergy has an extensive product range that includes single and three phase multifunction power meters, multi-circuit meters, gateways and data acquisition servers, a variety of split core CTs, UL listed CTs, Rogowski coil CTs, I/O and communication modules, converters, DC power meters, hall effect sensors, pre-wired panels, and data logging software.
