Home > Electrical & Electronics > Power Transmission & Transformer > Instrument Transformer > AcuCT mV Series

AcuCT mV Series

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

1998

Factory Size:

5,000-10,000 square meters

Contact Supplier Request Quote Chat Now

Accuenergy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

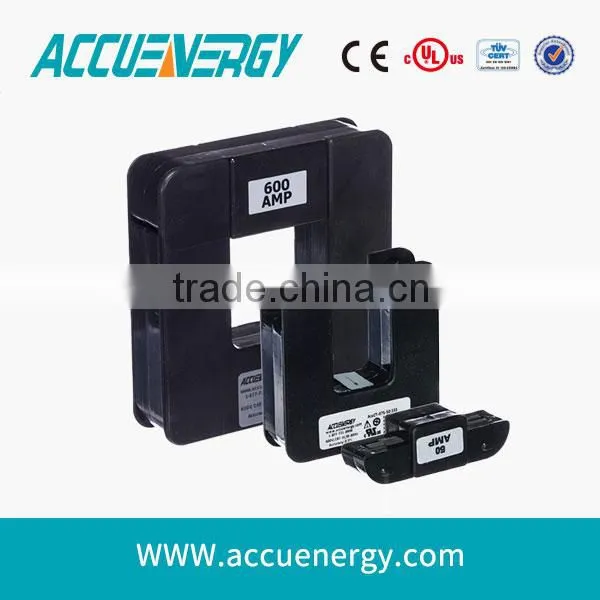

Compact & light-weight line of conventional 333mV output split core current transformers for general panel/device monitoring.

Conventional split-core style CT
Safe mV secondary output
0.5% accuracy from 10-120% of rated current
20A - 5000A AC current input range
UL recognized

Available Models

	AcuCT-075	AcuCT-125	AcuCT-200	AcuCT-3050
Input Range	10A-200A	30A-600A	60A-1500A	40A-5000A
Typical Input	100A, 200A	300A, 400A, 600A	600A, 800A, 1000A, 1200A, 1500A	400A, 600A, 1000A, 1500A, 2000A, 3000A, 5000A
Rated Option	333mV	333mV	333mV	333mV
Window Size (in)	0.75 x 0.75	1.25 x 1.25	2 x 2	3 x 5
Window Size (mm)	19.1 x 19.1	31.8 x 31.8	50.8 x 50.8	76.2 x 127
Exterior Dimensions (in)	2 x 2.098 x 0.669	3.248 x 3.35 x 1.024	4.764 x 5 x 1.181	5.748 x 7.5 x 1.402
Exterior Dimensions (mm)	50.8 x 53.3 x 17	82.5 x 85.1 x 26	121 x 127 x 30	146 x 190.5 x 35.6
Accuracy	0.5%	0.5%	0.5%	0.5%
Standard/Certifications	UR, CE, RoHS	UR, CE, RoHS	UR, CE, RoHS	UR, CE, RoHS

Weight	0.2 lbs	0.3 lbs	0.4 lbs	0.5 lbs
Form Factor	Square Split Core	Square Split Core	Square Split Core	Rectangle Split Core

Company Information

Packaging & Shipping

Exhibiton

Contact Information

Areas We Serve

Accuenergy serves businesses across a variety of sectors including but not limited to: industrial, commercial, renewable energy, government, educational, communication and defense. Accuenergy products and solutions has been deployed in large-scale energy management projects, public transportation expansion projects, factory control systems, customized switchgear, LEED projects, PUE projects, sub metering and many more with a continued focus of the most efficient, economical and versatile solution for your applications.

Product Range

Accuenergy has an extensive product range that includes single and three phase multifunction power meters, multi-circuit meters, gateways and data acquisition servers, a variety of split core CTs, UL listed CTs, Rogowski coil CTs, I/O and communication modules, converters, DC power meters, hall effect sensors, pre-wired panels, and data logging software.
