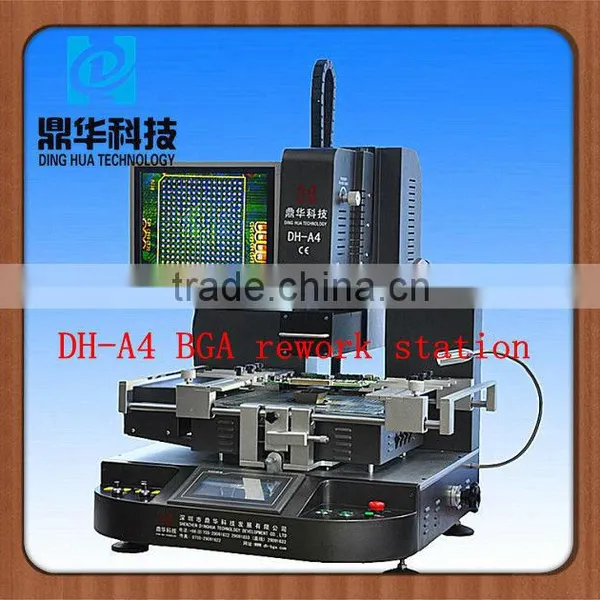

Specifications
Welding machine:industrial PC and Windows OS
touch screen,3 heaters
hot air and infrared preheating
soldering machine for b
Main parameters
Total Power |
6800W |
Top heating power |
1200W |
Bottom heating power |
2nd: 1200W,3 rd: 4200W |
power |
AC220V±10% 50/60Hz |
Dimensions |
L800×W1100×H9750 mm |
Positioning way |
V-groove, PCB support can be adjusted in any directions with external universal fixture |
Temperature control way |
K thermocouple Closed loop |
Temp control accuracy |
±2°C |
PCB size |
Max 500×400 mm Min 22×22 mm |
Workbench fine-tuning |
Front and back:±15mm, Left and right:±15mm |
Camera magnification |
10x-100x times |
BGA chip |
2X2-80X80mm |
Minimum chip spacing |
0.15mm |
External Temperature measuring port |
1-5,(optional) |
Placement Accuracy |
±0.01MM |
Net weight |
91kg |
Features
1. with touch screen, Windows OS
2.PLC control, stepper motor drive
3.automaticlly desoldering and soldering function
and bottom temperature areas heat independently.the 3rd is infrared heater
nnect to a computer, to be controlled more conveniently with a built-in PC serial port and proprietary software attached to it.
5.high precision thermocouple is uesd to detect the top/bottom temperature precisely
6.V-groove equipped with a flexible fixture for PCB positioning and with flexiable convenient universal clip to protect the PCB.
7.Various sizes of BGA alloy (nozzles) , which can be adjusted 360 degree for easily installation and replacement
8.It can be set up 8 sets rising temperature segments and 8 constant temperature segments.
9.There is an alarming after finishing desolering and soldering.And after desoldering, a vacuum suction pen can facilitate the removing of the BGA.
10.It can handle easily for the PCB with large thermal capacity,high temperature and lead-free weilding requirments.
