Dinghua hot air HD touch screen mobile motherboard chip repair machine,soldering infrared station for mobiles DH-A1

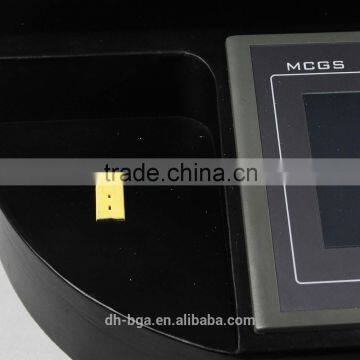

Detail picture of BGA Station DH-A1:
Specification of DH-A1 BGA rework station:
- Total Power: 4800W
- Top heater: 800W
- Lower heater: 1200W Bottom heater: 2700W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 420x400mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 640*630*560mm
- Net weight: Approx 40KG
Main Features:
lHD touch screen interface, PLC control.
lThree independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be choosed according to PCB size
lK sensor close control, control heating process precisely.
lPowerful cross flow fan helps cooling the PCB board fast and prevents it from deformation.
lV-groove PCB supporter for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
lHot air nozzles can be adjusted in any direction
lSound hint system. There is a alarm before the completion of desoldering and soldering.
lCE certification, with emergency switch and automatic power-off protection device when emergency happens
Certification:
Packaging:
Why are we?
1.Well-equipped manufacturing facility.
2.Professionalism innovative R&D team, provide professional service for bga rework station solution.
3.International quality standard range, all our product have got the CE, ISO 9001 2008, Rohs approval.
4.Competitive price. All our machine components select from world class brand (like Omega, Panasonic, SMC, CNB, GS...which ensure safer, convenient speedily operation of our machine.
5.Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on.
6.We offer 3 years warranty for the heater of machine, one year for other parts. Life long technical support.
