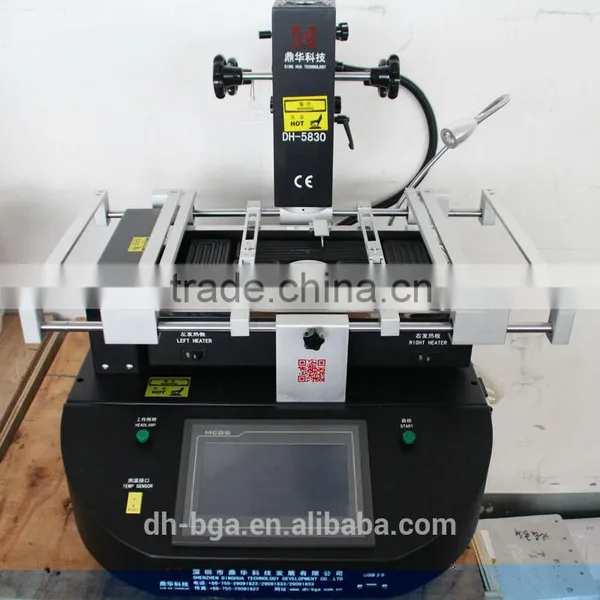

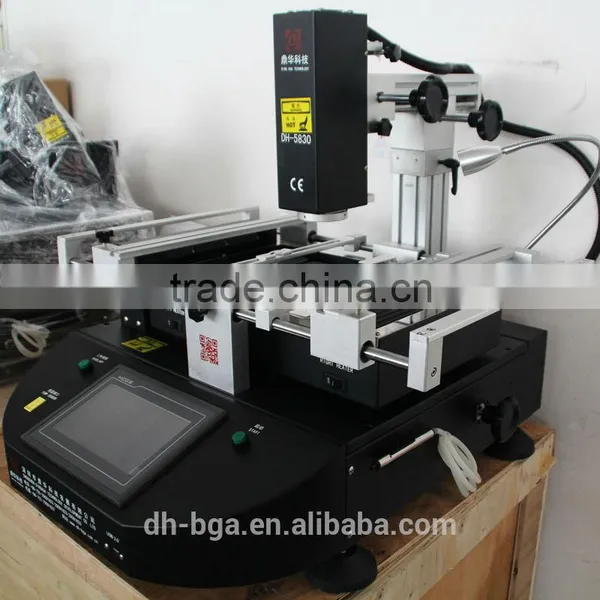

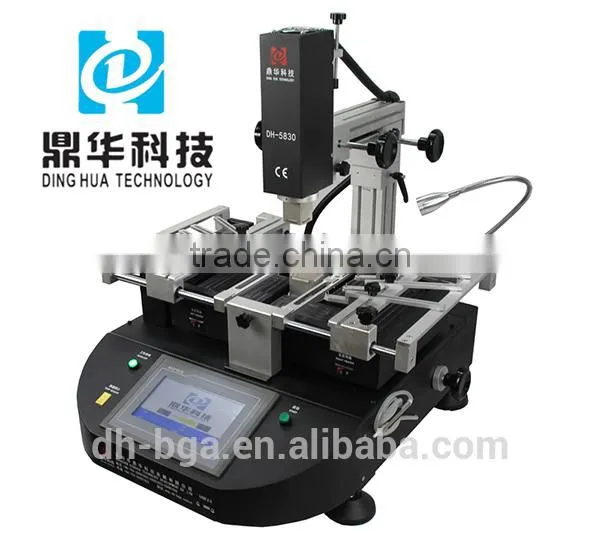

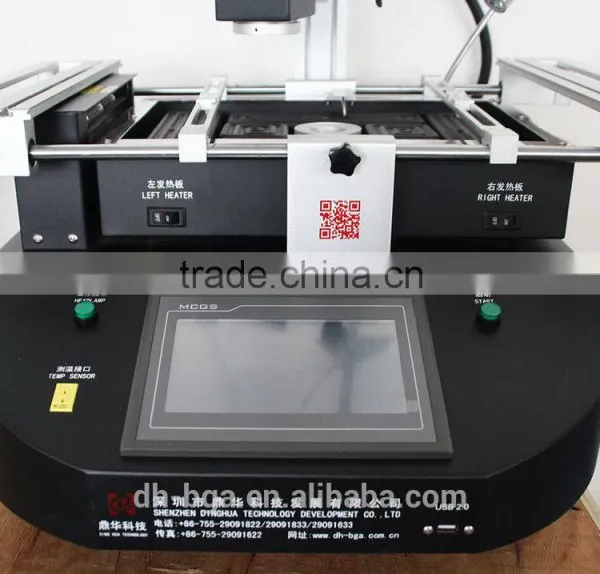

Dinghua DH-5830 mobile phone PC motherboard repair bga repair station
|
|

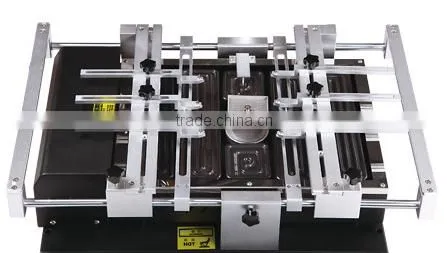

| pallet | vacuum pen |
|
|

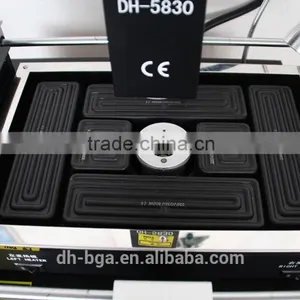

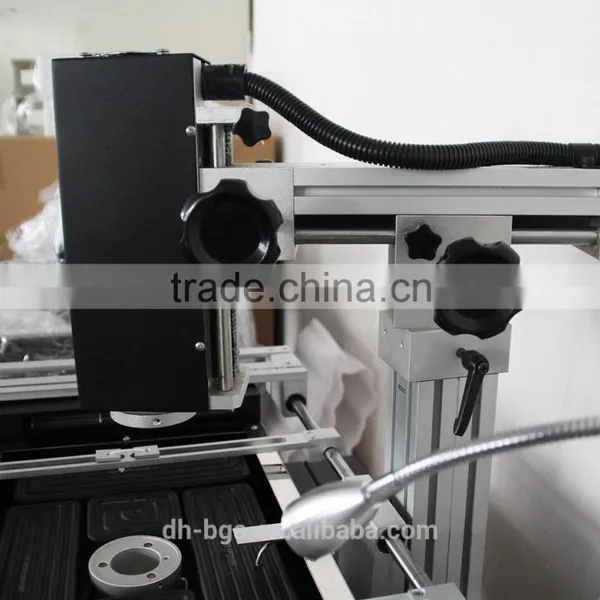

| support area | upper heater |
Specification:
- Total Power: 4400W
- Top heater: 800W
- Lower heater: 1200W Bottom heater: 2400W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 410x370mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 570*610*570mm
- Net weight: Approx 33KG

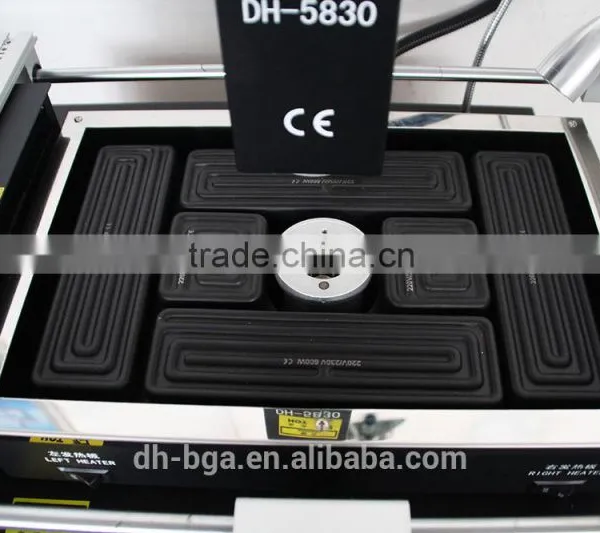

l Three independent heaters all can set 8 segments heating, cooling and constant temperature, save up to tentemperature profiles. IR preheat area can be controlled according to PCB size
l K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
l Moveable heater, easy to operate.
l Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

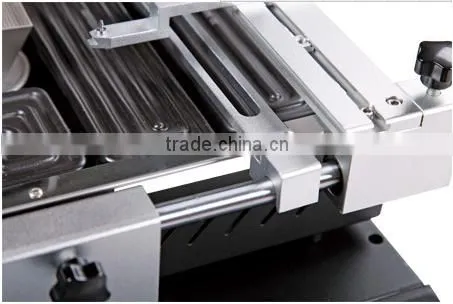

l Vgroove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
l Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
l Sound hint system. There is an alarm before the completion of each desoldering and soldering
Our company
Why select our?
1.Well-equipped manufacturing facility.
2.Professionalism innovative R&D team, provide professional service for bga rework station solution.
International quality standard range, all our product have got the CE, ISO 9001 2008, Rohs approval.
3.Competitive price. All our machine components select from world class brand (like Omega, Panasonic, SMC, CNB, GS...which ensure safer, convenient speedily operation of our machine.
4.Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on.
5.We offer 3 years warranty for the heater of machine, one year for other parts. Life long technical support.
The product video link:
5830: http://youtu.be/LcI6ys-nYw0
Thank you for your time!
