Dinghua DH-380 bga rework machine for iPhone 5 5s/Samsung galaxy/Nokia/HTC chips repair and replacement
| Specification of bga rework equipment DH-380: |
Total Power |
4400W |
Top heater |
800W |
Bottom heater |
2nd 1200W, 3rd IR heater 2400W |
Power |
AC220V±10% 50Hz |
Lighting |
Taiwan led working light, any angle adjusted. |
Operation mode |
Drawer style HD touch screen, intelligent conversational interface, digital system setting |
Storage |
50000 groups |

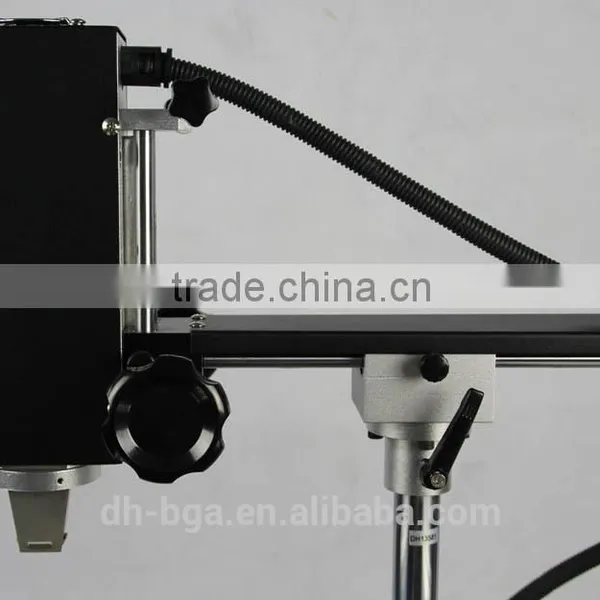

Top heater movement |
Right/left, frontward/backward, rotate freely. |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±2℃ |
PCB size |
Max 370×370 mm Min 22×22 mm |
BGA chip |
2x2 - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L540×W480×H540 mm |
Net weight |
31KG |

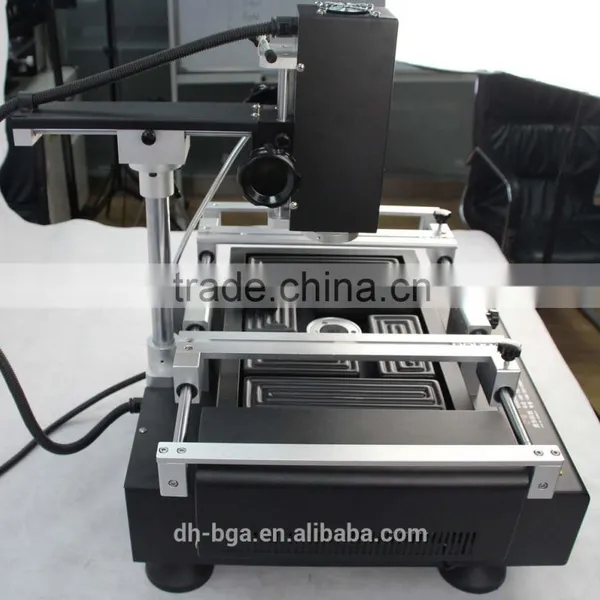

| Detail picture of bga rework equipment DH-380: |
|
|
| Movable pcb table + universal fixtures, support all kinds of pcb. |
Strong sense of thermometer: temperature measurement more accurate, the maximum guarantee welding quality |
|
|

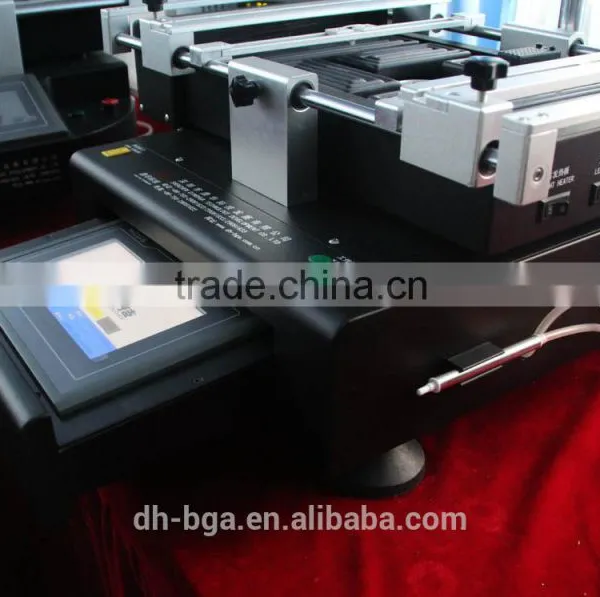

| Top hot air heater is turbine processing, presenting the whirlwind is more balance than ordinary wind | 7" touch screen controller, window OS interface in English + PLC control + PID self adjust system. |
|
|
| Taiwan large size ceramic infrared plate, preheating for PCB, prevent it from deformation. |
Strong sense of thermometer: temperature measurement more accurate, the maximum guarantee welding quality |
|
|
| External temperature sensor, enables temperature monitoring and accurate analysis of real time temperature profile. | Taiwan led working light, polish stainless steel material, can be adjusted in any angle. |
| Certificateion: |
| Packaging: |
| Why our machine more accurate? |
Our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature, but for most of BGA rework station from other companies, their PID grab frequency is 30ms, this is a big difference between 10ms and 30ms, that's why our machine is more accurate.
| About us: |
| Warranty and after-sale service: |
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems
in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
Thank you for your time!
