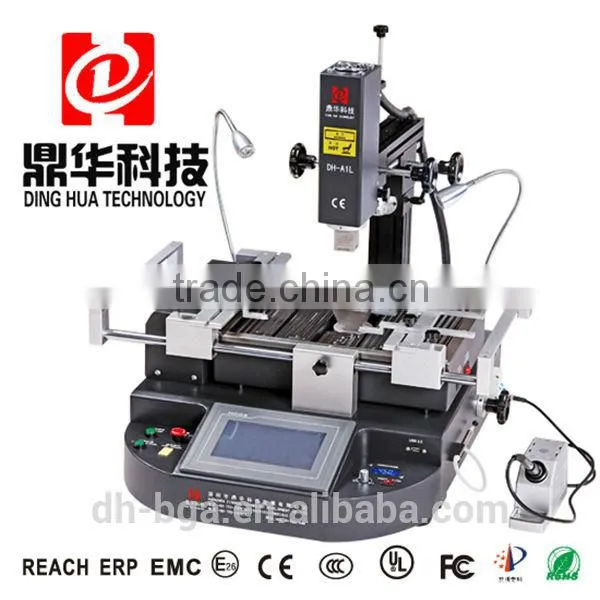

Dinghua lead free bga soldering station with solder iron,mothechip soldering machine repair machine DH-A1L
DH-A1L main advantages:
1. BGA soldering station 2.good quality,cheap price;
3.1 year warranty; 4.CE ISO9001 passed.
Specification of bga welder tools DH-A1L:
Total Power |
4900W |
Top heater |
800W |
Bottom heater |
2nd 1200W, 3rd IR heater 2700W |
Digital Iron power |
80W |
Power |
AC220V±10% 50Hz |
BGA positioning |
Laser positioning, place pcb on the center rapidly. |
Cleaning tin |
With digital soldering iron, for rapid clean residual tin after desoldering, prevent pcb and bga from oxidize |
Lighting |
Double shadowless LED lights, any angle adjusted freely |
Top heater movement |
Right/left, frontward/backward, rotate freely. |
Operation mode |
HD touch screen, intelligent conversational interface, digital system setting |
Temperature profile storage |
50000 groups |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±2℃ |
PCB size |
Max 420×400 mm Min 22×22 mm |
BGA chip |
2x2 - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L640×W630×H560 mm |
Net weight |
42KG |

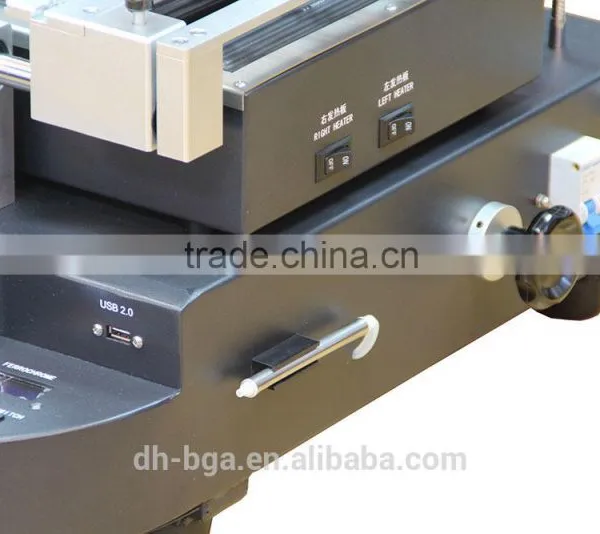

Detail picture of bga welder tools DH-A1L:
|
|
|
|
Our company:
Why select our?
1.Well-equipped manufacturing facility.
2.Professionalism innovative R&D team, provide professional service for bga rework station solution.
International quality standard range, all our product have got the CE, ISO 9001 2008, Rohs approval.
3.Competitive price. All our machine components select from world class brand (like Omega, Panasonic, SMC, CNB, GS...which ensure safer, convenient speedily operation of our machine.
4.Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on.
5.We offer 3 years warranty for the heater of machine, one year for other parts. Life long technical support.
Our service:
Shipping
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
Payments
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
Warranty
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
The video link;
A1L: /watch?v=5ZTxN1QCJLA
Thank you for your time!
