Dinghua DH-A1 Hot-Selling Touch Screen 3 Zones BGA Rework Station for Factory Professional Use
US$ 1,200 - 1,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DINGHUA
Model Number:
DH-A1
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dinghua DH-A1L-C 3 Heater Zone BGA Rework Station With Camera Monitor for Laptop Motherboard RepairUS$ 1,200 - 1,500MOQ: 1 Set -
Dinghua DH-A1 Hot-Selling Touch Screen 3 Zones BGA Rework Machine for Laptop, Bga Chips Repair and Soldering, Reballing.US$ 400 - 500MOQ: 1 Set
-
Dinghua DH-A1 Professional Bga Chips Soldering, Reballing Machine for Repair All Kinds of Chips and Motherboard, Mainboard.US$ 1,000 - 1,500MOQ: 1 Set
-
Dinghua DH-A13 Heating Zones HD Touch Screen BGA Rework Station for Laptop MotherboardUS$ 1 - 1,500MOQ: 1 Set
-
DINGHUA DH-B2 Laser Pcb Motherboard Refurbishing Machine/ Equipment/ ToolUS$ 1,500 - 2,000MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
DINGHUA
Model Number
DH-A1
Voltage
AC220V±10% / 110V 50/60Hz
Current
20A
Rated Capacity
3200W
Rated Duty Cycle
100%
Dimensions
approx 640*630*560mm
Weight
Approx 40KG
Usage
bga rework station for motherboard chip repair
Certification
CE ISO 9001 2008 ROHS
After-sales Service Provided
Engineers available to service machinery overseas

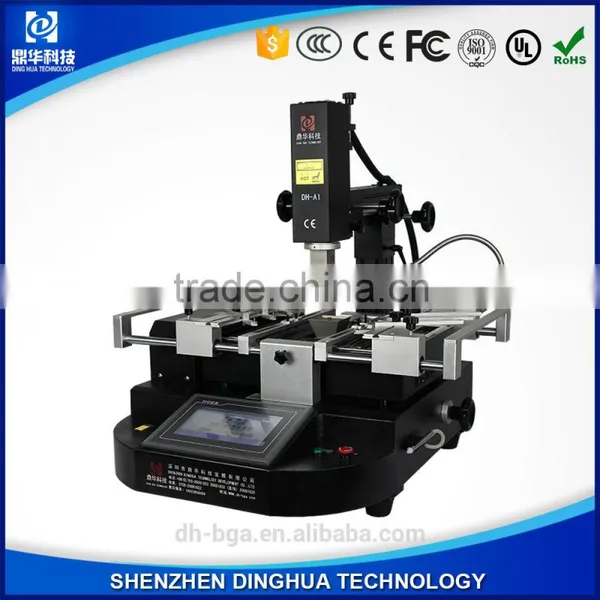

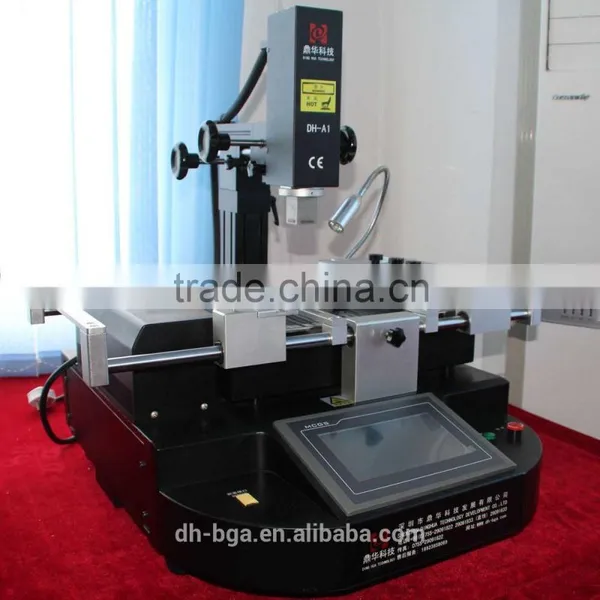

Dinghua hot Selling Touch Screen 3 Zones BGA Rework Station DH-A1

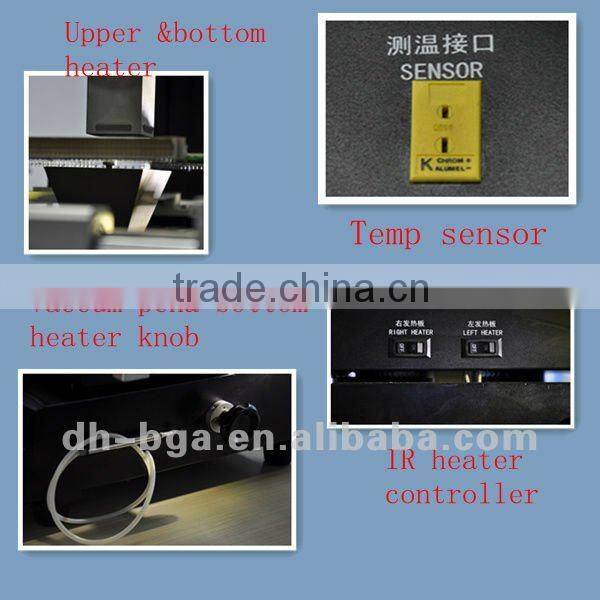

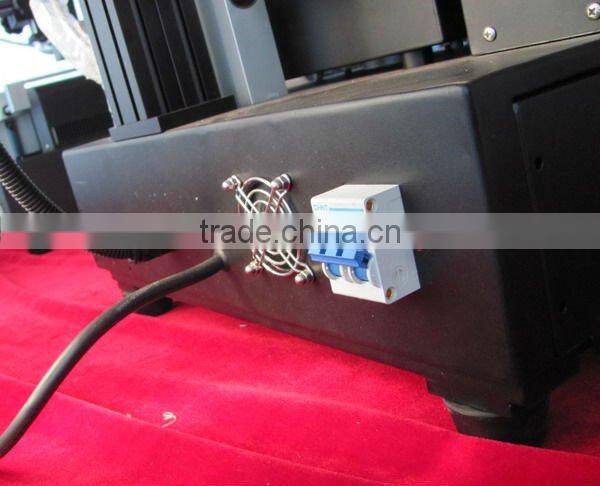

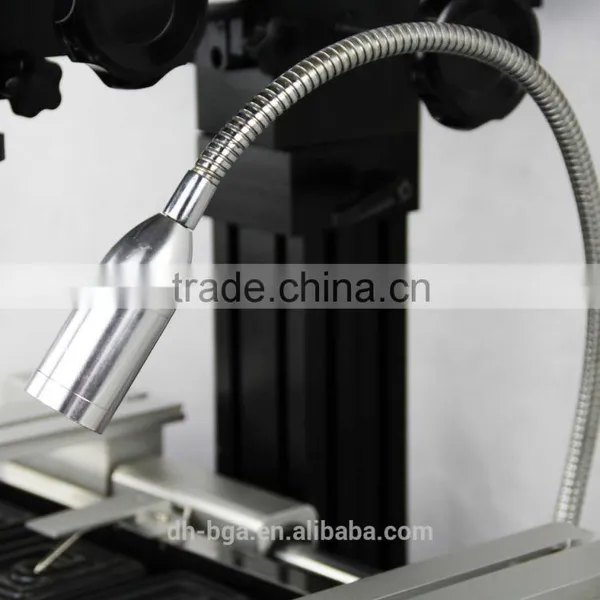

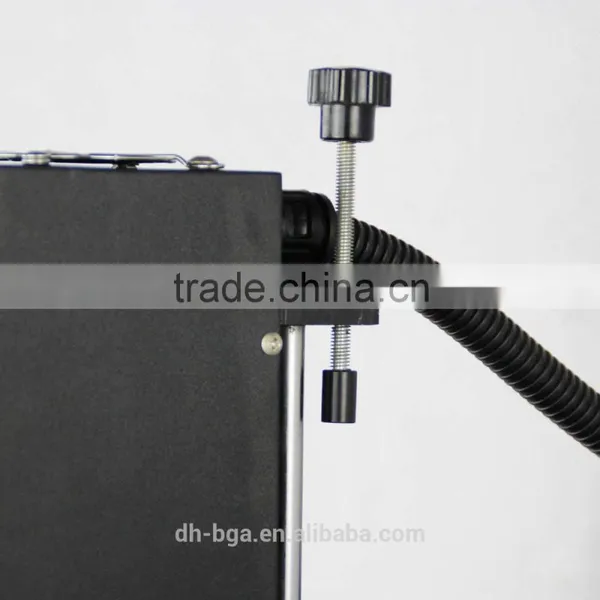

Detail picture of BGA Rework Station DH-A1:
Specification of BGA Rework Station DH-A1:
- Total Power: 4800W
- Top heater: 800W
- Lower heater: 1200W Bottom heater: 2700W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 420x400mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 640*630*560mm
- Net weight: Approx 40KG
Special feature:
- Any size of nozzle can be custom if need.
- With vacuum sucker, pick up the bga chip conveniently after desoldering.
- With USB 2.0 interface, can be connected with a computer or mouse, screenshot temperature curve or system update.
- Real-time settings and actual temperature profile display can be used to analyzed and correct parameters.
- External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
- Adopt three heating zone, upper and low heater hot air, bottom heater is infrared preheating zone.
- K type close loop control, temperature accuracy will be on ±2°C
- High power cross flow cooling fan, prevent the PCB from deformation.
- Sound hint system: there is voice reminder 5s-10s before the completion of heating, to get the operator prepared
- security measure: overheat guard and emergency stop function
Humanized design:

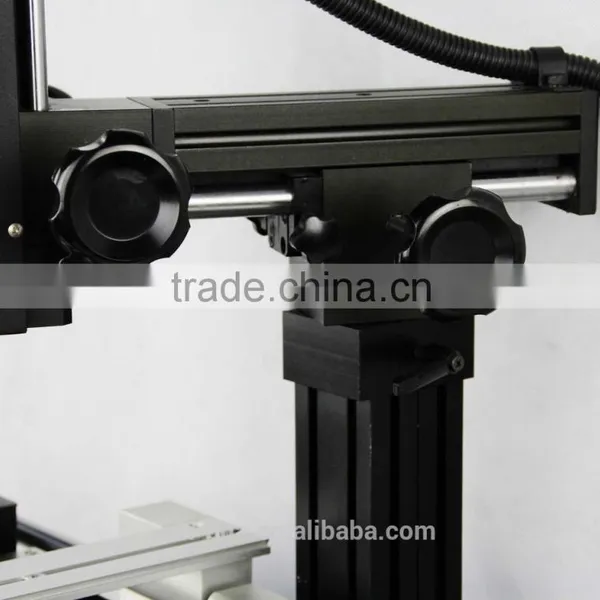

- Upper heater can move up/down, front/back, rotate freely
- Lower heater can move up/down to keep best distance with pcb.
- Strong sense of thermometer, temperature measurement more accurate
- PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
- it can set 8 segments heating, massive storage of temperature profiles
- With different size of nozzles, easy replace and use, customized is available.
- Colorful buttons in English and chinese, easy recognize and use.
- CE certification, automatic power-off protection device when emergency happens.
Application:
Suitable for all kinds of BGA repairing (CCGA,BGA,QFN, CSP,LGA,Micro SMD,MLF...)
Lead and Lead-free
Certification:
Paching:
Why are we?
1.Well-equipped manufacturing facility.
2.Professionalism innovative R&D team, provide professional service for bga rework station solution.
3.International quality standard range, all our product have got the CE, ISO 9001 2008, Rohs approval.
4.Competitive price. All our machine components select from world class brand (like Omega, Panasonic, SMC, CNB, GS...which ensure safer, convenient speedily operation of our machine.
5.Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on.
6.We offer 3 years warranty for the heater of machine, one year for other parts. Life long technical support.
