Dinghua HD touch screen south north vga bga rework station,lead free hot air rework station DH-5830
Specification:
- Total Power: 4400W
- Top heater: 800W
- Lower heater: 1200W Bottom heater: 2400W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 410x370mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 570*610*570mm
- Net weight: Approx 33KG
l Three independent heaters all can set 8 segments heating, cooling and constant temperature, save up to tentemperature profiles. IR preheat area can be controlled according to PCB size
l K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
l Moveable heater, easy to operate.
l Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
l V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
l Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
l Sound hint system. There is an alarm before the completion of each desoldering and soldering.
|
|

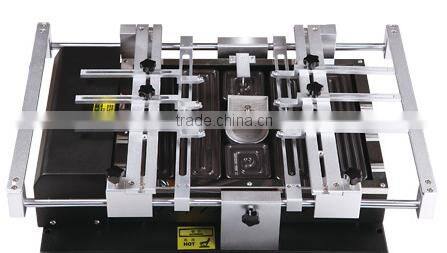

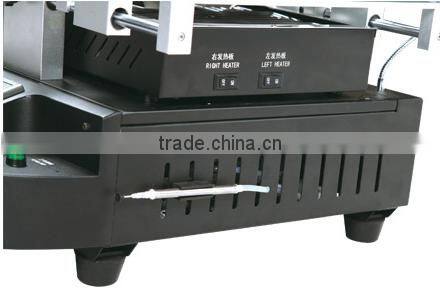

| pallet | vacuum pen |
|
|

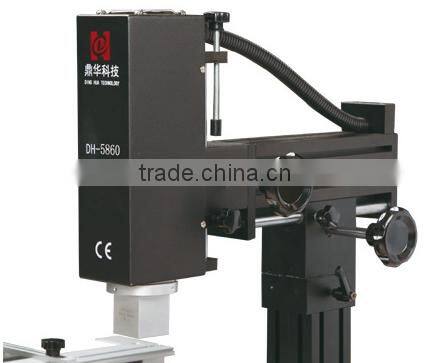

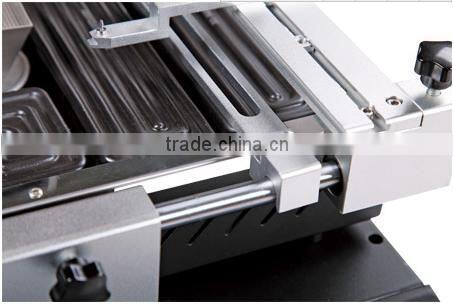

| support area | upper heater |
Our company:
FAQ:
Why bga can't solder on pcb?
There are two factors:
1. if Part of it can't solder, most likely that bga do not align with pcb perfectly.
2. if whole one can't solder, it is because heating temperature too low for it, you will need to raise temperature or prolong heating time.
What cause bubble on bga or pcb?
1.Moisture on pcb and bga will cause bubble when heating, so dry them with oven before soldering / desoldering.
2.Temperature too high for them can cause bubble as well. Lower temperature or shorten heating time.
Can solder ball reuse?
Solder balls should not be used again once they touch flux. Because they will easily stick together once touch flux.
The video link:
5830: http://youtu.be/LcI6ys-nYw0
Thank you for your time!
